Merivaara PRACTICO - 4.5.5 Side Tilt Motor Removal; 4.5.6 Side Tilt Motor Mounting; 4.5.7 Mattress Base Longitudinal Motor

22

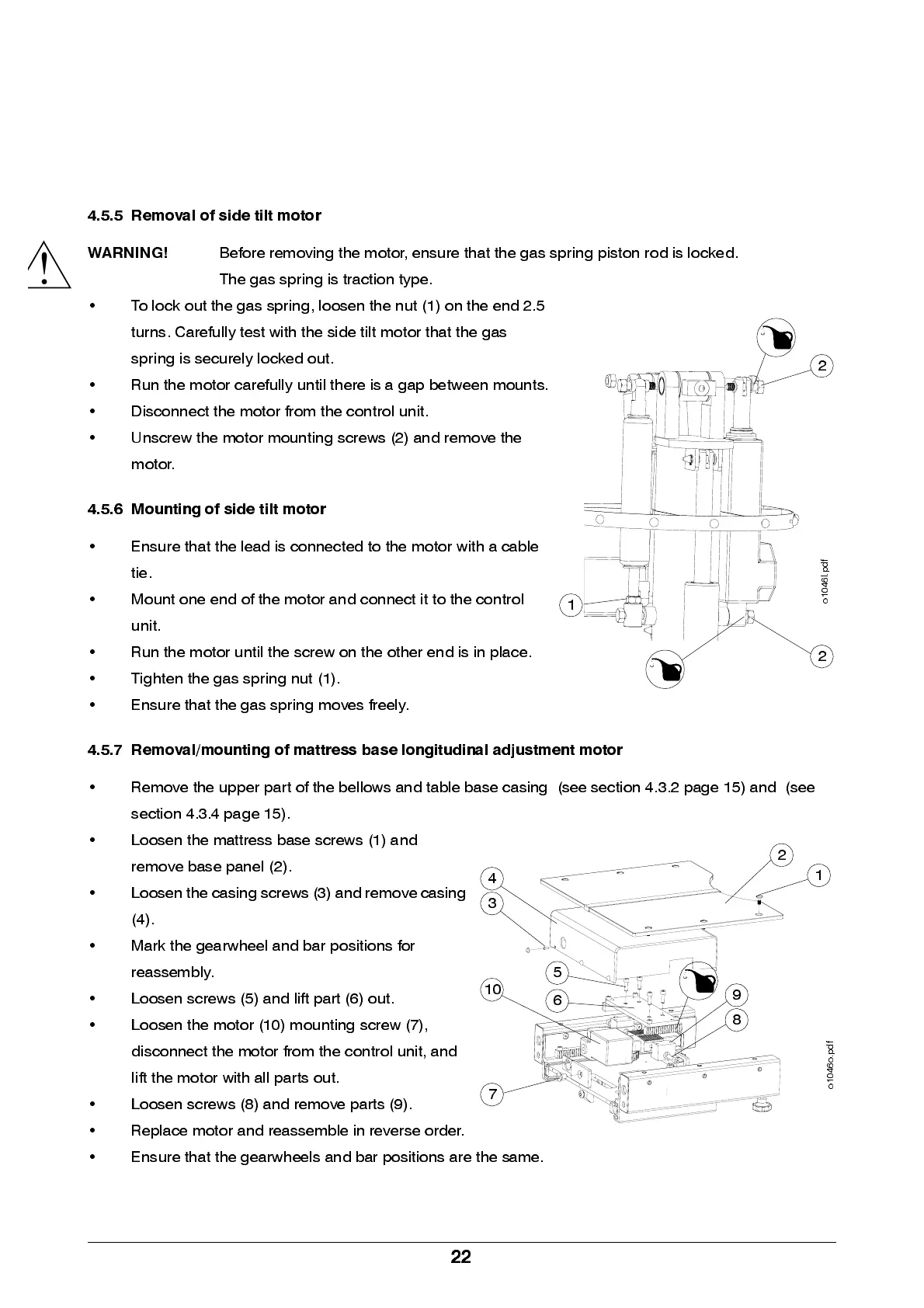

4.5.5 Removal of side tilt motor
WARNING! Before removing the motor, ensure that the gas spring piston rod is locked.
The gas spring is traction type.
• To lock out the gas spring, loosen the nut (1) on the end 2.5
turns. C arefully test with the side tilt motor that th e gas
spring is securely locked out.
• Run the motor carefully until th ere is a gap betwee n m o unts.
• D isconn ect the motor from the control unit.
• Unscrew the motor m ounting s crews (2) and rem o ve the
motor.
4.5.6 Mounting of side tilt m otor
• Ens u re tha t the le ad is con ne cted to th e motor with a cab le
tie.
• Mount one end of the motor and connect it to the control
unit.
• Run the motor unti l the screw on the other en d is in place.
• Tighten the gas spring nut (1).
• Ensure that the gas spring moves freely.
4.5.7 Removal/mounting of mattress base longitudinal adjustment motor
• Remove the upper part of the bellows and table base casing (see section 4.3.2 page 15) and (see
se ction 4.3.4 pag e 15).
• Loosen the mattress base screws (1) and
remove base panel (2).
• L oo sen t he ca sing sc r ews ( 3) a nd rem ove c asi ng
(4).
• Mark the gearwheel and bar positions for
reassembly.
• Lo ose n screw s (5) and lift pa rt (6) ou t.
• Loosen the motor (10) mounting screw (7),
disconnect the motor from the control unit, and
lift the motor with al l pa rts ou t.
• Loo sen screws (8) and remove parts (9).
• Replace motor and reassemble in reverse order.
• Ensure that the gearwheels and bar positions are the same.
!
