MERLYN 6 Series User Manual

FITTING WALL PROFILE
3

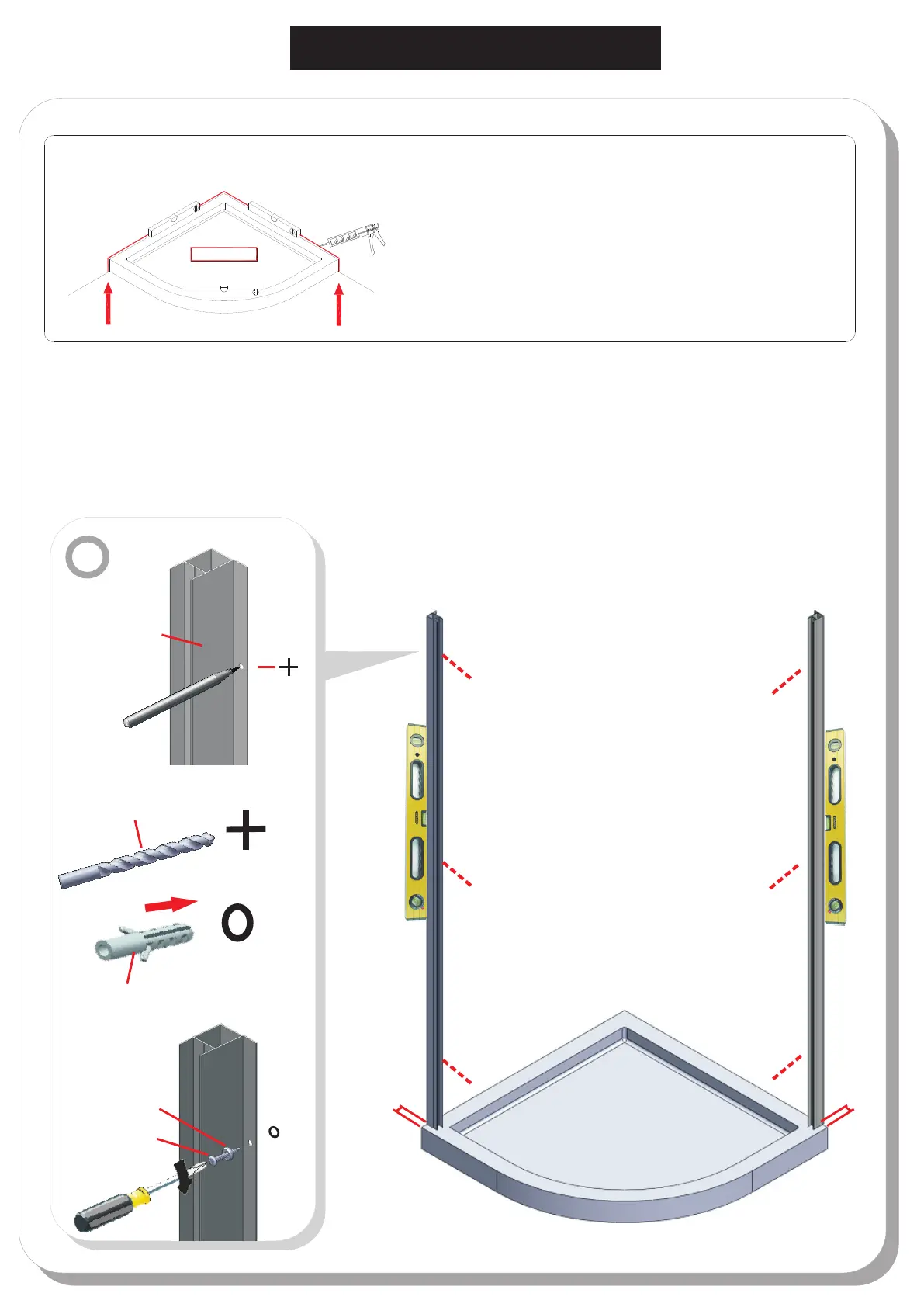

Step 1.
Step in wall profile 20mm from the front edge of the shower tray. Ensure wall profile is plumb
Do not silicone behind wall profile to wall, see sealing section.
Step 2.
Mark the position for fixing the wall profile to wall.
100％ Level
!
TRAY MUST BE 100% LEVEL IN ALL DIRECTIONS
Ensure the shower tray is level in all directions and is
properly sealed to the wall. The wall must be tiled down to
the top edge of the tray. Do not angle out bottom tile.
TRAY MUST BE SEALED FULLY AROUND WHERE THE
TRAY MEETS THE WALL.
PROCEDURE
2
0
m
m
2
0
mm
2
V6113
Inside
∅6mm masonay
drill bit
V4111
V2114
Inside
S6S01

MERLYN 6 Series Specifications

General

Glass Thickness	6 mm
Style	Modern
Warranty	Lifetime
Finish	Chrome
Type	Shower Enclosure
Material	Glass, Aluminium
Installation Type	Wall Mounted
