MERLYN 6 Series User Manual

6
Bottom
roller
Bottom
rail
S6LC8433
(shorter seal)
S6LC83291871
(longer seal)
Outside
15
Step 10.
Hang the moving panel to the
top rail, then push the bottom
rollers to bottom rail.
Step 13.
If the moving panels are not closing correctly, or there
is any gap between the magnets,
loosen the screw on the top roller to adjust them.
Note: Adjust top rollers also to ensure bottom rollers
are running properly in the bottom track.
FINISHING
Inside
Top roller
Top rail
push
down
10
Ensure the top rail is level
then go on to step 12
14
V2101L/R
V2104
V6115
12
V4110
V2114
Top roller
Inside
S6HDLEP7
S6HDLEP7
S6HDLEP6
S6HDLEP1
S6HDLEP3
S6HDLEP4
S6HDLEP2
S6HDLEP5
11
V2115

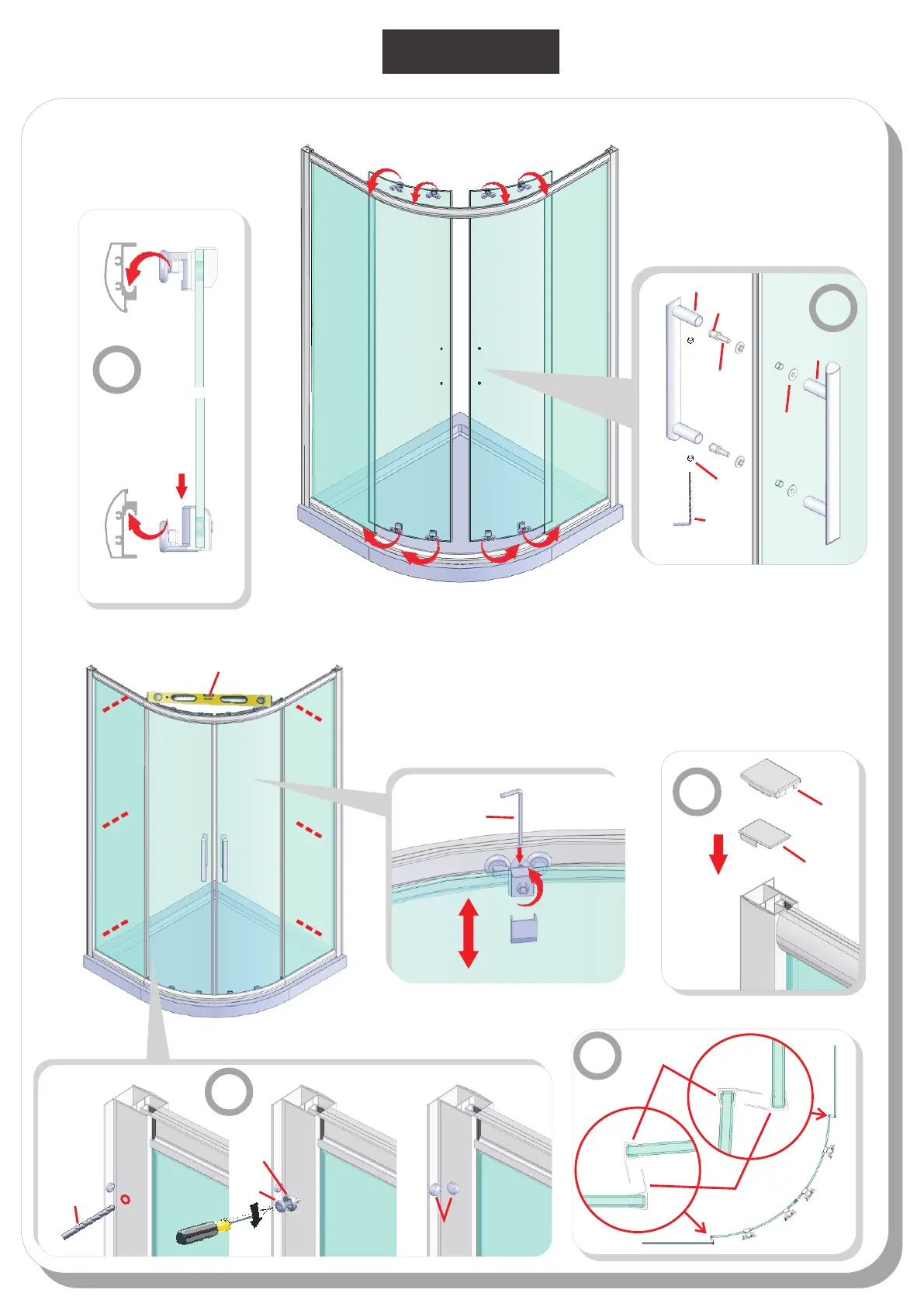

Step 12.
Drill through upright and wall profile
in 3 places, top to bottom as shown.

MERLYN 6 Series Specifications

General

Glass Thickness	6 mm
Style	Modern
Warranty	Lifetime
Finish	Chrome
Type	Shower Enclosure
Material	Glass, Aluminium
Installation Type	Wall Mounted
