MERLYN 6 Series User Manual

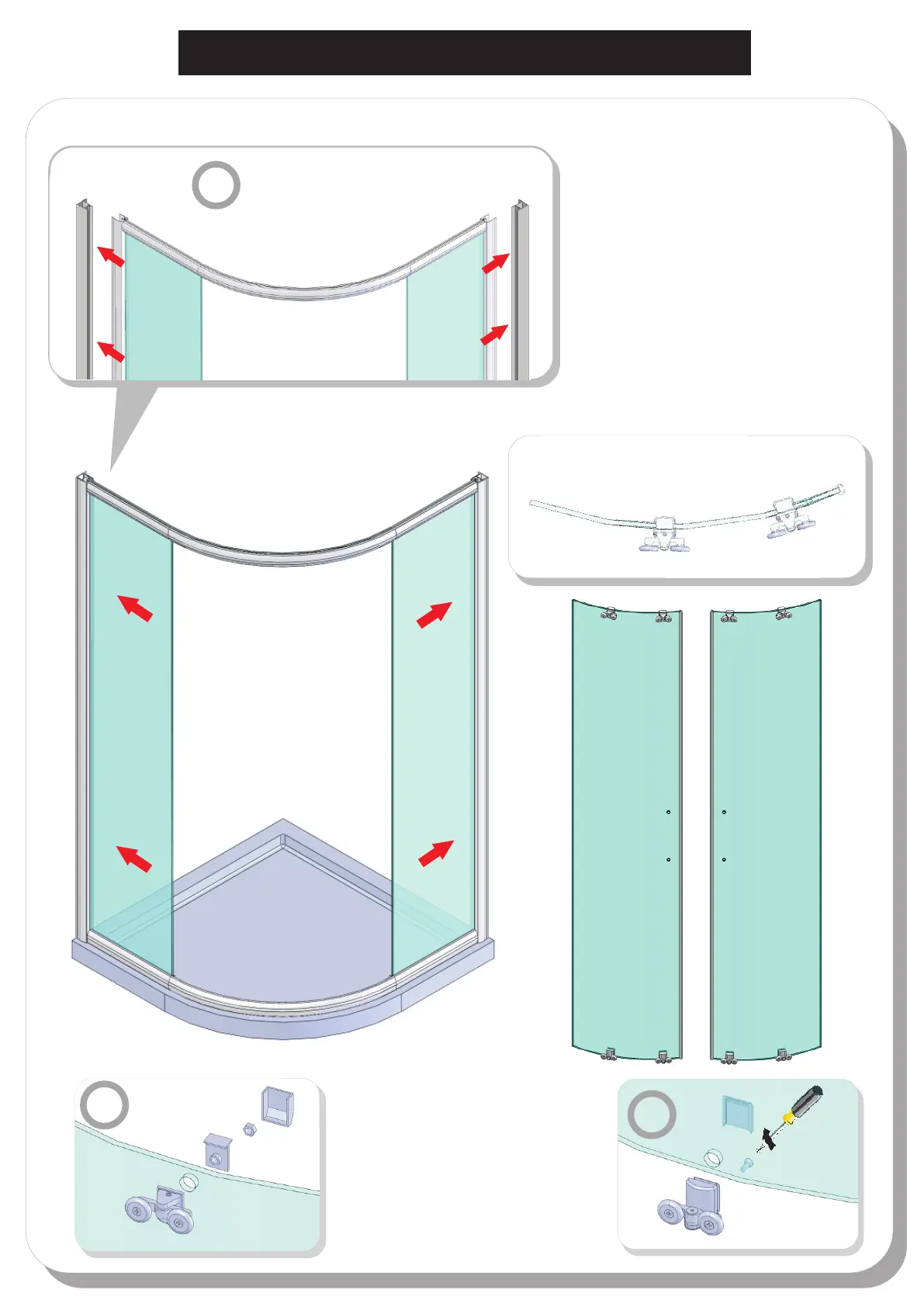

FITTING DOOR PANELS AND ROLLERS
5
Step 7.
Position the assembled frame onto the
tray and into the wall profile.
In a situation where you are close
to the minimum adjustment, fit only 1 wall
profile to the wall and put the second wall
profile into the frame, position the frame
onto the tray and then fix the second wall
profile to the wall.
NOTE:
Moving panel
Step 8.
Assemble the top rollers using
spanner.
Step 9.
Assemble the bottom rollers using
.
Bottom rollers has
spring for easy clear function.
screw driver
Important:
Top roller
8
Ensure the rollers are fitted in the
correct position.
Bottom roller
Outside
7
9
