6.3 Electrical installation requirements
Circuit Breakers
Establishments with standard (Type ‘B’) circuit breakers are sensitive to ‘surges’ which occur on
switching on freezers, refrigerators and other catering equipment, including microwave combination
ovens. Because of this, a Type ‘D’ circuit breaker (designed specifically for this type of equipment) must
be fitted. An individual, suitably rated circuit breaker should be fitted for each appliance installed.
Low impedance electrical supply
This commercial combination microwave oven complies with EN 61000-3-11. However, when con-
necting sensitive equipment to the same supply as the appliance, the user should determine in con-
sultation with the supply authority, if necessary, that a low impedance supply is used.
Electrical supply
UK models are fitted with a blue 32 A plug to IEC 60309 (EN
60309).
The circuit breakers should be rated at 32 A for 32 A and 16 A
for 16 A plug configurations and be Time Delay, Motor Start
Type (European Type D).
UK 13 A models are fitted with a moulded plug to BS1363,
fused at 13A.
EU 16 A models are fitted with a moulded plug to CEE 7/7
(Type F Schuko) rated at 16 A.

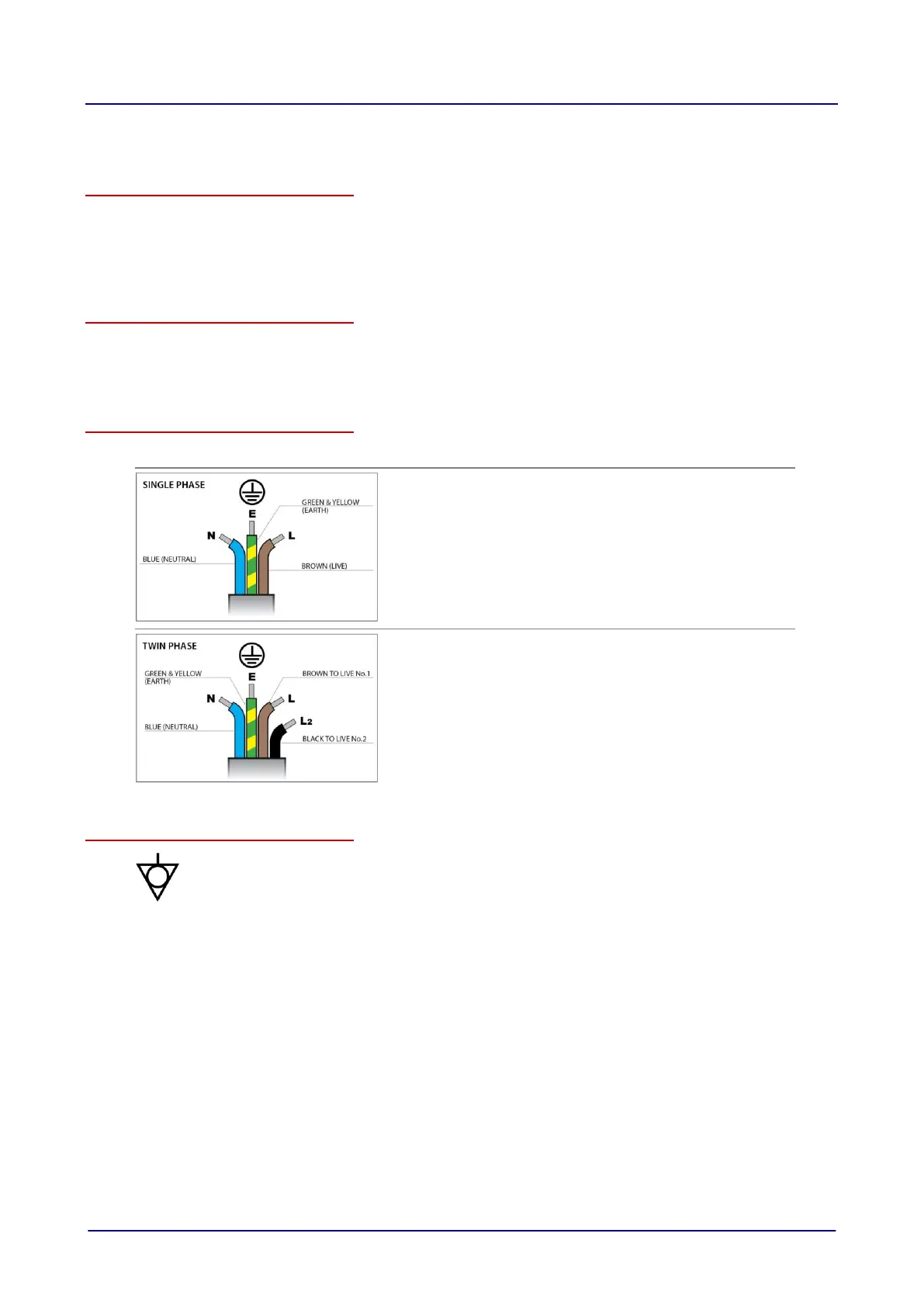

Twin Phase models should be connected as shown.
Circuit Breakers should be rated at 20 A or higher per phase
and be Time Delay, Motor Start Type (European Type D).
Equipotential bonding
An Equipotential Bonding point is provided on the rear panel of the appliance for independent Earth
(GND) connection.
