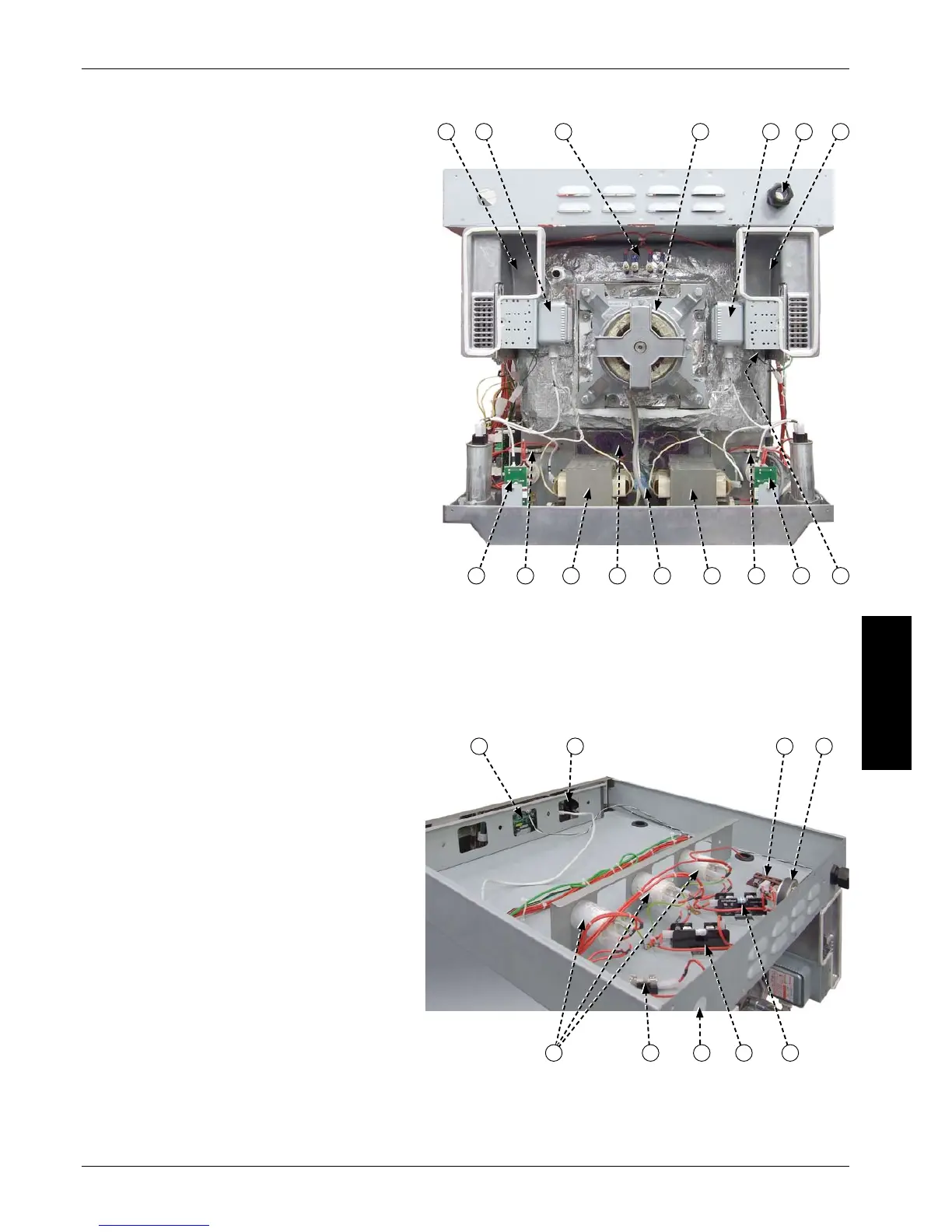

51 11 33 65 11 24 52
62 2 85 64 9 85 2 62 13
17 6 21 40
10 5 27 7 7
51 Magnetron cooling duct RH
11 Magnetron
33 Heater element x2 (connectors shown)
65 Motor assembly convection fan
24 Gland Power supply cable
52 Magnetron cooling duct LH
62 HT Diode assembly PCB
2 Fuse HT Transformer (10A)
85 Transformer
69 Cooling fan motor
9 Capacitor 2µF (Blue) motor start
13 Overheat stat Magnetron
17 BTS Touch Screen PCB
6 Switch oven ON/OFF (rear connection)
21 Connector Terminal block Mains power supply
40 Speaker unit
10 Filter 16A
5 Fuse Control circuit (7A)
27 Ethernet port
7 Fuse (20A)
