88 Meru Access Point Installation Guide © 2010 Meru Networks, Inc.
Unpacking the OAP180
Unpacking the OAP180

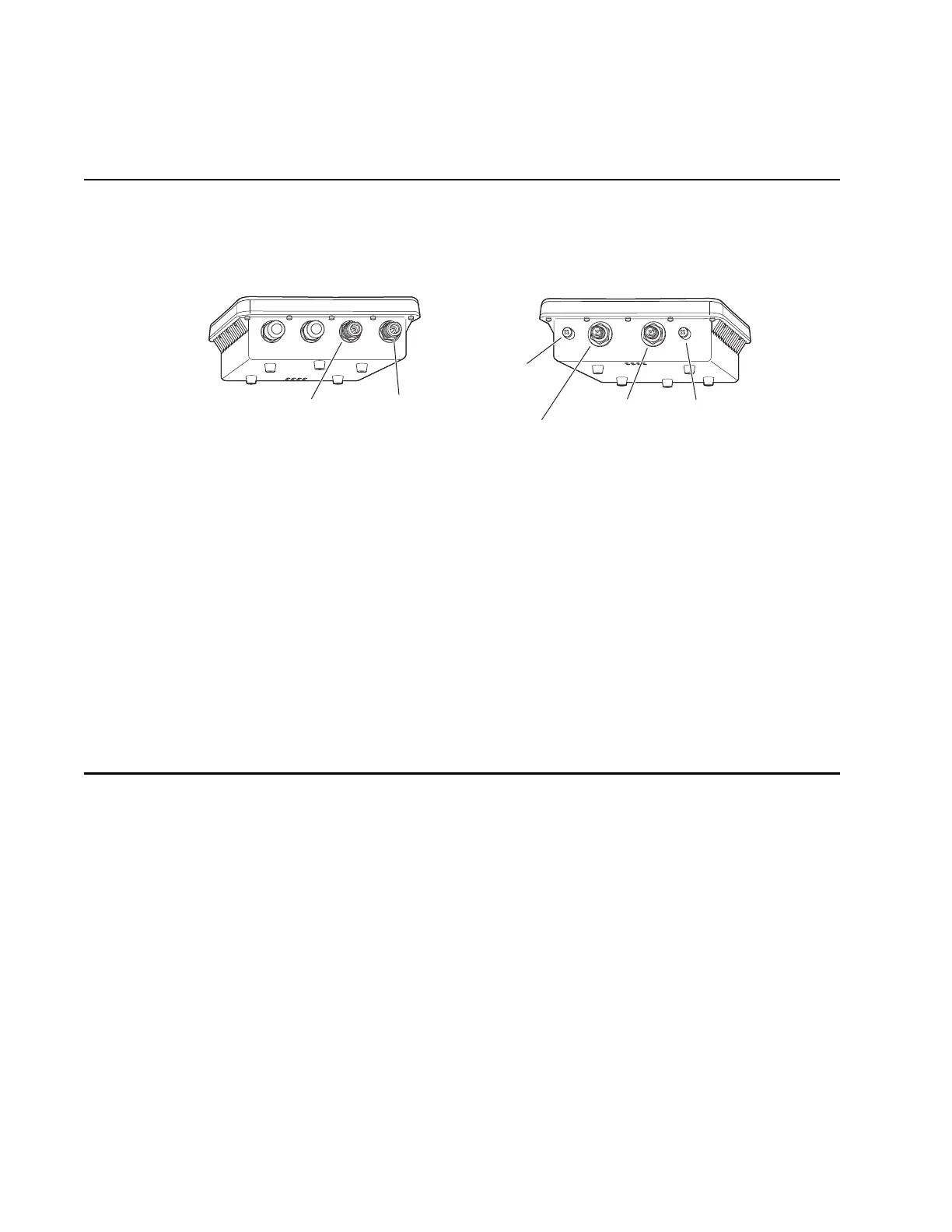

Figure 34: OAP180 Outdoor Access Point
Confirm that the OAP180 shipping boxes contain the following items:
OAP180 Outdoor Access Point
Wall/Pole Mount Hardware Kit for mounting OAP180 to a 2” to 3” diameter steel
pole or tube or as part of a radio or tower structure
N-Type Female connectors for external antennas
Outdoor CAT5 Ethernet cable—100 feet. Be sure to include this (maximum) 100
foot cable in link path calculation; the PoE does not resend the traffic, it only
provides power.
Power injector with power cord
Installation Requirements
In addition to the hardware supplied by Meru Networks, you need the following:
Required
Standard Ethernet cable to connect the power injector to a switch or controller
Antennas (sold separately)
Ground wire for the OAP180 Optional
RF coaxial cable to connect the antenna to the OAP180
00195
Top panel view Bottom panel view
Console
Port
Console
Port Cover
Attachment
Ethernet/PoE
Connector
2.4G 2.4G5G 5G
N-Type External
Antenna Connector
(5 GHz)
N-Type External
Antenna Connector
(2.4 GHz)
Console PoE
Water-Tight
Test Point
