Installing the Access Points
© 2010 Meru Networks, Inc. Installing AP150 77
Horizontal Mounting
To horizontally mount an AP150:
1. Place the AP150 flat on the horizontal surface.
2. For each antenna, loosen the knurled ring at the base of the antenna (see
Figure 28), point the antenna straight up, then retighten the ring.

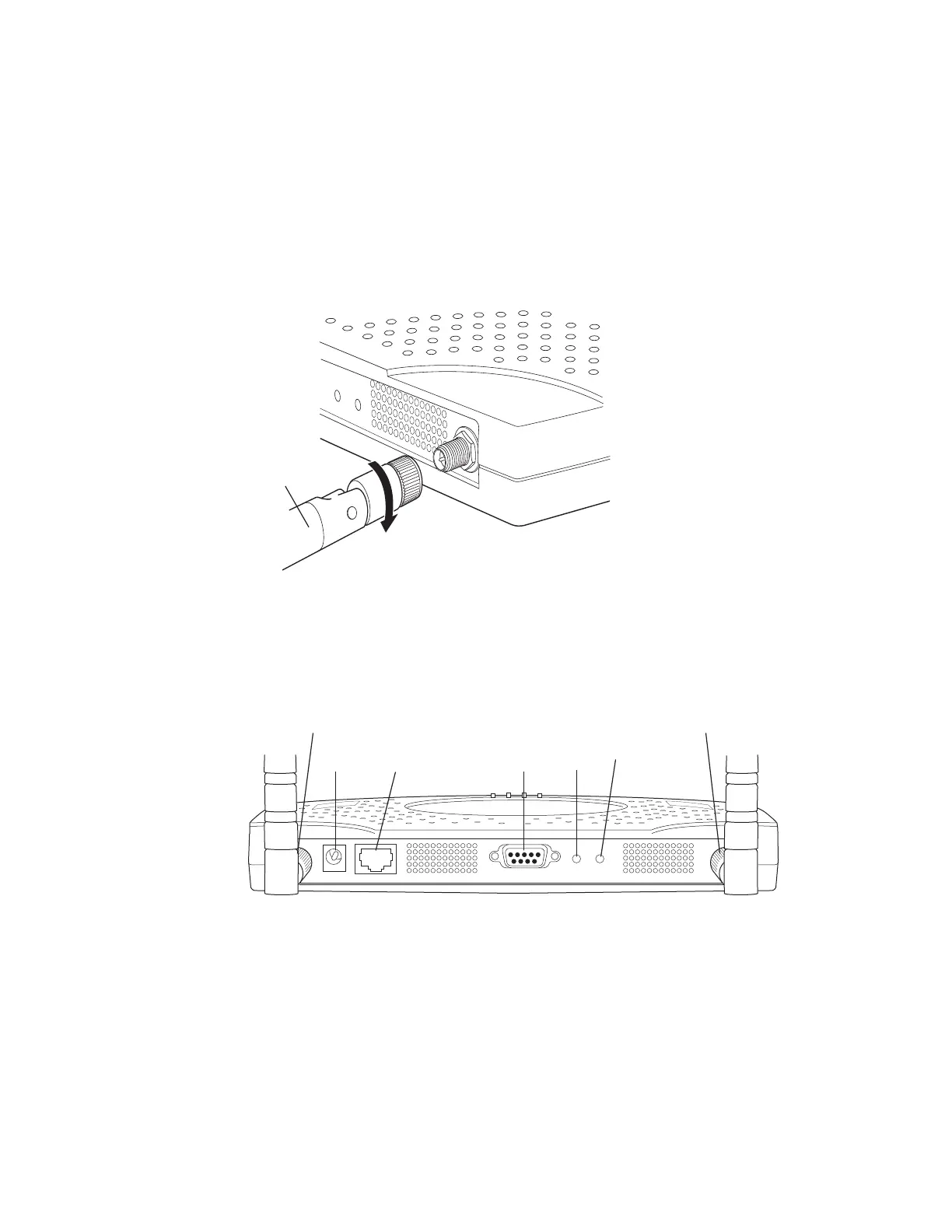

Figure 28: AP150 Antenna Connection
3. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet
connector, shown in Figure 29.
Figure 29: AP150 Connector Panel
Vertical Mounting the AP150
To perform a simple wall mount using the keyholes on the back of the AP150:
1. Remove the attached mounting bracket from the back of the AP150.
00172
ANT 2
RELOAD
RESET
Turn clockwise
to tighten
Antenna
ANT1 ANT2
LAN
DC 5V
CONSOLE
RESET RELOAD
0
0173
Power Ethernet
connection
Console
port
Reset
button
Reload
Antenna 1 Antenna 2
(reserved)
(reserved)
