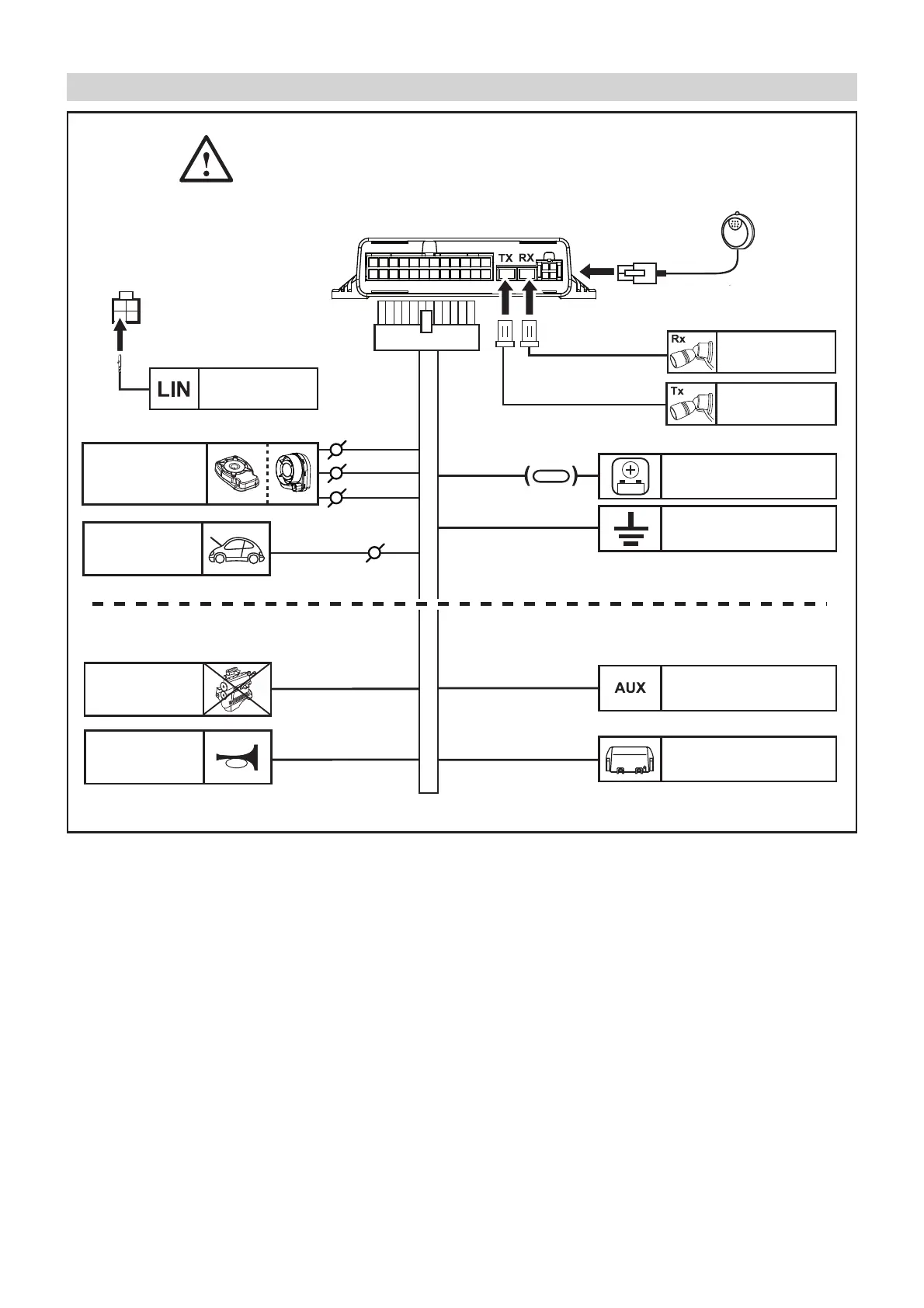

OPERATION BY LIN BUS CONNECTION: Electrical connection suggestions
Fig. 4
NOTE: If the OPT Electronic Key
is installed, for the White/Black wire
LIN connection follow the diagram
in the Electronic Keys chapter.
NEGATIVE
COMMAND
HORN RELAY
POSITIVE COMMAND
AUXILIARY MODULES
POSITIVE ALARM
INPUT
PURPLE
(13)
(11)
(10)
BLACK
RED
POSITIVE
BATTERY (+30)
EARTH
SENSOR FOR
VOLUME
PROTECTION
(RED)
SENSOR FOR
VOLUME
PROTECTION
(BLACK)
AUX CONNECTIONS
BROWN
DARK BLUE
YELLOW
PINK
MOUNT
15A FUSE
ENGINE
IMMOBILISATION
(1)
(19)
(22)
(12)
(23)
(15)
(8)
BODY
SIREN
PRE-WIRING
( g. 26/27/28/29)
PRE-WIRING
FOR BONNET
PROTECTION
( g.14)
