Meta System META EVOCAN - Light Blue

22
If necessary for alarm operation modality decided and in function of the vehicle type, it is possible to monitor the
bonnet, doors, boot by three dedicated analogic inputs lines.
For each line is available a speci c alarm memory feedback, for this reason we suggest to pay attention for the correct
connections avoiding to reverse them.
When the M07 Wireless Siren is used the monitor of the bonnet opening is transmitted to the META EVOCAN
control unit directly via Bluetooth (see sirens chapter).
We recommend following what is described in the Meta System application technical sheets.

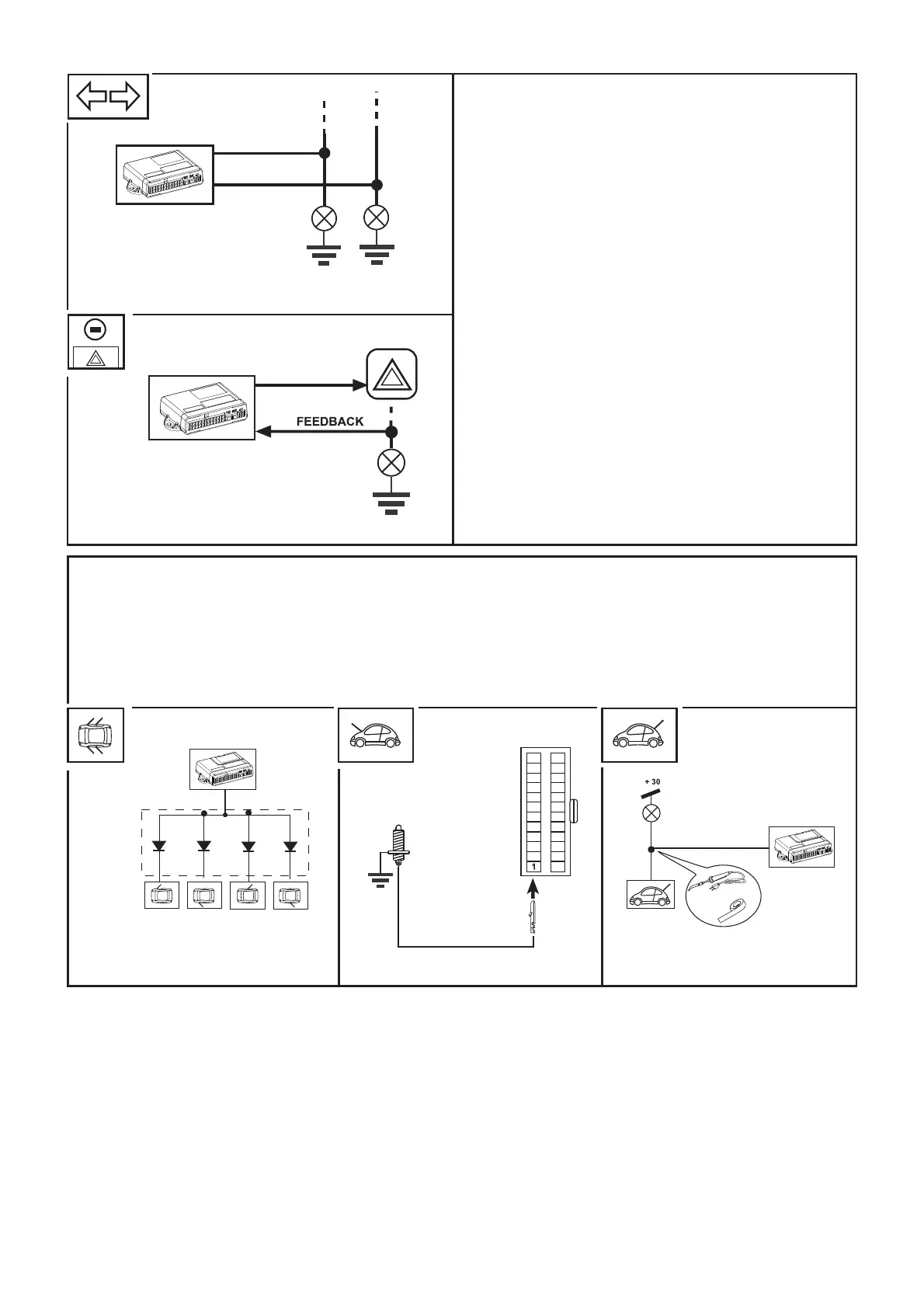

Fig. 11
Fig. 12
If necessary for alarm operation modality decided and in
function of the vehicle type, make the connections for
driving the direction indicators during the alarm phase
and signals.
This product drives the direction indicators with positive
signals connected directly to the lamps (Fig.11) or with
negative signals directly to the Hazard Warning Light
button on the vehicle (Fig.12).
META EVOCAN has the extension  ashing function
active for which the direction indicators  ash even for 25
seconds after the end of the sounding alarm; if you want
to deactivate it, you must select OFF using the PRG007
PROGRAMMER.
NOTE: the driving function with positive signals to the
lamps is NOT available for EVOCAN NO PWR products.
We recommend following what is described in the Meta
System application technical sheets.
Fig. 13
+
Fig. 14 Fig. 15
LIGHT BLUE
LIGHT BLUE/GREEN
LIGHT BLUE/GREEN
LIGHT BLUE
CONTROL
M134 DIODE
MODULE OR
1N4002 (X4)
ORIGINAL
DOOR
SWITCHES
MOUNT
BOOT
PROTECTION
SWITCH
PURPLE
COURT LIGHT
IN BOOT
ORIGINAL
BOOT
SWITCHES
PURPLE
GREEN
