23
Fig. 17
Fig. 16

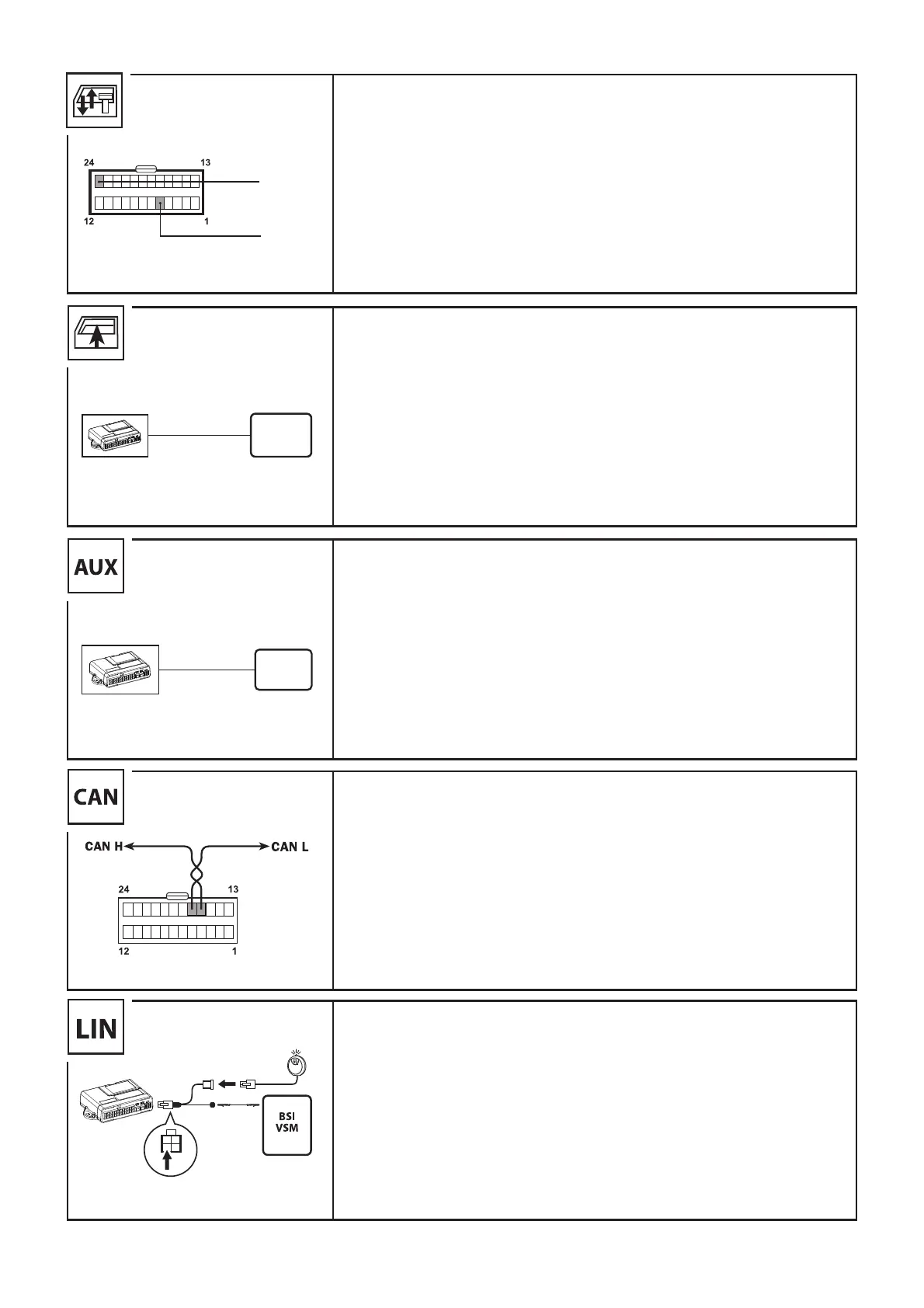

If necessary for alarm operation modality decided and in function of the
vehicle type, it is possible to drives the central door locking system by two
negative commands 0,5 sec long.
It is also possible to change the command times by the PRG007
Programmer - step 4.
Through steps 10 and 11 it is possible to activate the WINDOW LIFTER and
DEAD LOCK functions, used in obsolete vehicle platforms.
We recommend following what is described in the Meta System application
technical sheets.
If the vehicle technically allows it, via the PINK/BLACK wire, it is possible to
drive an auxiliary window module.
The EVOCAN unit can drive it by a positive output command of 12 sec long.
It is possible to inhibit the output by pressing the LED BUTTON before
arming the alarm.
We suggest to carefully check technically the possibility of this auxiliary
module pairing.
Fig. 18
If it is necessary to combine an auxiliary protection module, it is possible
to drive it via the PINK wire which provides a positive signal for the entire
alarm time armed.
A positive signal on the YELLOW wire will trigger the alarm coming from
the auxiliary protection module.
Fig. 19
Connection usable only in the CANBUS system con guration.
The CANBUS connection allows META EVOCAN to have all the digital
information necessary to manage the safety control of the vehicle.
To permit the correct behavior the META EVOCAN unit must be correctly
programmed by the PRG007 Programmer.
It is strongly recommended to strictly follow what is described in the Meta
System application technical data sheets.
Fig. 20
Connection usable only in the LINBUS system con guration.
The LINBUS connection permit META EVOCAN to have all the information
necessary to manage the vehicle protection and possibly to control some
functions, e.g. turning indicators.
To allow all this, META EVOCAN must be correctly programmed using the
PRG007 Programmer.
It is strongly recommended to strictly follow what is described in the Meta
System application technical data sheets..
AUX
MODULE
PINK
PINK/BLACK
WINDOW
CONTROL
MODULE
OPEN
CLOSE
(24)
(5)
