Meta System META EVOCAN - Page 25

25
Fig. 24

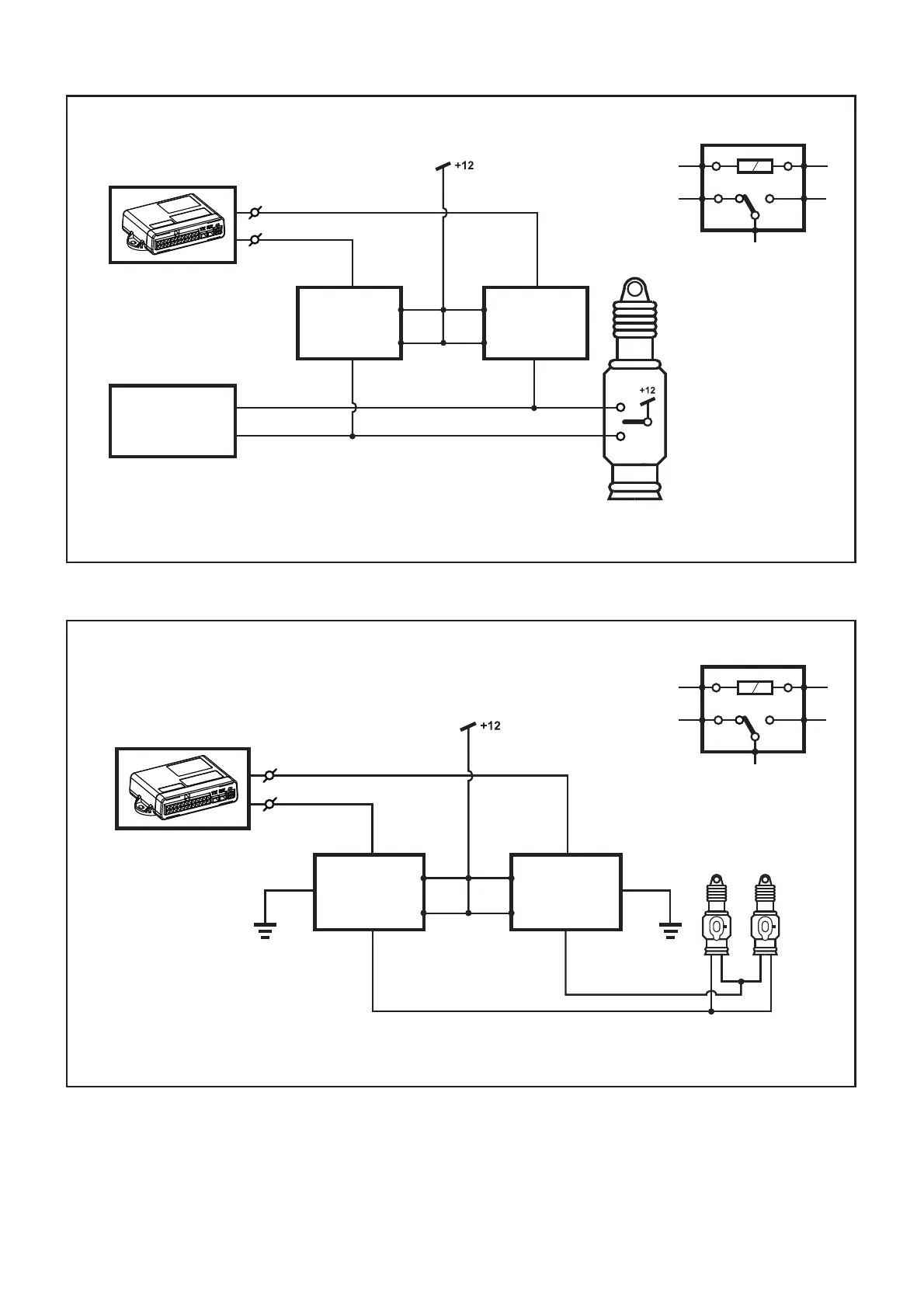

DIAGRAM FOR POSITIVE CLOSING
85
87A
86
87
30
RELE’ EXT.
24
5
85 85
30 30
86 86
87 87
24
5
85 85
87 87
86 86
30 30
87A 87A
ORIGINAL DRIVER
DOOR ACTUATOR
WITH
BUILT-IN
CHANGEOVER
SWITCH
ACTUATORS
OPEN
CLOSE
OPEN
CLOSE
OPEN
CLOSE
CLOSING
RELAY
OPENING
RELAY
ORIGINAL
DOOR LOCKING
CONTROL UNIT
CLOSING
RELAY
OPENING
RELAY
Fig. 25
ADDITIONAL ACTUATOR CONTROLS DIAGRAM
85
87A
86
87
30
RELE’ EXT.
