Das Lagersystem
28

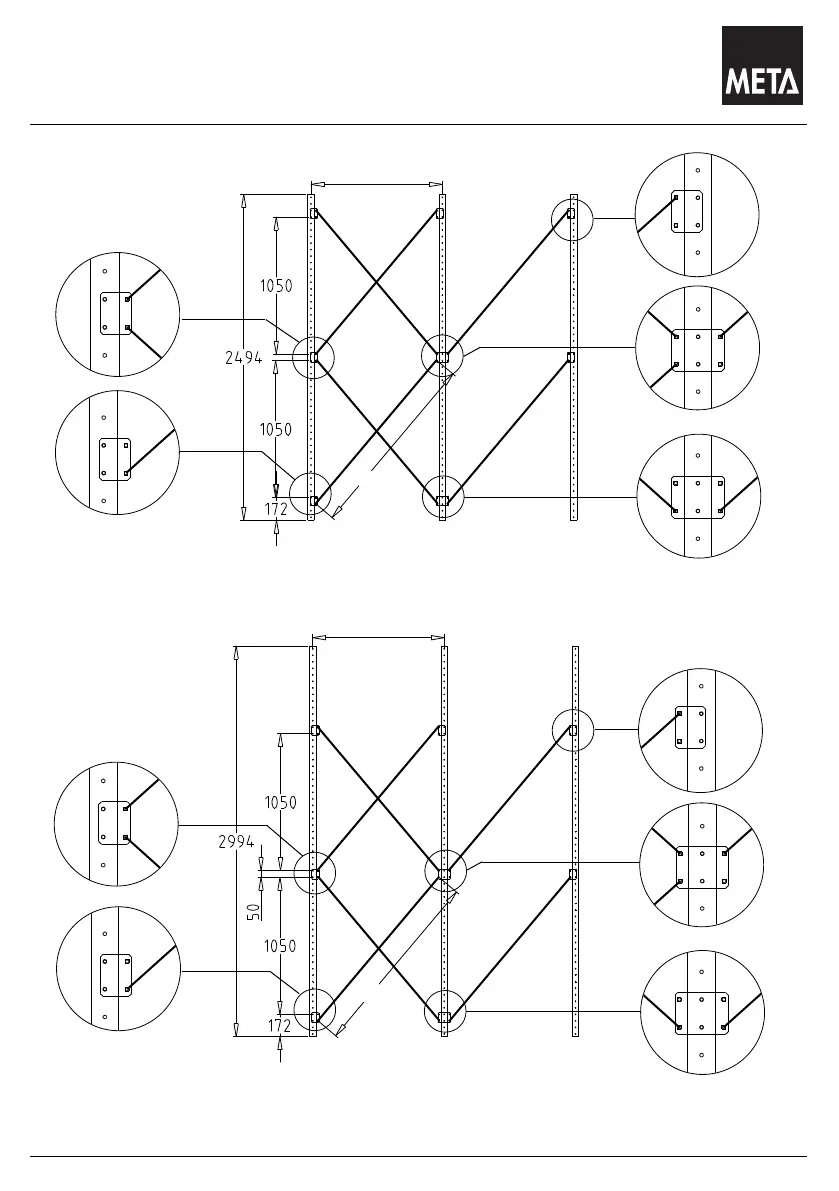

Spannverstrebungen, Doppelregale
Stabilising supports, Double rack
Entretoises de tension, Rayon double
2500 x 1000 / 1300
3000 x 1000 / 1300
L
L
GR
AR
GR
AR
GR = Grundregal / Basic rack / Rayonnage de base
AR = Anbauregal / Rack extension / Rayonnage rapporté
X
X
