Metabo HC 260 M User Manual

2.1
HC 260 M/ HC 260 K
Machine Overview
1
2
34 5
6
7
8
9
10
11
12
13
14
15
16
17
1819
20
21

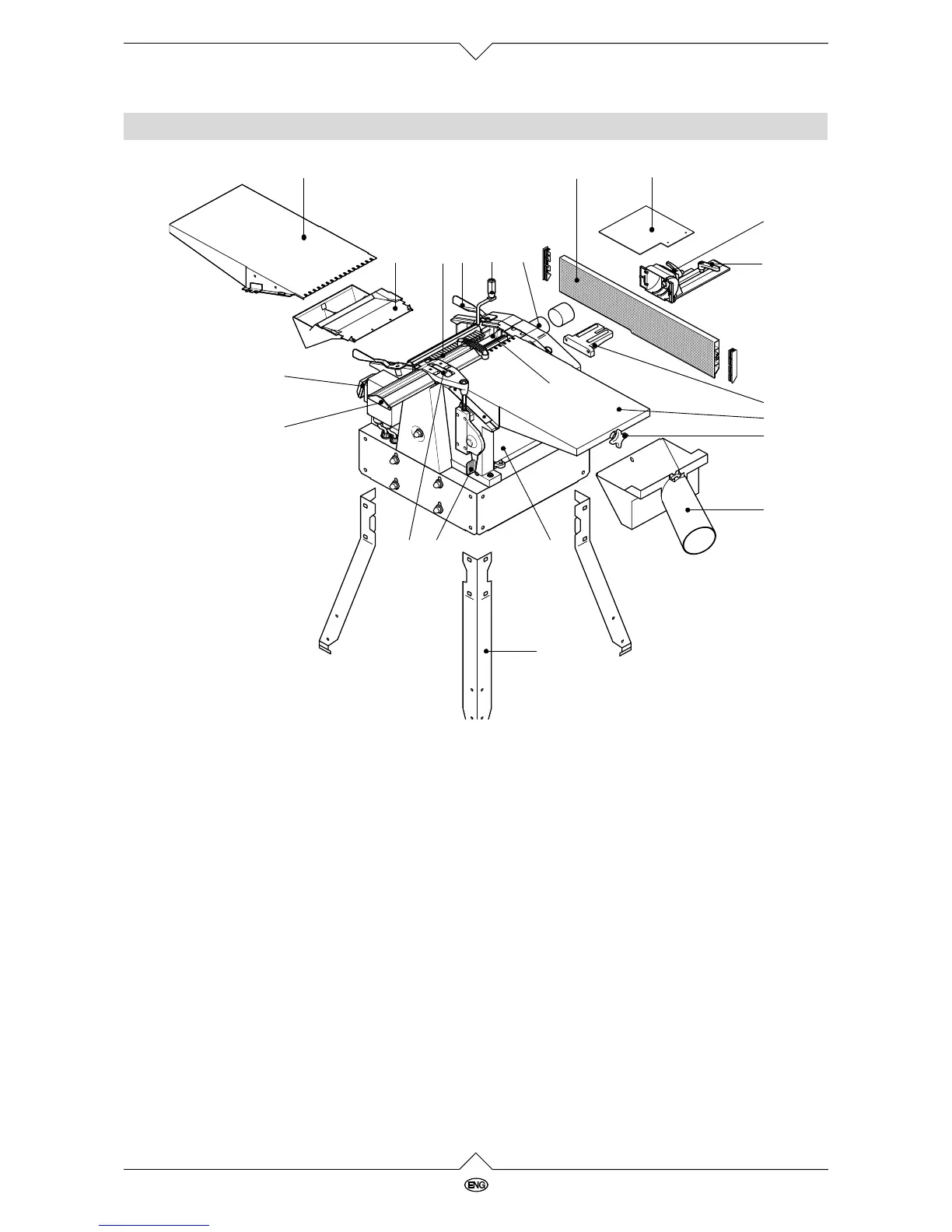

1 Outfeed table
2 Chip chute
3 Anti-kickback lock
4 Lock lever for outfeed table
5 Height setting of thicknesser bed
6 Receiver for morticing bits (morticing bits
are not standard delivery)
7 Jointer fence
8 Cover plate
9 Ratchet lock lever, fence tilt
10 Ratchet lock lever, fence lateral adjust-
ment
11 Fence carrier
12 Infeed table
13 Height setting of infeed table
14 Dust collector connector
15 Legs (model HC 260 M only)
Model HC 260 K has cabinet-style stand
(separate instructions)
16 Thicknesser bed
17 Cutterblock
18 Height setting of cutterblock guard extru-
sion
19 Lock lever, lateral setting of cutterblock
guard extrusion
20 Cutterblock guard extrusion
21 On/off switch
Standard accessories:
Open-ended spanner 10 mm
Allen key 3 mm
Planer knife setting gauge
Anti-seize compound for planing bed sur-
faces
