Metabo KS 216 Lasercut User Manual

ENGLISH
16

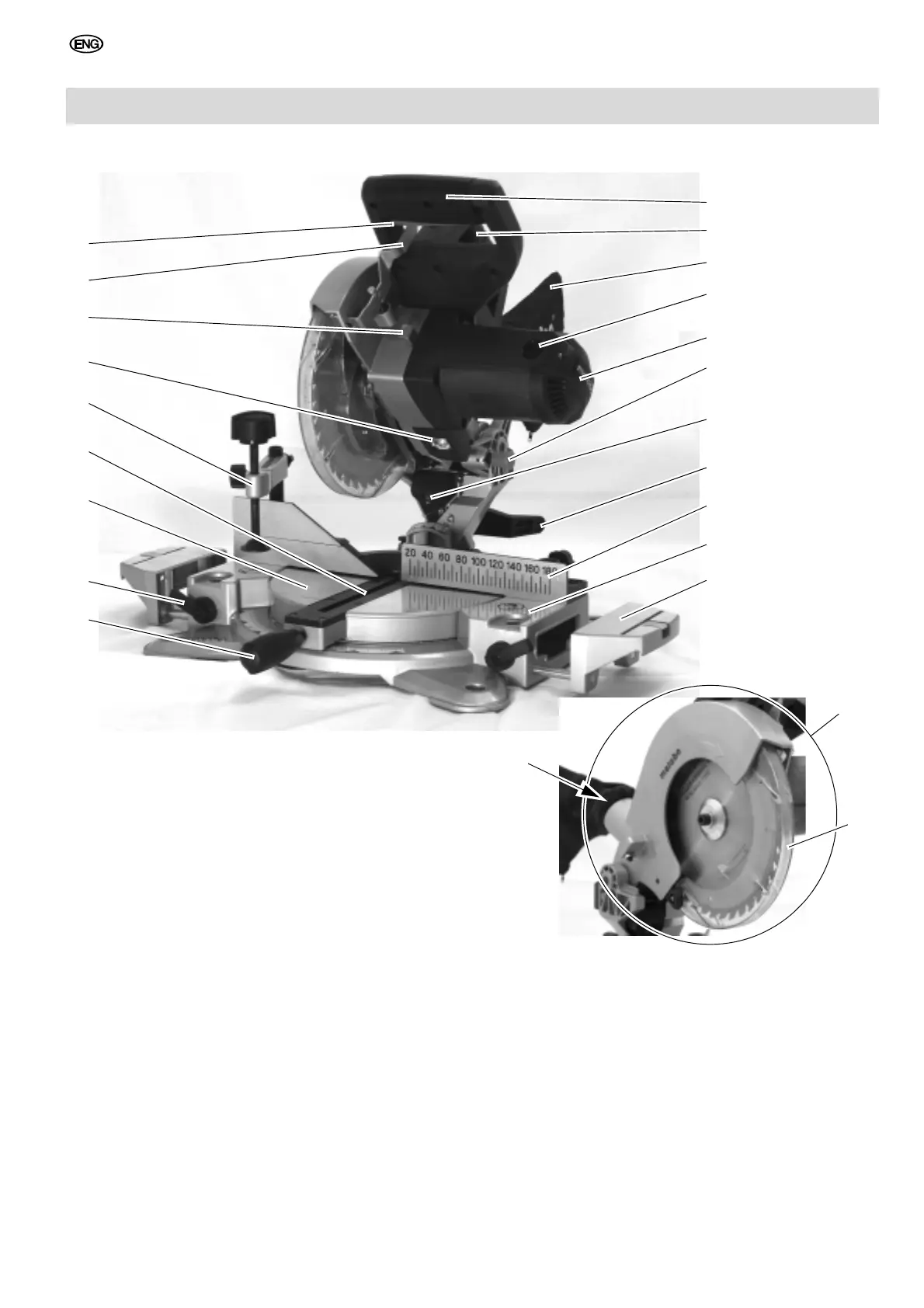

1. Parts Identification (standard delivery)
1
2
3
5
6
7
8
9
10
11
12
14
16
17
18
20
4
19
21
22
15
23
13
1 Handle
2 Carrying handle
3 Chip bag
4 Carbon brushes
5 Motor
6 Transport locking pin
7 Laser outlet
8 Sawhead tilt lock lever
9 Fence
10 Saw base
11 Table side extension
12 Lock screw for rotating table
13 Stop lever for table extension
14 Rotating table
15 Table insert
16 Work clamp
17 Cutting area illumination
18 Saw blade stop
19 Safety lock
20 Saw ON/OFF switch
21 Sawhead
22 Retractable blade guard
23 Dust extraction adapter
Tools
– Allen key (6mm)
Machine documents
– Operating instructions
– Spare Parts List
I_0010en3A.fm 4.11.09 Original operating instructions
for the crosscut saw

Metabo KS 216 Lasercut Specifications

General

Input power	1350 W
Power source	AC
Blade bore	30 mm
Blade diameter	216 mm
Dust bag included	No
Saw blade included	Yes
Idle speed (max)	5000 RPM
Bevel setting (left)	45 °
Miter setting (left)	47 °
Bevel setting (right)	0 °
Cutting capacity 0°	120 x 60 mm
Cutting capacity 45° miter	80 x 45 mm
Dust extraction	-

Weight and Dimensions

Weight	9000 g
