Metasys UNT Series User Manual

UNT Controller—Unitary Controller (UNT) 51
Application Examples
All of the following examples were created by answering configuration
questions using HVAC PRO for Windows to identify terminal locations of
the inputs and outputs. Refer to the HVAC PRO for Windows User’s
Manual (FAN 637.5), the UNT Controller section, for detailed information
regarding controller configuration. The UNT110/111 series controller was
used in all examples.
Table 18: Fan Coil Parameters and Configuration Selections
HVAC PRO for Windows Parameters Configuration Selections
Heating Type
Common Heating/Cooling Coil
Lighting Integration
Yes
FCMECH
Return Air Discharge Air
TE
1
C
1
R
1
VA
1

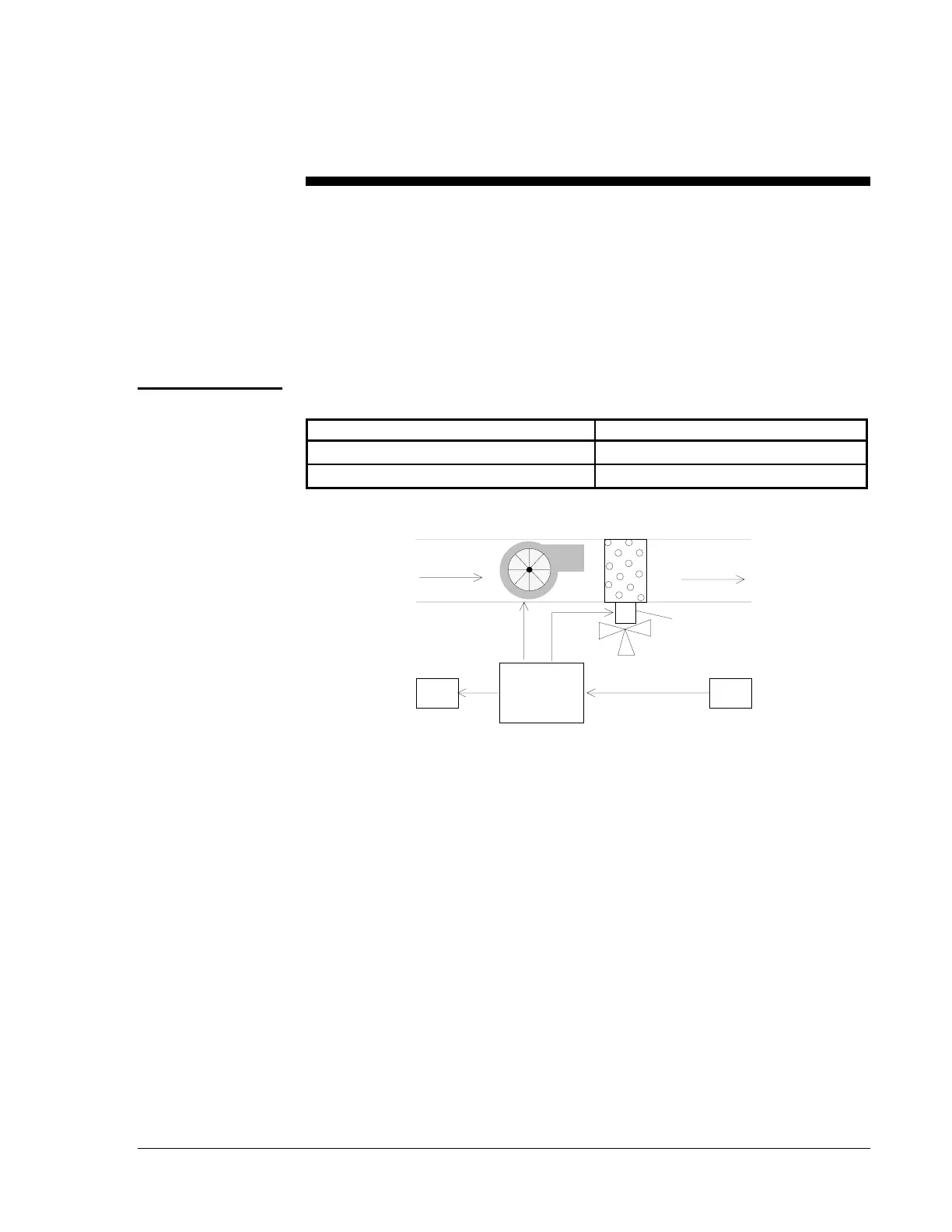

Figure 26: Fan Coil Mechanical Flow Diagram
Fan Coil
Applications
