REV. 1/18/2018 INST95-6532B
3
KIT ASSEMBLY
ISO DDIN radio provision

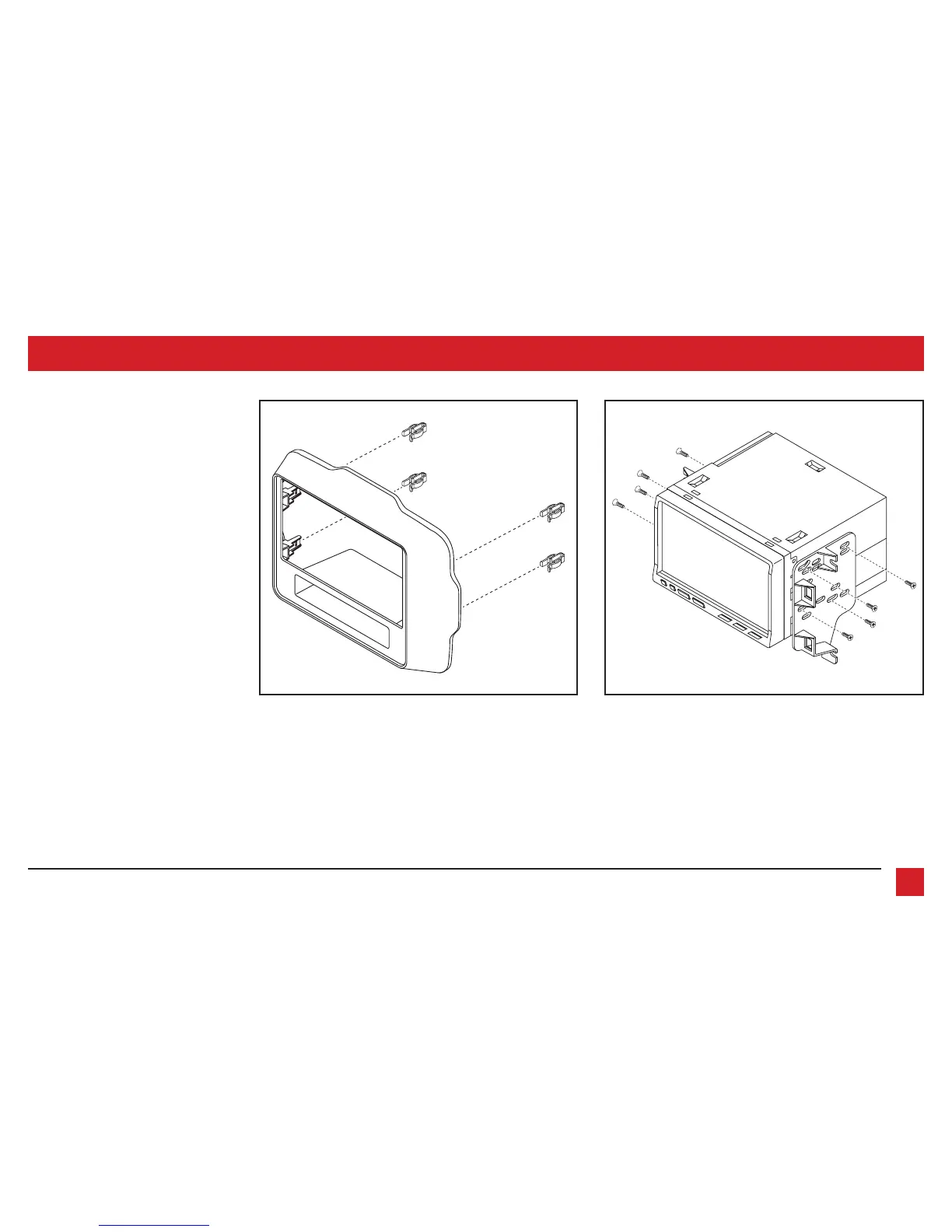

1. Attach the (4) supplied white
panel clips
to the
radio housing
. (Figure A)
2. Attach the
radio brackets
to the radio
using the screws supplied with the
radio. (Figure B)
3. Locate the factory wiring harness and
antenna connector in the dash, and
complete all necessary connections to
the radio. Metra recommends using the
proper mating adapter from Metra and/
or AXXESS. Test the radio for proper
operation.
4. Reassemble the dash in the reverse
order of disassembly using the 6532
radio trim panel
instead of the factory
radio panel.
(Figure A) (Figure B)
