KIT PREPARATION (CONT.)
(Figure A)

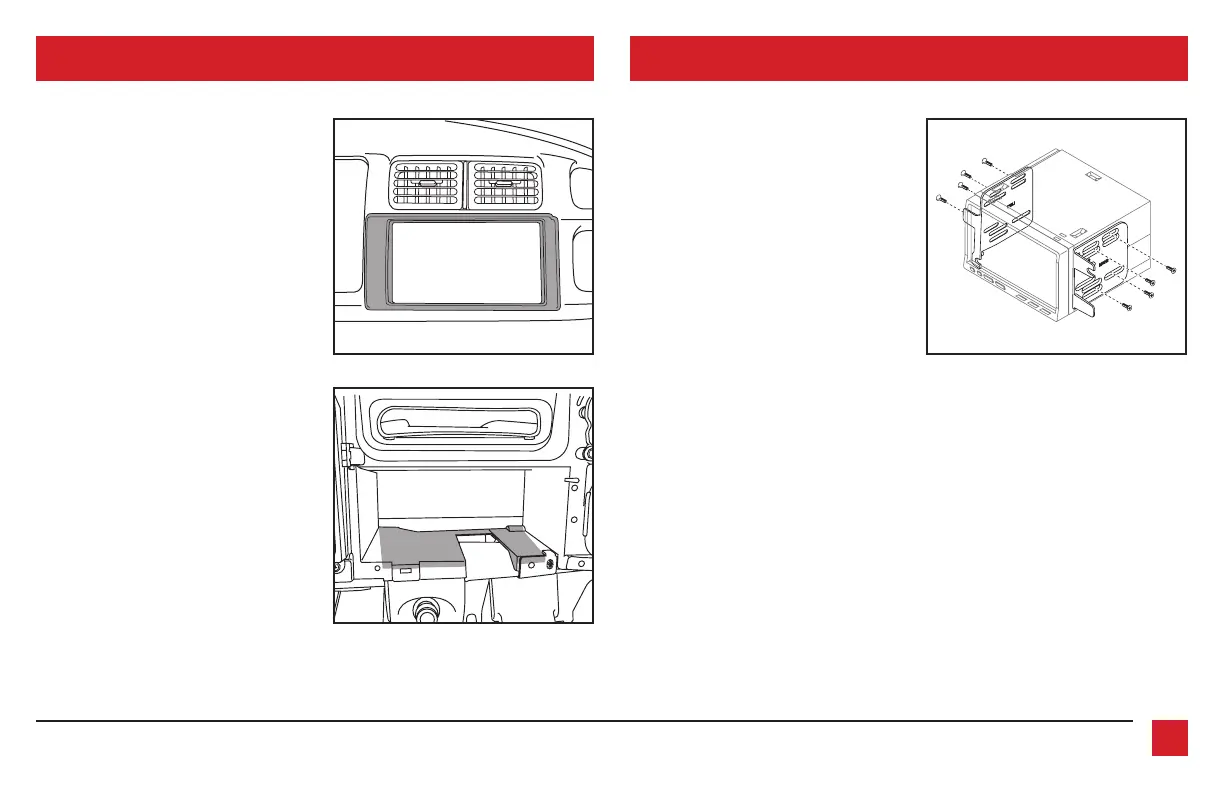

4. Clip the radio trim panel onto the
dashboard trim panel. (Figure C)
5. Cut the sub-dash to allow room for the
radio assembly. (Figure D)
Continue to Kit Assembly
1. Secure the radio brackets to the radio
using the screws supplied with the
radio. (Figure A)
2. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Metra recommends using
the proper mating adapter from Metra
and/or Axxess. Test the radio for proper
operation.
3. Secure the radio assembly to the dash
using the factory screws.
4. Reassemble the dash in reverse
order of disassembly to complete the
installation.
KIT ASSEMBLY
Remove shaded area
To Next Page
