Metra Electronics 99-3010S - Kit Assembly; DIN radio provision with pocket; ISO DIN radio provision with pocket

1.800.221.0932
|
MetraOnline.com
4

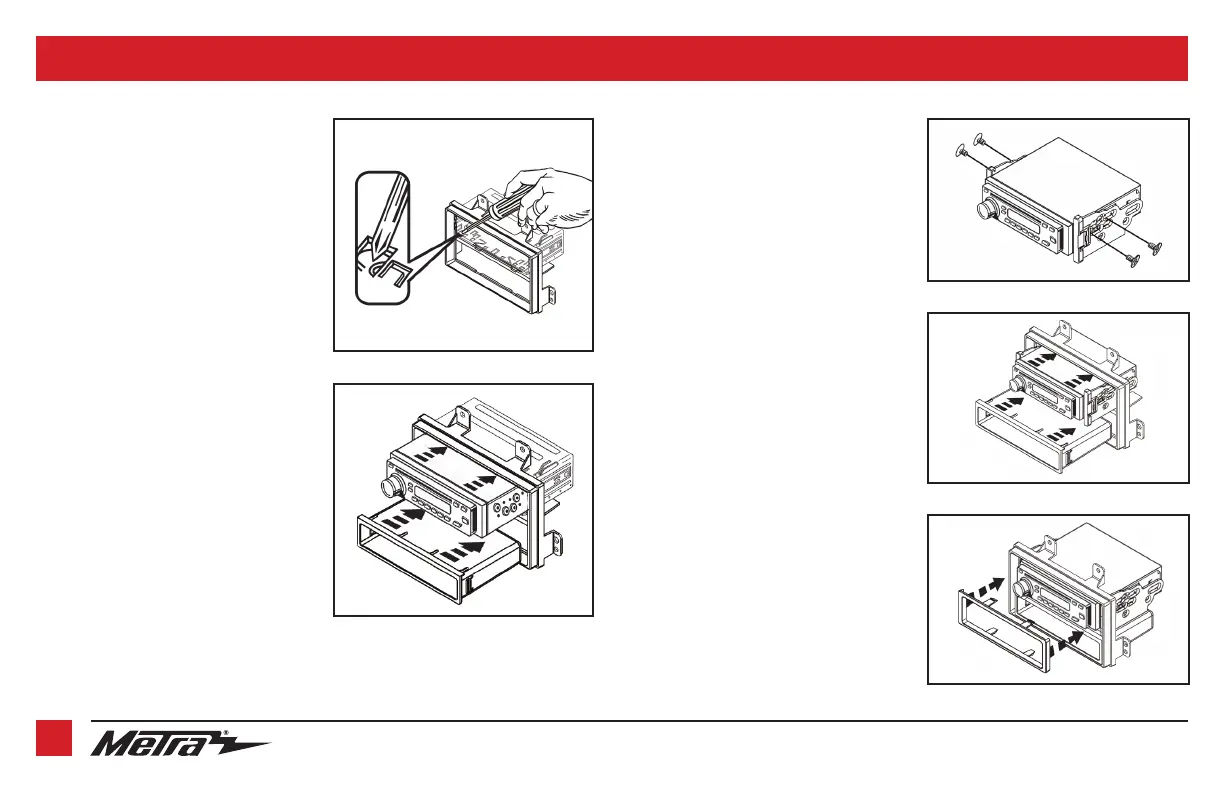

DIN radio provision with pocket
1. Remove the metal DIN sleeve from the
aftermarket radio.
2. Slide the sleeve into the top opening
of the radio housing and secure by
bending the metal locking tabs down.
(Figure A)
3. Snap the pocket into the bottom
opening of the radio housing .
(Figure B)
4. Slide the radio back into the sleeve until
it clicks in. (Figure B)
Continue to Axxess
Interface Installation.
(Figure A)
(Figure B)
KIT ASSEMBLY
ISO DIN radio provision with pocket
1. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
2. Secure the ISO brackets to the radio
using the screws supplied with the
radio. (Figure A)
3. Snap the pocket into the bottom
opening of the radio housing .
(Figure B)
4. Slide the radio into the top opening of
the radio housing until it clicks in.
(Figure C)
5. Snap the ISO trim plate into the radio
housing . (Figure C)
Continue to Axxess
Interface Installation.
(Figure A)
(Figure B)
(Figure C)
