99-3311B
Kit Assembly

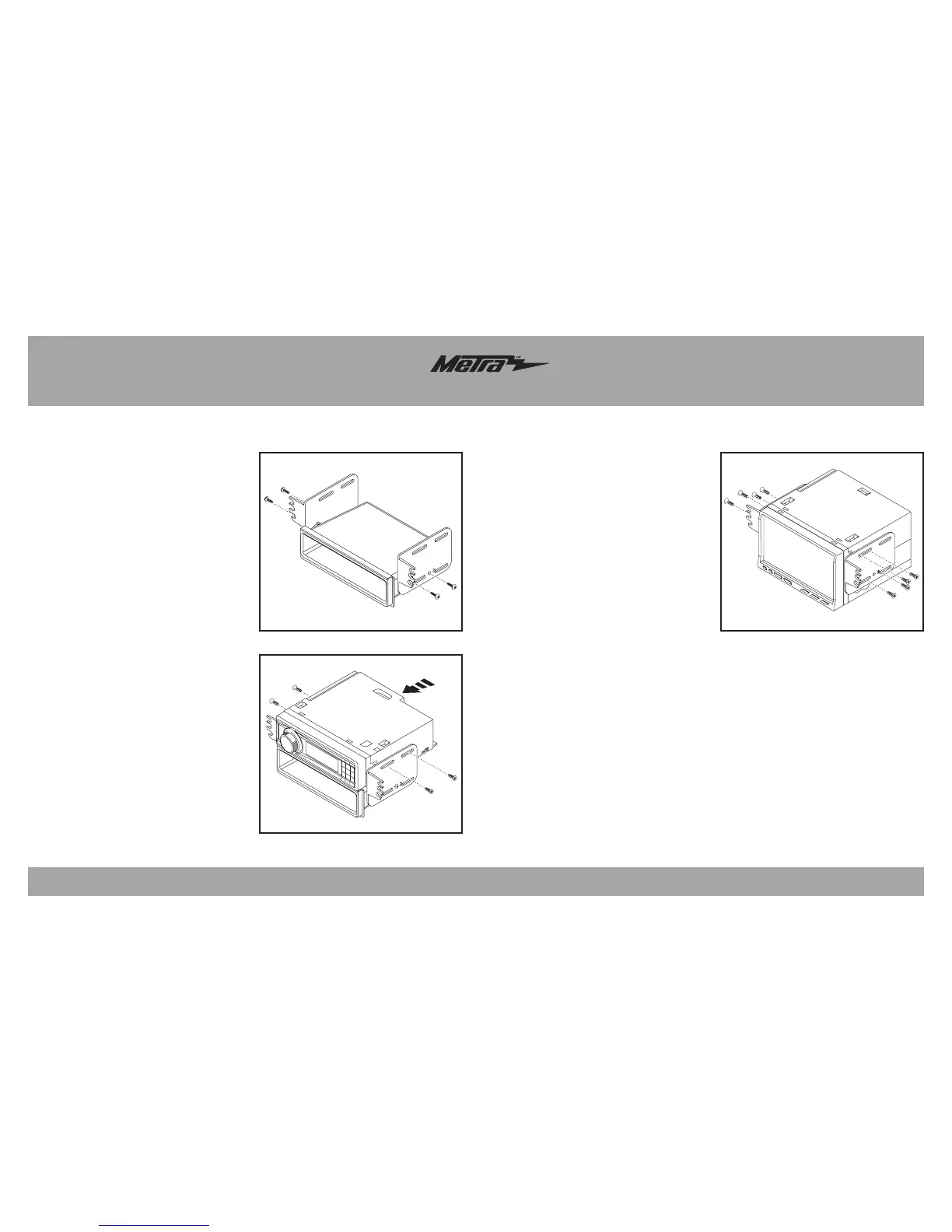

(Figure A) (Figure A)
(Figure B)
ISO DIN radio provision
1. Mount the pocket to the radio
brackets with the (4) #8 x 3/8”
Phillips screws supplied. (Figure A)
2. Slide the radio into the bracket/
pocket assembly and secure with
screws supplied with the radio.
(Figure B)
3. Locate the factory wiring harness
and antenna plug in the dash.
Metra recommends using the
proper mating adapters from
Metra and/or AXXESS.
4. Mount the new radio assembly into
the dash and reassemble dash in
reverse order of disassembly using
the 99-3311B radio trim panel.
Double DIN radio provision
1. Secure the radio to the radio
brackets using the screws supplied
with the radio. (Figure A)
2. Locate the factory wiring harness
and antenna plug in the dash.
Metra recommends using the
proper mating adapters from
Metra and/or AXXESS.
3. Mount the new radio assembly into
the dash and reassemble dash in
reverse order of disassembly using
the 99-3311B radio trim panel.
