99-5027
Kit Assembly
9
DIN radio provision with pocket
1. Remove the metal DIN sleeve
from the aftermarket radio.
2. Slide the sleeve into the radio
housing and secure by bending
the metal locking tabs down.
3. Slide the radio into the sleeve
until it clicks in.

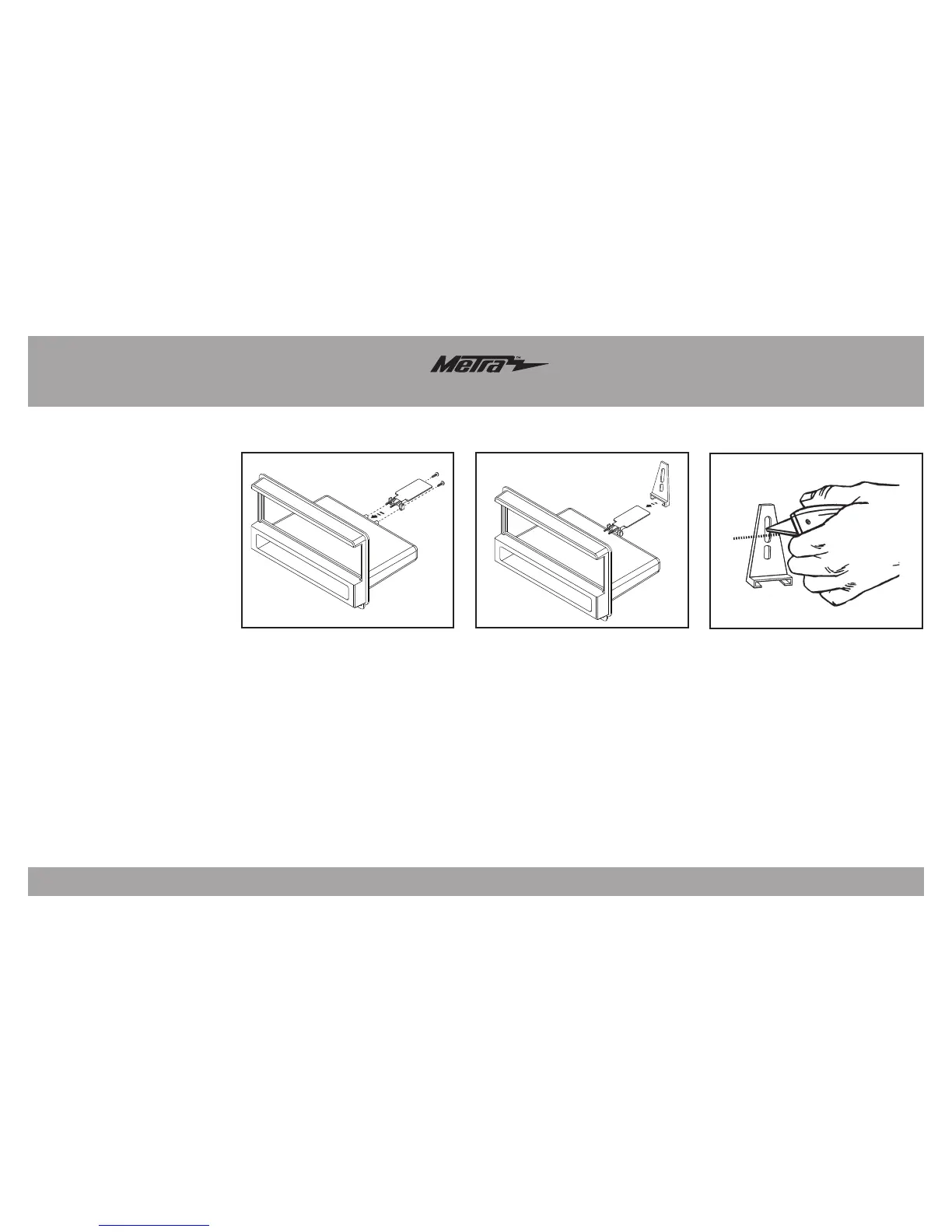

4. Secure the mounting bracket to
the back of the radio housing
with the (2) #8 x 3/8” Phillips
screws supplied. (Figure A)
5. Slide the rear support onto the mounting bracket, and
then mount the support to the back of the radio using the
hardware included with the radio. (Figure B)
Note: For the Ford Expedition and Lincoln Navigator, cut the
support as shown in Figure C. (Figure C)
6.
Locate the factory wiring harness and antenna connector in
the dash. Metra recommends using the proper mating adapter
from Metra or AXXESS. Test the radio for proper operation.
7. Reassemble the dash in reverse order of disassembly.
(Figure C)
(Figure B)(Figure A)
