Metra Electronics 99-7335S - Dash Disassembly Procedure

2
Dash Disassembly 99-7335S
1. Unclip and remove the side
trim panels.
Tip: Start at the bottom of
the panels. (Figure A)
2. Remove (6) Phillips head
screws securing the radio
trim panel and remove trim
panel. (Figure B)
3. Remove (4) Phillips screws
securing the climate
control, (2) Phillips screws
securing the clock display
and (4) Phillips screws
securing the pocket from
the radio trim panel.
(Figure C)
Continue to kit preparation
Hyundai Veracruz Limited 2007-2012

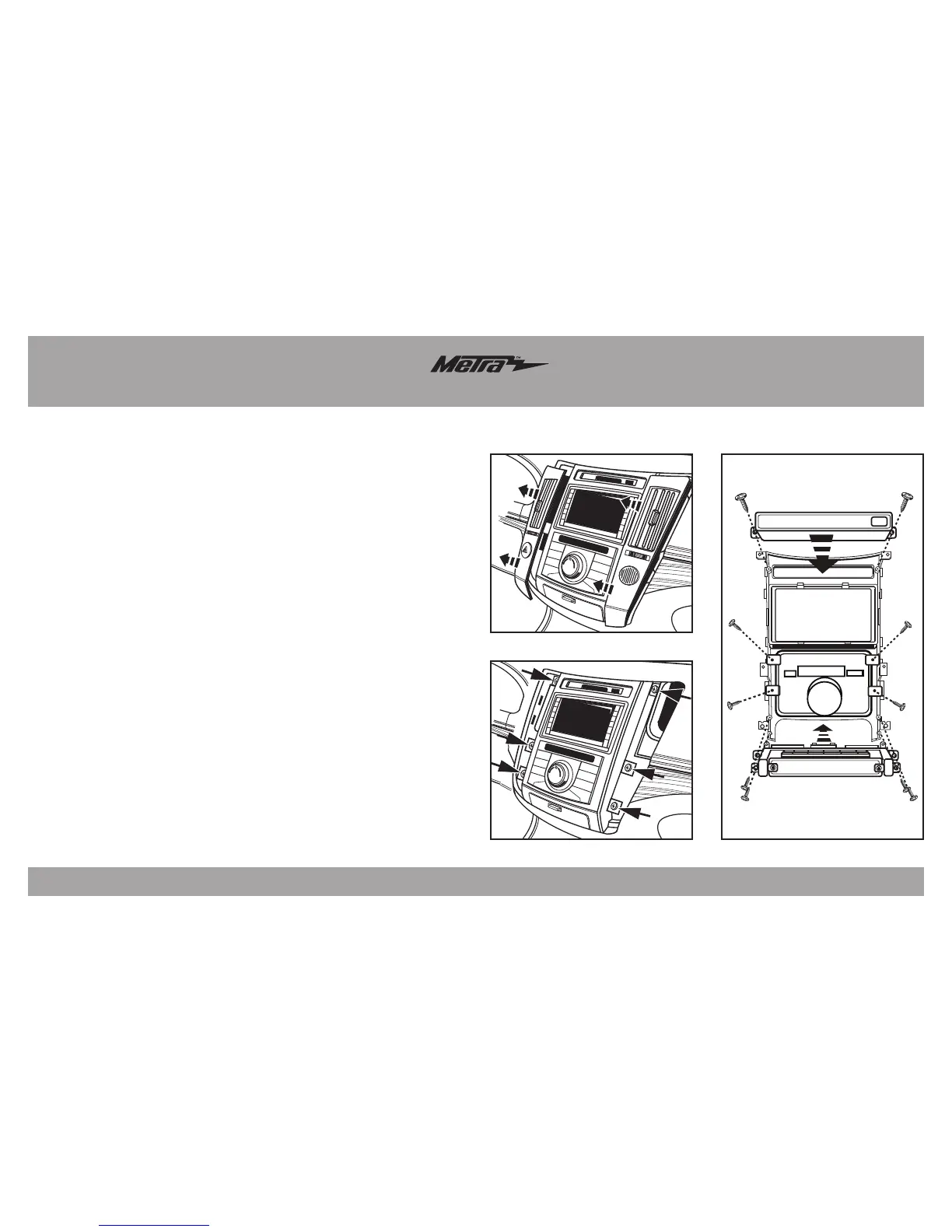

(Figure A)
(Figure C)(Figure B)
Dash Disassembly
– Hyundai Veracruz Limited 2007-2012
(Automatic climate control only) ......................... 2
Kit Preparation ............................................... 3
Kit Assembly
– DIN radio provision with pocket .................... 3
– ISO radio provision with pocket .................... 4
– Double DIN radio provision ........................... 5
Table of Contents
CLOCK DISPLAY-REAR VIEW
CLIMATE CONTROL-REAR VIEW
RADIO HOUSING
REAR VIEW
POCKET-REAR VIEW
Pocket, rear view
Clock display, rear view
Radio housing,
rear view
Climate control
