5

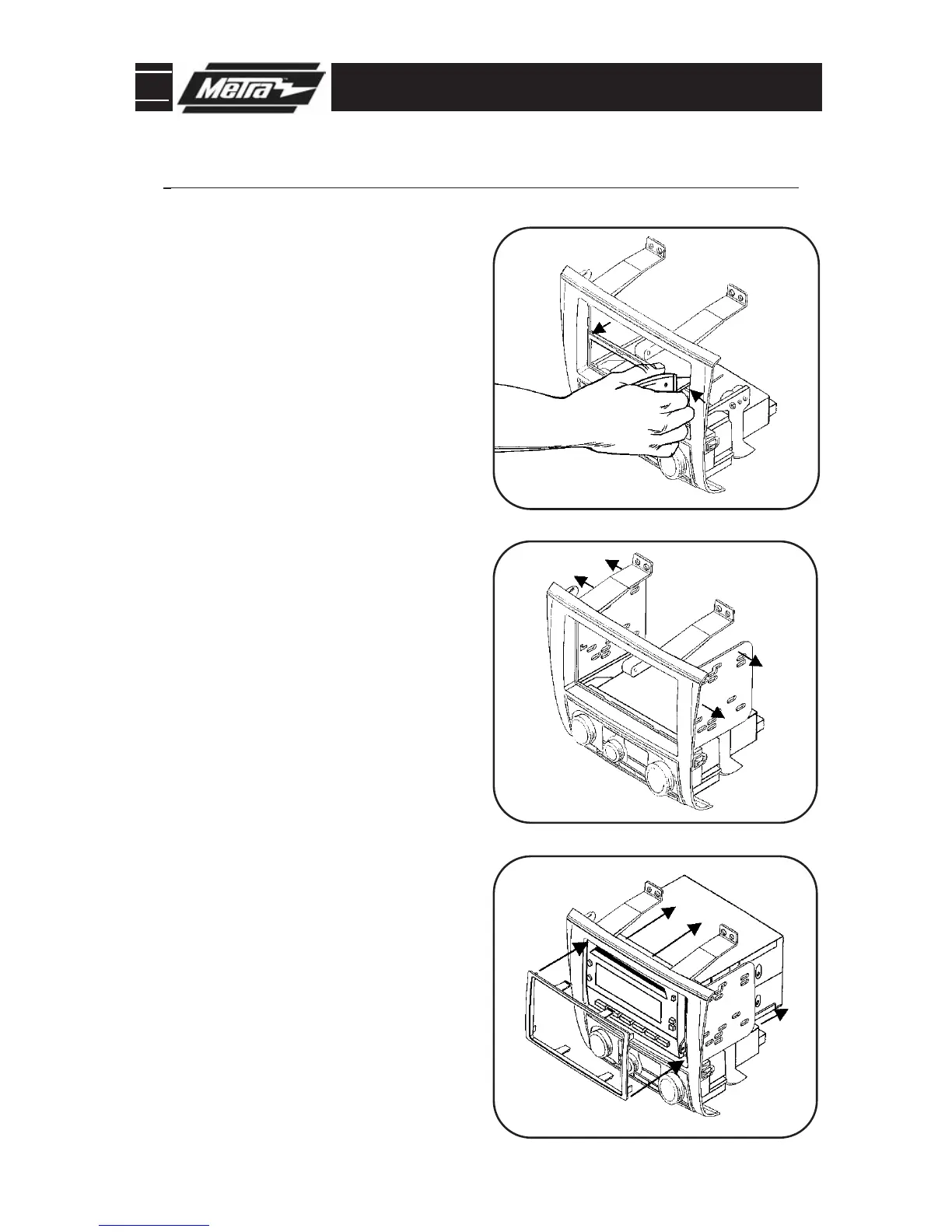

99-7423 KIT ASSEMBLY
B
C
A
DOUBLE DIN RADIO PROVISION
Snap the Double DIN brackets to the
inside edge of the radio housing
assembly.
(Figure B)
2
1
Slide the Double DIN radio into the
bracket/radio housing assembly and
secure the radio to the assembly using
the screws supplied with the radio.
(Figure C)
3
Continue to final assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
Cut and remove the center bar from
the radio housing assembly.
(Figure A)
4
Snap the Double DIN trim plate onto
the front of the radio/housing assem-
bly.
(Figure C)
