DASH DISASSEMBLY
(CONT)

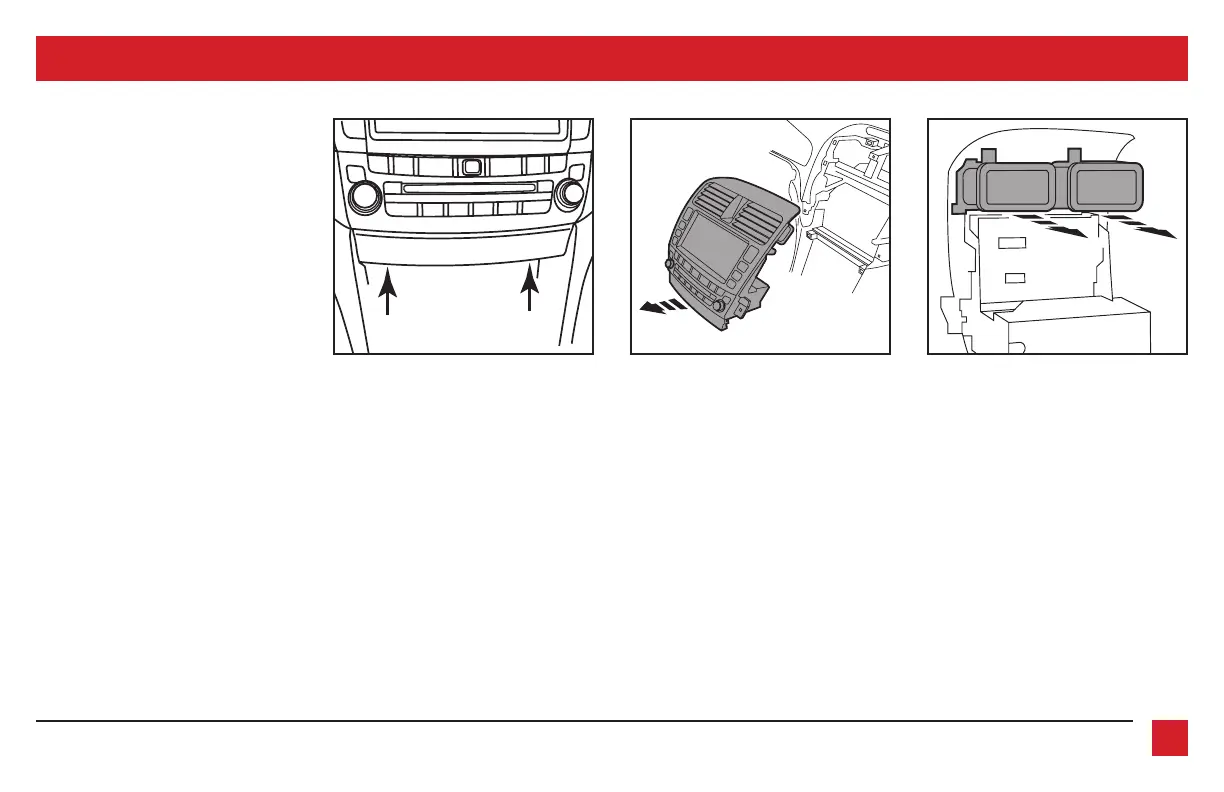

(Figure E) (Figure G)(Figure F)
5. Remove (2) 5/16” bolts under the radio
facing up that secure the radio brackets.
(Figure E)
6. Unclip, unplug and then remove the
factory radio/climate control assembly.
(Figure F)
7. Remove the a/c vents from the factory
panel and set aside for kit assembly.
(Figure G)
