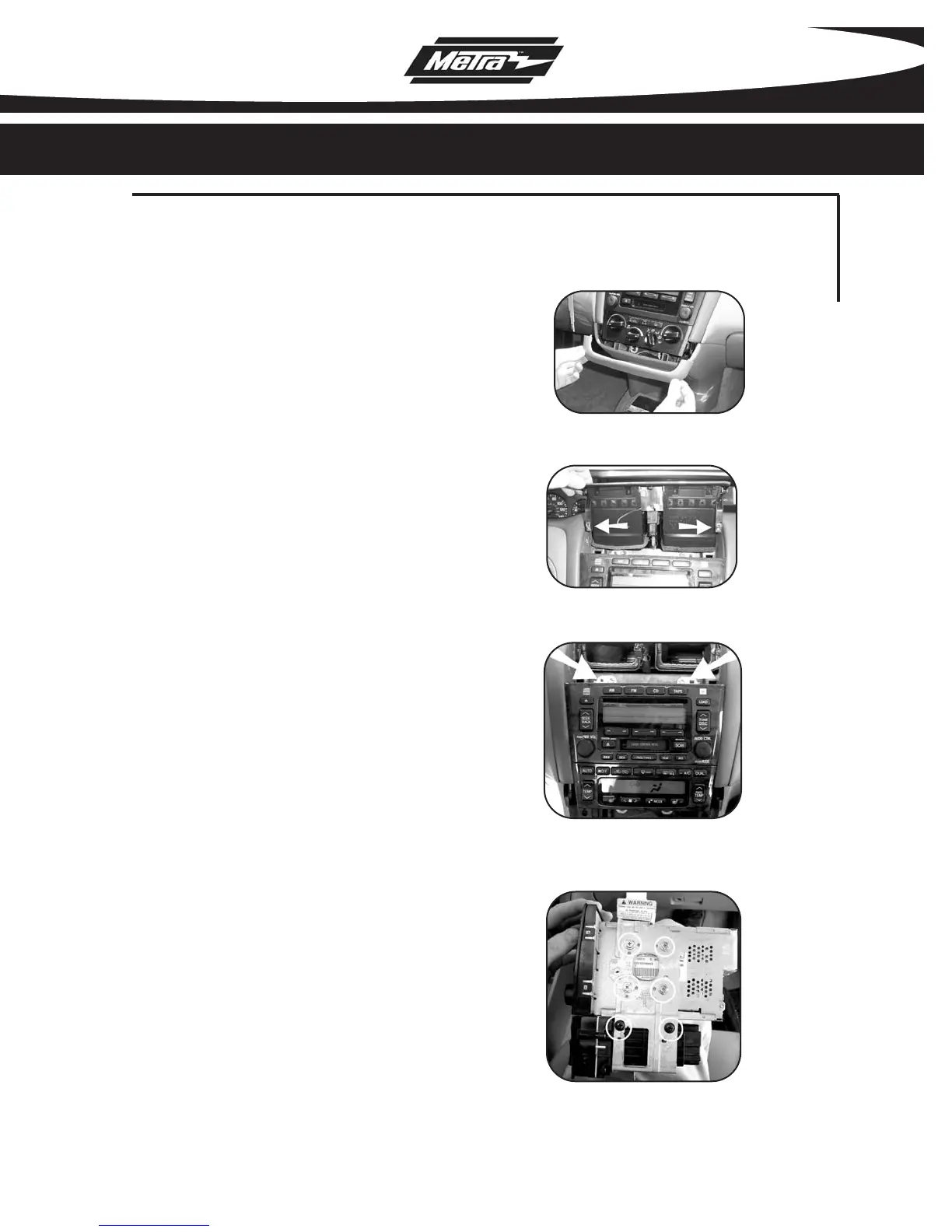

DASH DISASSEMBLY
2000-2004 TOYOTA AVALON (column shift models)
Disconnect the negative battery terminal
to prevent an accidental short circuit.
Unsnap the trim below the climate
control to reveal (2) 10 MM bolts
and remove.
(Figure A)
1
2
A
Carefully pull air vents above radio
towards rear of car to unsnap. Note:
There are (3) snaps, (2) are at the bottom
sides and (1) is at the top middle of the
vent assembly.
(Figure B)
3
Remove (2) 10 MM bolts from above
radio/climate control assembly and
remove assembly together.
(Figure C)
4
Remove (6) Phillips screws (4 from radio
and 2 from climate control) from each
side bracket to separate radio and cli-
mate control.
(Figure D)
5
B
C
D
