99-8211

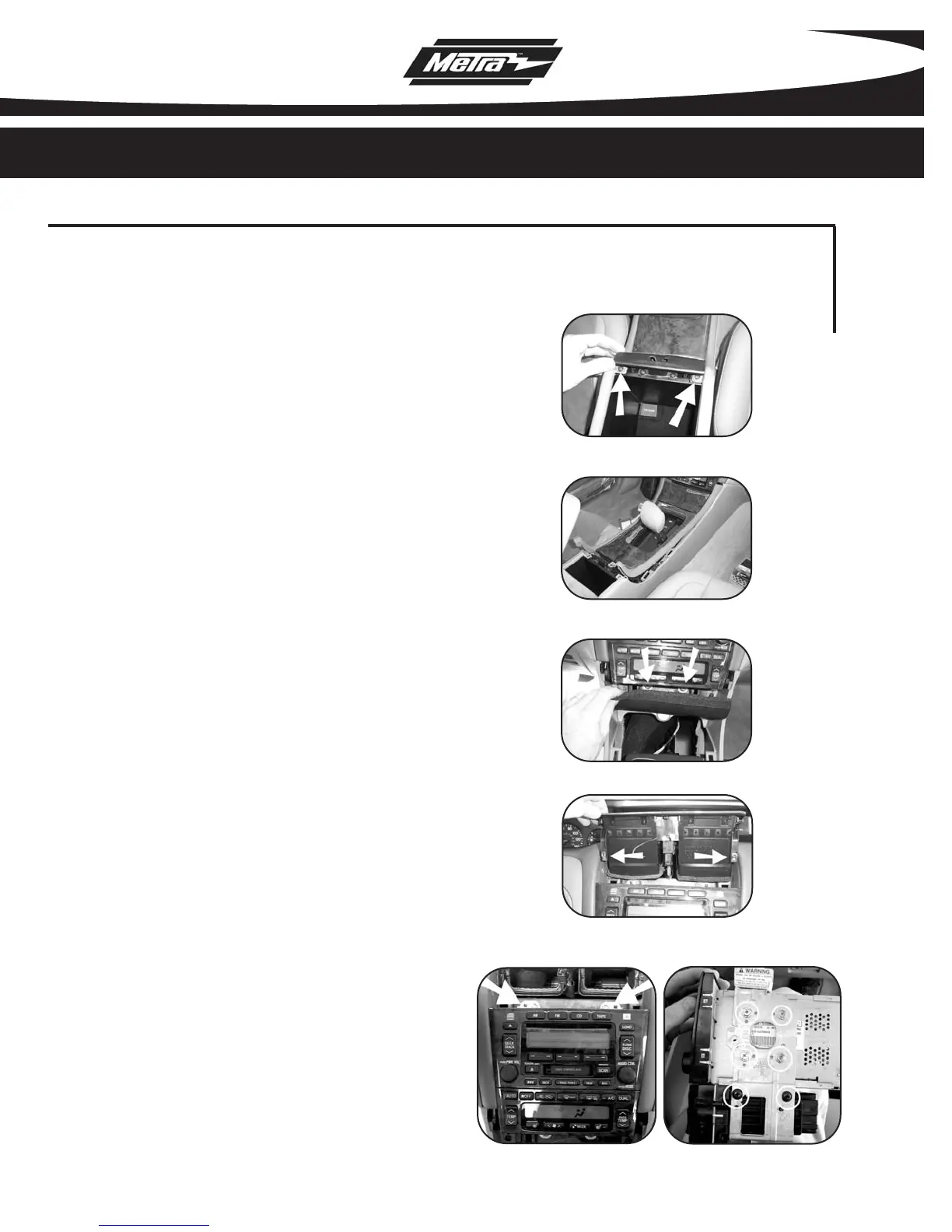

DASH DISASSEMBLY
2000-2004 TOYOTA AVALON (console shift models)
Disconnect the negative battery terminal
to prevent an accidental short circuit.
Open the center console armrest,
unsnap cover above cup holder and
remove (2) Phillips screws toward
the outside of the panel.
(Figure A)
1
2
A
Carefully pull air vents above radio
towards rear of car to unsnap. Note:
There are (3) snaps, (2) are at the bottom
sides and (1) is at the top middle of the
vent assembly.
(Figure D)
3
Remove (2) 10 MM bolts from above
radio/climate control assembly and
remove assembly together.
(Figure E)
4
Remove (6) Phillips screws (4 from radio
and 2 from climate control) from each
side bracket to separate radio and cli-
mate control.
(Figure F)
5
D
E F
Lift up and remove shifter trim/ashtray
assembly.
(Figure B)
3
Unsnap black cover from under climate
controls and remove (2) 10 MM bolts.
(Figure C)
4
B
C
To Next Page
