99-9605B
6
Kit Assembly
ISO DIN radio provision with pocket
(NAV models only)

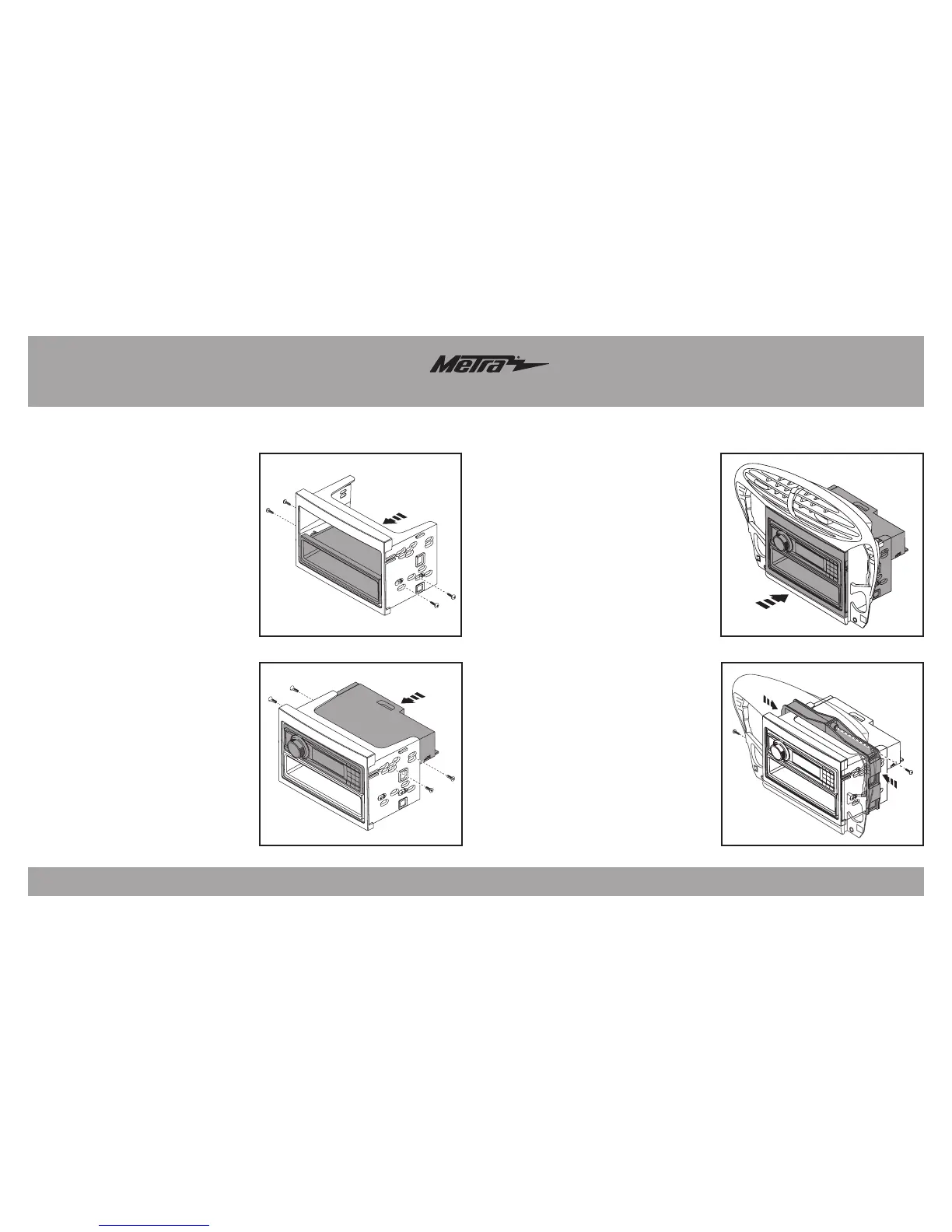

1. Secure the pocket to the radio
housing using the (4) 8 x 3/8”
Phillips screws provided.
(Figure A)
2. Remove the metal DIN sleeve
and trim ring from the
aftermarket radio.
3. Slide the radio into the housing/
pocket assembly and then secure it
using the screws supplied with the
radio. (Figure B)
4. Slide the radio housing into the
radio frame assembly removed in
dash dissassembly. (Figure C)
5. Locate the factory wiring harness
and antenna connector in the
dash and complete all necessary
connections to the radio. Metra
recommends using the proper
mating adapter from Metra and/or
AXXESS. Test the radio for
proper operation.
6. Place the radio brackets around
the radio housing and frame
assembly and then secure it using
the (2) 8 x 3/8” Phillips screws
provided. (Figure D)
7. Reassemble the dash in reverse
order of disassembly.
(Figure B) (Figure D)
(Figure A) (Figure C)
