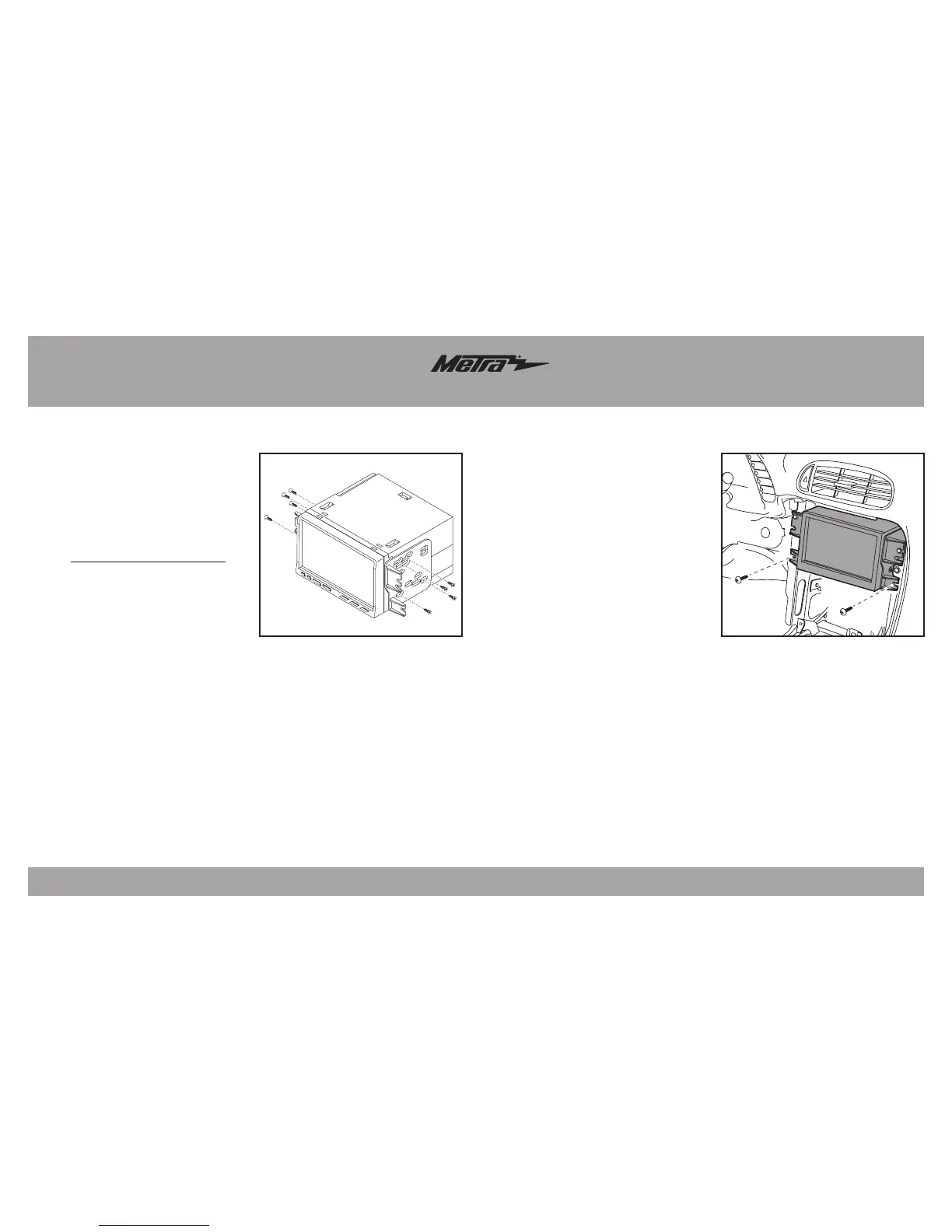

ISO DDIN radio provision
1. Attach the radio brackets to the
radio using the screws supplied
with the radio. (Figure A)
2.
Locate
the factory wiring harness
and antenna connector in the dash
and complete all necessary
connections to the radio. Metra
recommends using the proper
mating adapter from Metra and/or
Axxess. Test the radio for
proper operation.
(Figure A)
(Figure B)
Kit Assembly
3. Using the upper brackets in the
completed assembly, secure it to
the dash using the factory screws.
(Figure B)
4. Drill an 1/8” hole in the (2)
remaining screw holes in the lower
brackets, and then use the (2)
#8 x 1/2” Phillips truss-head
screws provided to fully secure the
radio. (Figure B)
5. Reassemble the dash in reverse
order of disassembly using the
radio dash panel.
