Metra Electronics SWC-01 - Way Ford Plug

SWC-01
6
7
9
1
17
15
14

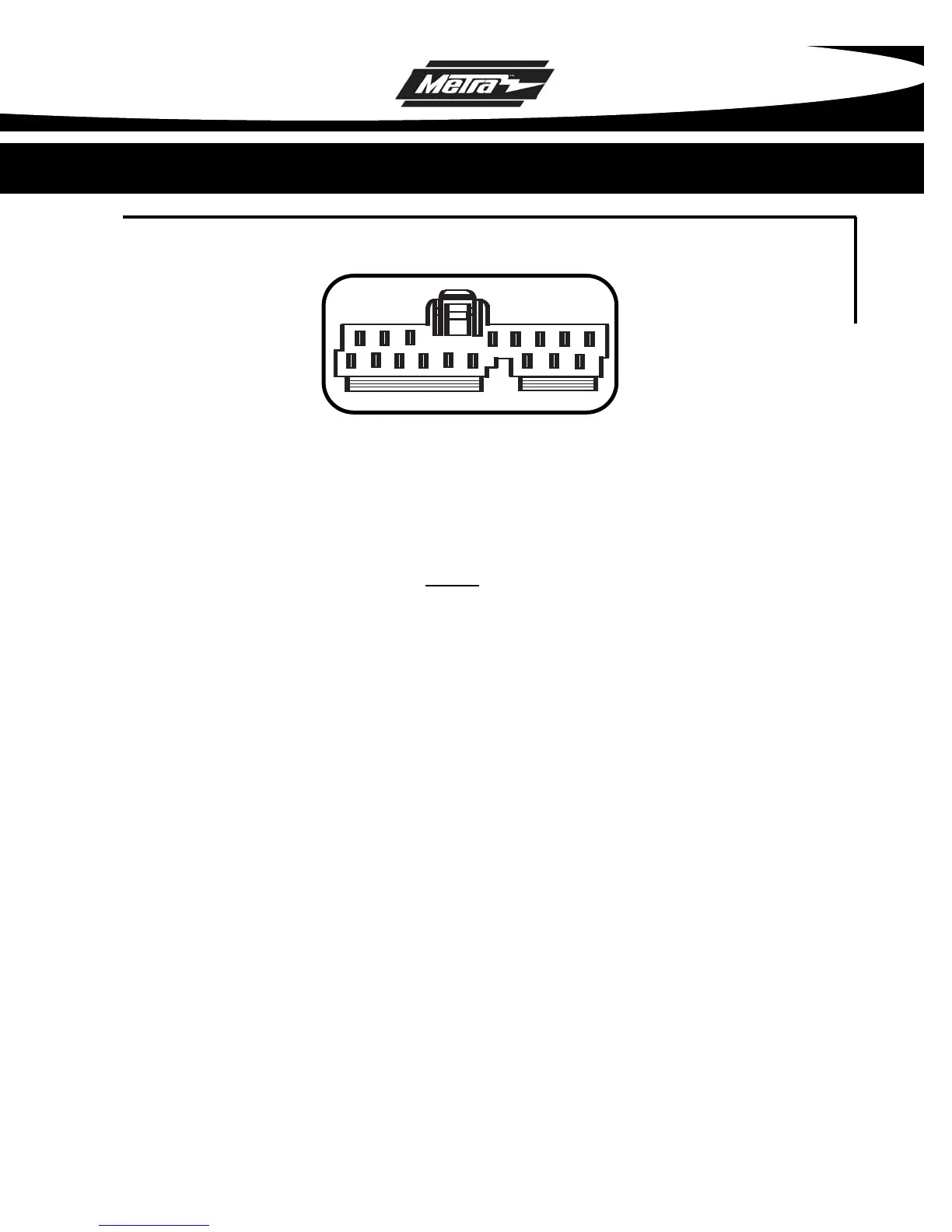

17 - Way Ford Plug
Year Make Model Pin Wire Color Additional Wiring Needed
Location
2002 Ford Focus 11 white/black Connect pin 12,
Brown/Yellow, to chassis
ground
For the vehicles listed above use the
Green wire on the SWC-01 and set the CAR DIP
Switch settings as follows:
Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6 Dip 7 Dip 8
Down Down Up Up Up Up Down Up
13
