METREL A 1532 User Manual

A 1532 EVSE adapter Adapter description
7
3 Adapter description

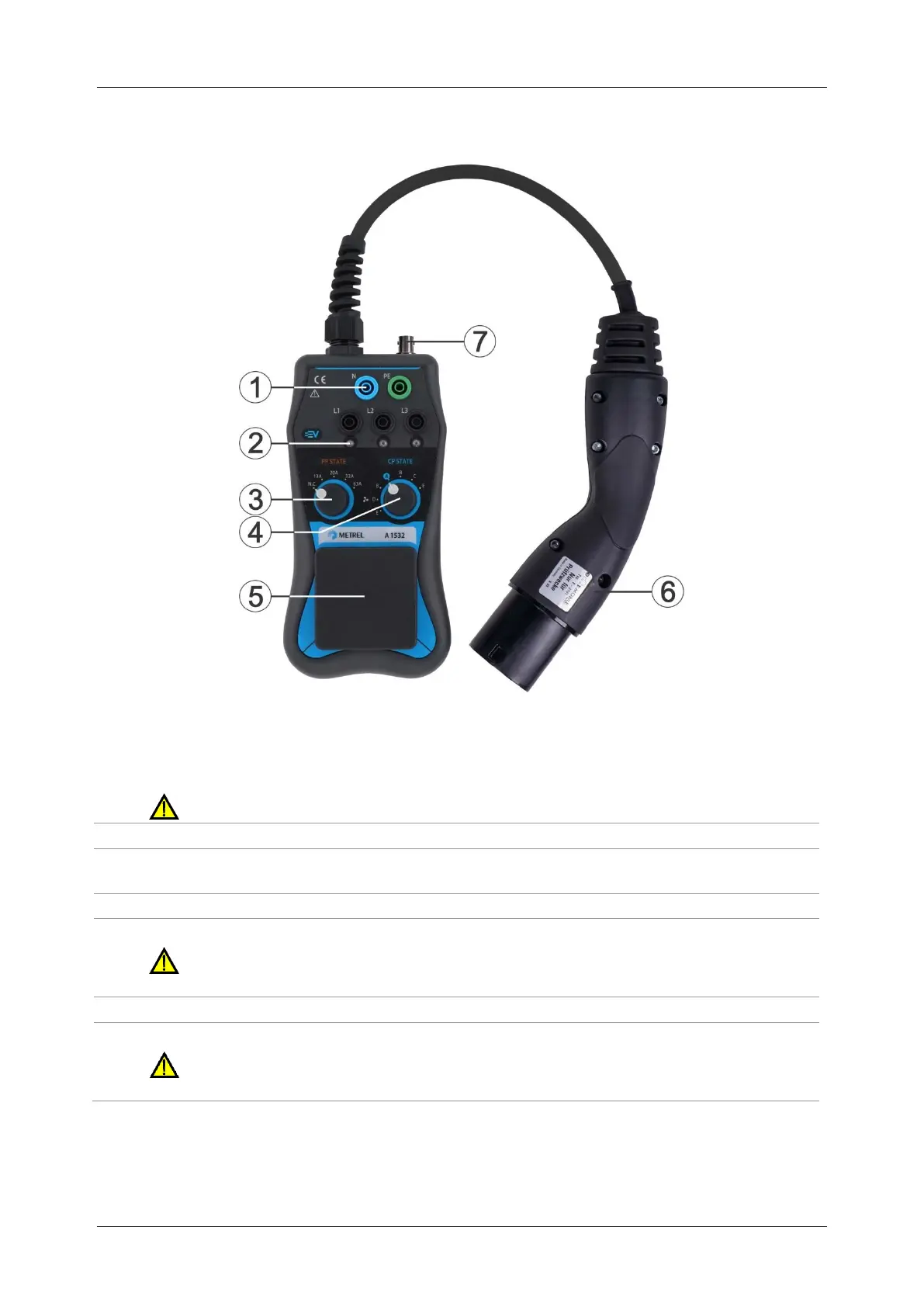

Figure 3.1: A 1532 components
Legend:
1
Banana socket outputs for connection to 3-phase installation tester.
Banana socket outputs are intended for test purposes only!
2
Voltage on EVSE output indicators.
3
Proximity Pilot (PP STATE) resistance (current code) selector for simulation of EV cable
presence and current rating detection.
4
Control Pilot (CP STATE) resistance selector for simulation of electric vehicle status.
5
Socket output for connection to single-phase installation tester.
Socket output is intended for test purposes only! Do not use it as power
supply extender!
6
Type 2 Male Plug connector for connection to EVSE.
7
BNC output connector for checking Control Pilot (CP) signal.
BNC output connector is intended for connection to oscilloscope for test
purposes only!
Warning:
 Socket output and banana socket outputs are energized when one or more
indicators (2) lit.

METREL A 1532 Specifications

Power

input voltage	up to 250 V (1-phase), up to 430 V (3-phase)
frequency	50 Hz, 60 Hz
maximum test current	267 A (10 ms)

Operating Environment

working temperature range	0 °C … 40 °C
maximum relative humidity	95 %RH (0 °C … 40 °C), non-condensing
altitude	up to 3000 meters above sea level

Weight and Dimensions

weight	0.90 kg
width	10 cm
height	7 cm
length	25 cm
