MI 2094 CE MultiTester Measurements
41
Pm a x = 3 . 5 kVA
Fig. 40. Connection of tested object
STEP 4. Press START/STOP key to start the measurement.
STEP 4. Touch ungrounded metal part by using test probe.
STEP 5. Wait for the test time to elapse (if the timer has been switched on) or press
START/STOP key again to stop the measurement.
STEP 6. Save displayed result for documentation purpose (see instructions in
chapter 5.2. on how to save displayed result).
4.11. Functional test
CE MultiTester
MI 2094
Calculated values:
Active, Apparent power
Cos , Frequency
TEST
SOCKET
OBJECT UNDER TEST
F3
F4
A
V

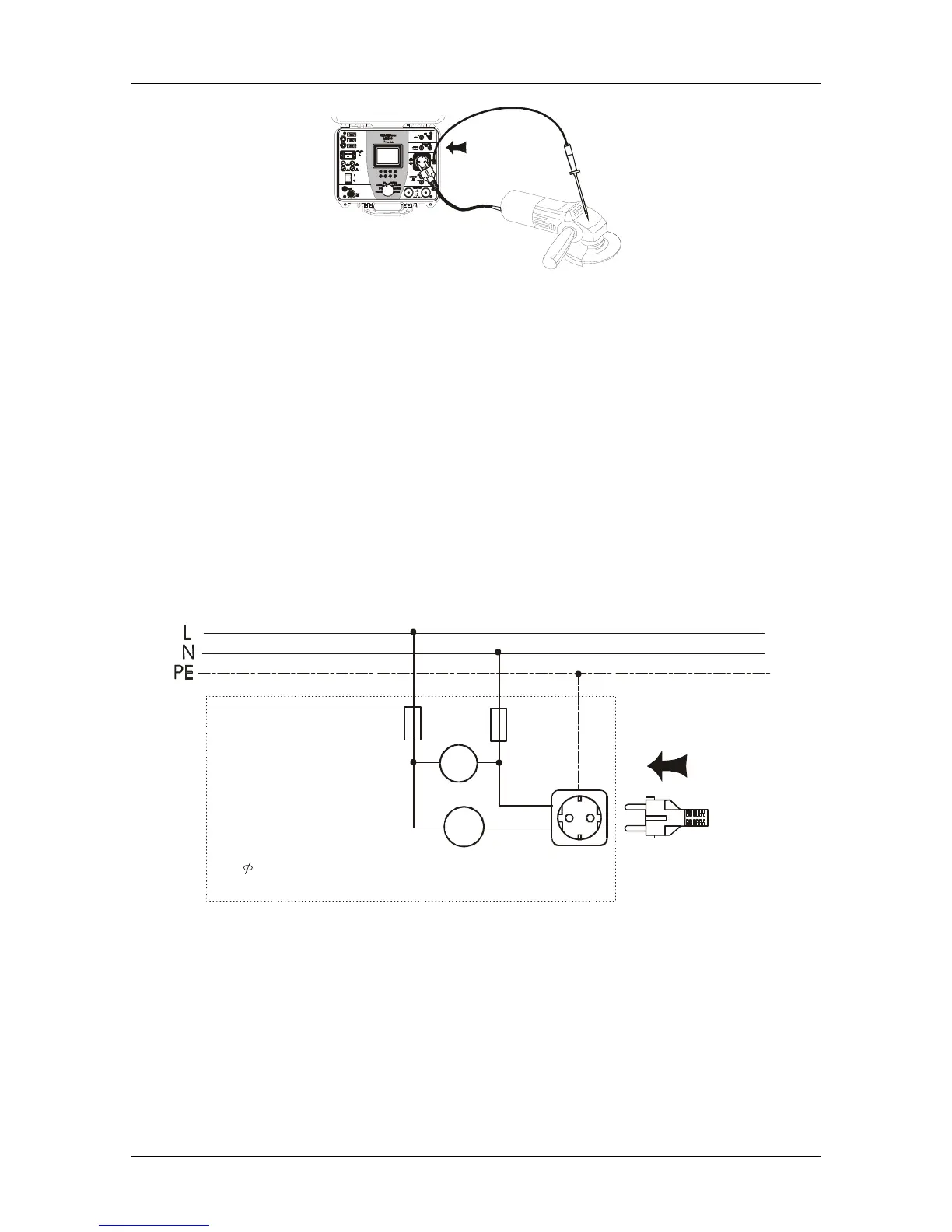

Fig. 41. Test circuitry
How to carry out the measurement
STEP 1. Set rotary switch to FUNCTION. TEST position, the following heading is
displayed.
To Next Page
