METREL TeraOhm User Manual

TeraOhm 5kV
27
Set-up parameters for Withstanding Voltage:
- Press the SELECT key, Set-up menu appears on
display, see the figure 19.
- Select parameter (line) to be set using the ↑
↑↑
↑ and ↓
↓↓
↓
keys;
- Adjust set parameter using the ←
←←
← and →
→→
→ keys. Skip to
the next sub-parameter by pressing the SELECT key
(if there are two or more sub-parameters) and repeat
the adjustment.
- Complete the set-up adjustments pressing either the
ESC key or START key (to run the measurement
directly) or changing the rotary switch position. The
last displayed settings are stored.

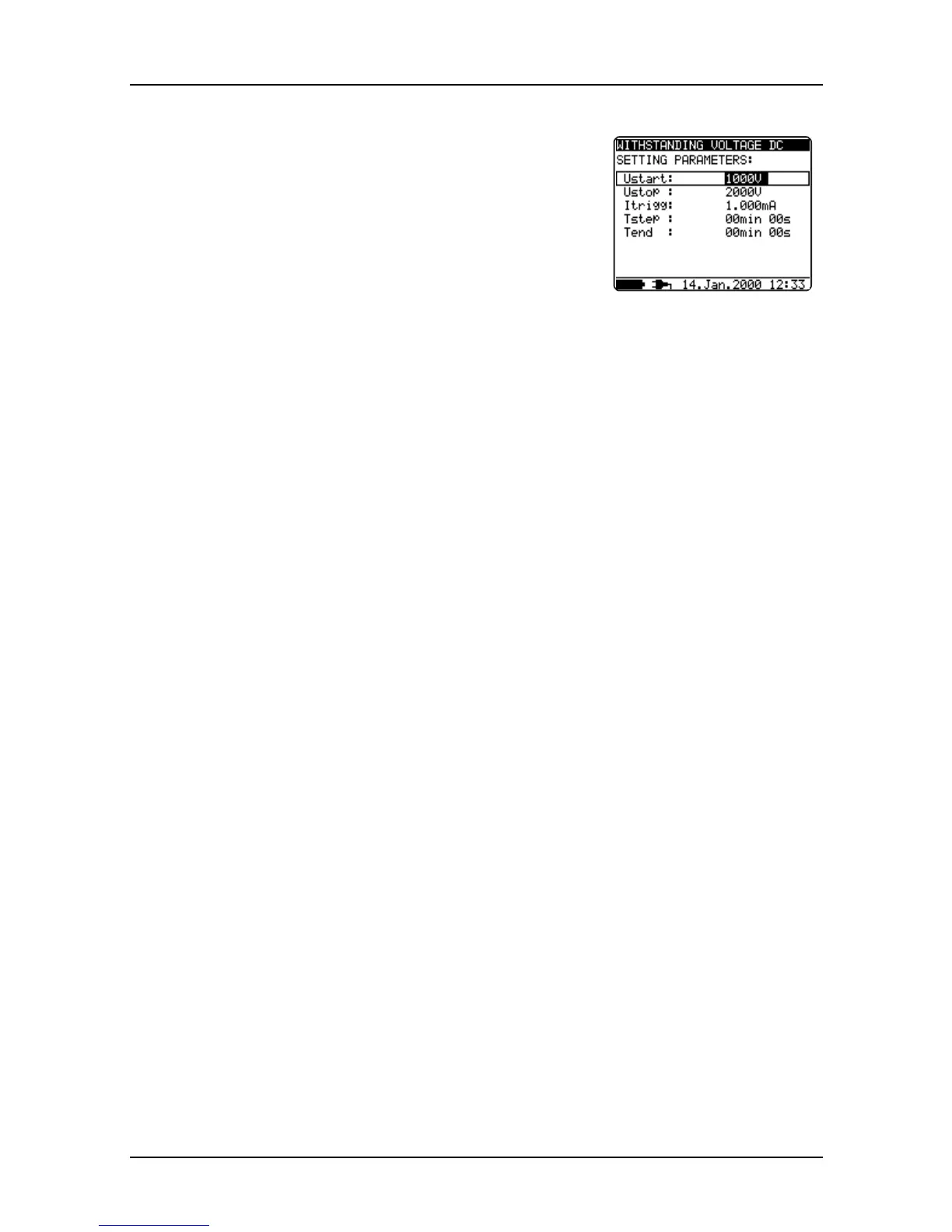

Fig. 19. Set-up menu in
Withstanding Voltage function
Tstep and Tend are independent timers. The maximum time for each timer is 30 min
60 s. Tend begins after the completion of the ramp period. Ramp period can be
calculated from:
Tramp ≈ Tstep ⋅ (Ustop – Ustart) / 20 V
If Tstep is set to 00min 00s, then the ramp voltage increases by approximately 20 V
per 2s.
Warning!
• Refer to Warnings chapter for safety precautions!
