8
30 MHz-differential oscilloscope

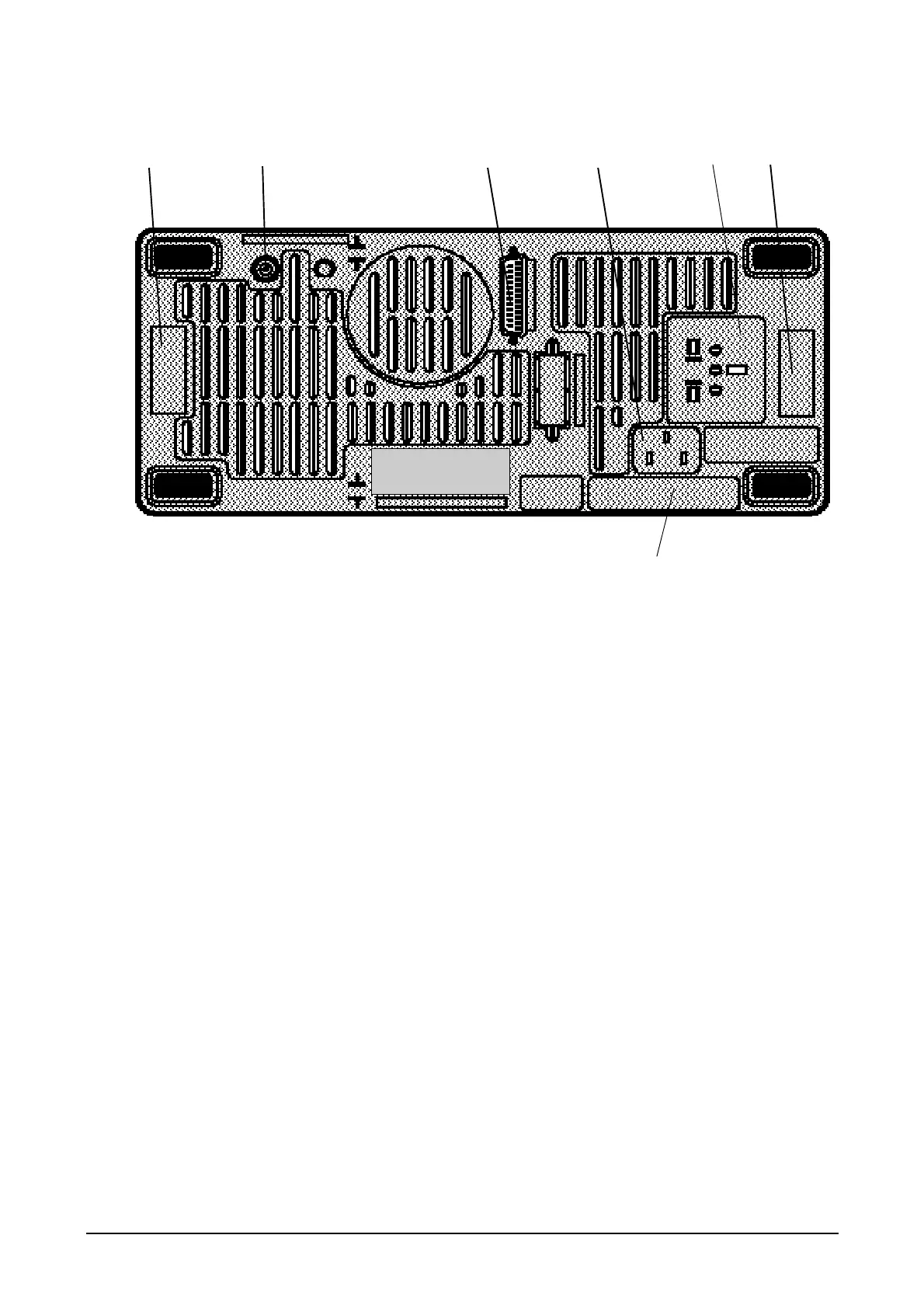

2.2. Rear panel description
42 45 40 41 43 42
44
Figure 2
(40) Location of the optional HA1255 PROGRAMMING KIT connector
This RS232C serial link (40) establishes the communication between the oscilloscope
and a PC or compatible computer. It enables :
- the remote programming of the oscilloscope
- the reading of the oscilloscope configuration
(41) Mains plug
(42) Cord winders
(43) Mains plug location when carrying the oscilloscope
(44) Fuse label
(45) Z Modulation
Input BNC at the back
Sensitivity TTL level
High level on
Low level off
Max. frequency 4 MHz
Input resistance approx. 2 kΩ
Max. voltage ± 20 V
DC
