3
C5 E-Series
Heated Holding & Proong Cabinets
L01-633

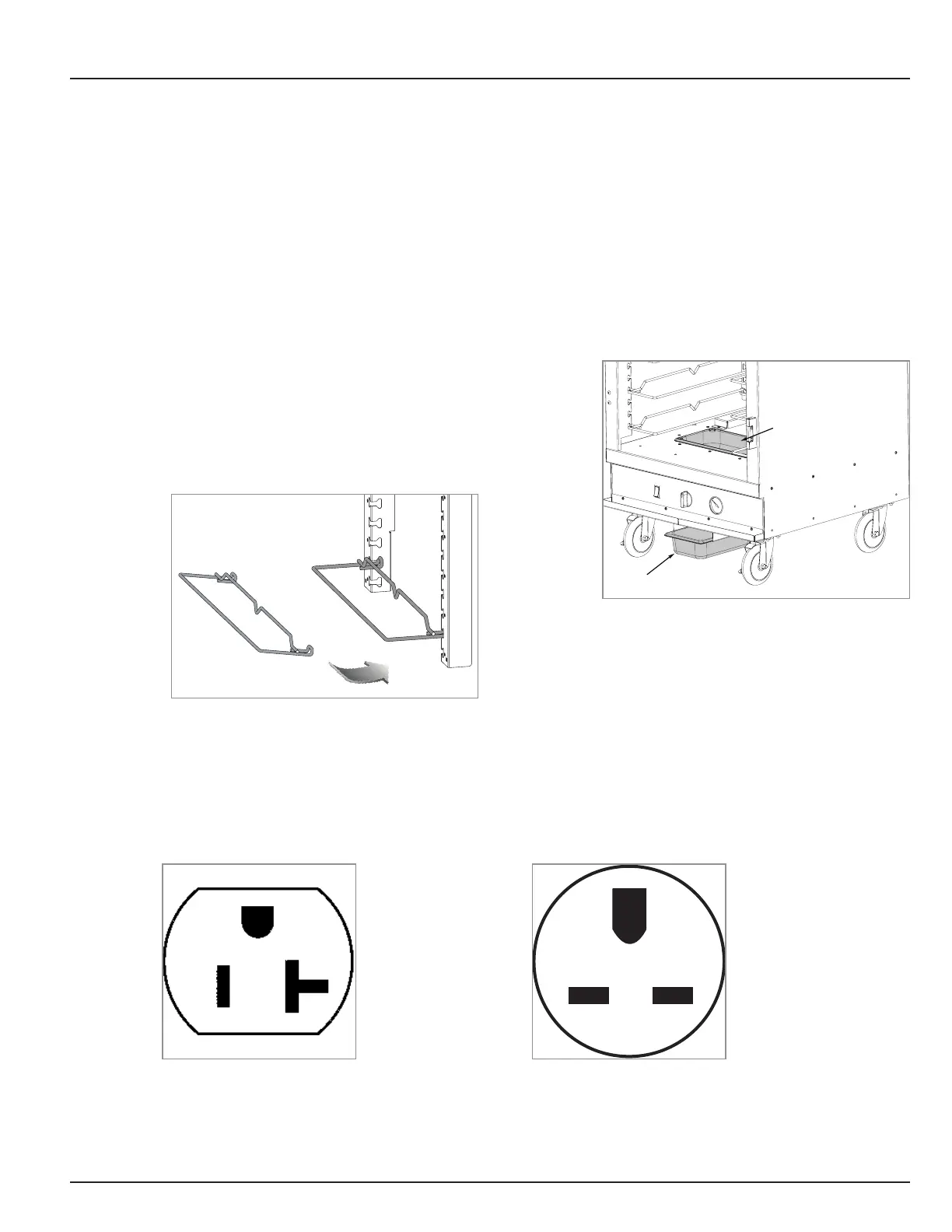

Figure 2:
Wall receptacles
20 Amp Outlet
For 120V Cabinets
250 VAC 15 Amp Outlet
(For All 220-240V Cabinets)
INSTALLATION AND SETUP
1. Check the packaging and cabinet for shipping damage after unloading the unit, and after removing all the packaging.
2. The receiver of this product is responsible for filing freight damage claims. This equipment must be opened
immediately for inspection. All visible damage must be reported to the freight company within 48 hours and must be
noted on freight bill at the time of delivery.
3. Concealed damage is your responsibility — you must advise the carrier of any loss or damage within 15 days after
receipt of the cabinet. If there is damage, retain the original packaging for inspectors.
4. Any protective covers (plastic or paper sheet) must also be removed before turning the cabinet on.
5. Make sure the stainless steel water pan is installed inside the cabinet in the floor opening on top of the proofing
element.
6. Install the plastic drip pan under the drip trough at the base of the
cabinet.
7. Install the universal slides into the notches that are built into the walls
as shown. The notches are spaced at 1.5” intervals, each cabinet is
supplied with 12 sets of slides, if additional slides are desired please
order part number C5-USLIDEPR-C (which is 1 additional set of slides).
8. Refer to the data plate located near the power cord for the electrical specifications of the cabinet as shown on Page 2.
• With the POWER switch OFF, plug the cord into the appropriate rated, grounded receptacle.
• Cabinets rated at 120 V must be plugged into a 20 amp 125 VAC receptacle.
• Cabinets rated at 220-240 V must be plugged into a 15 amp 250 V receptacle.
Metal Pan
Plastic Pan
WARNING: Do not allow combustible materials to be stored or accumulate on, under or next to the cabinet. Do not
block any ventilation louvers or slots.
G
