C5 E-Series
Heated Holding & Proong Cabinets
L01-633

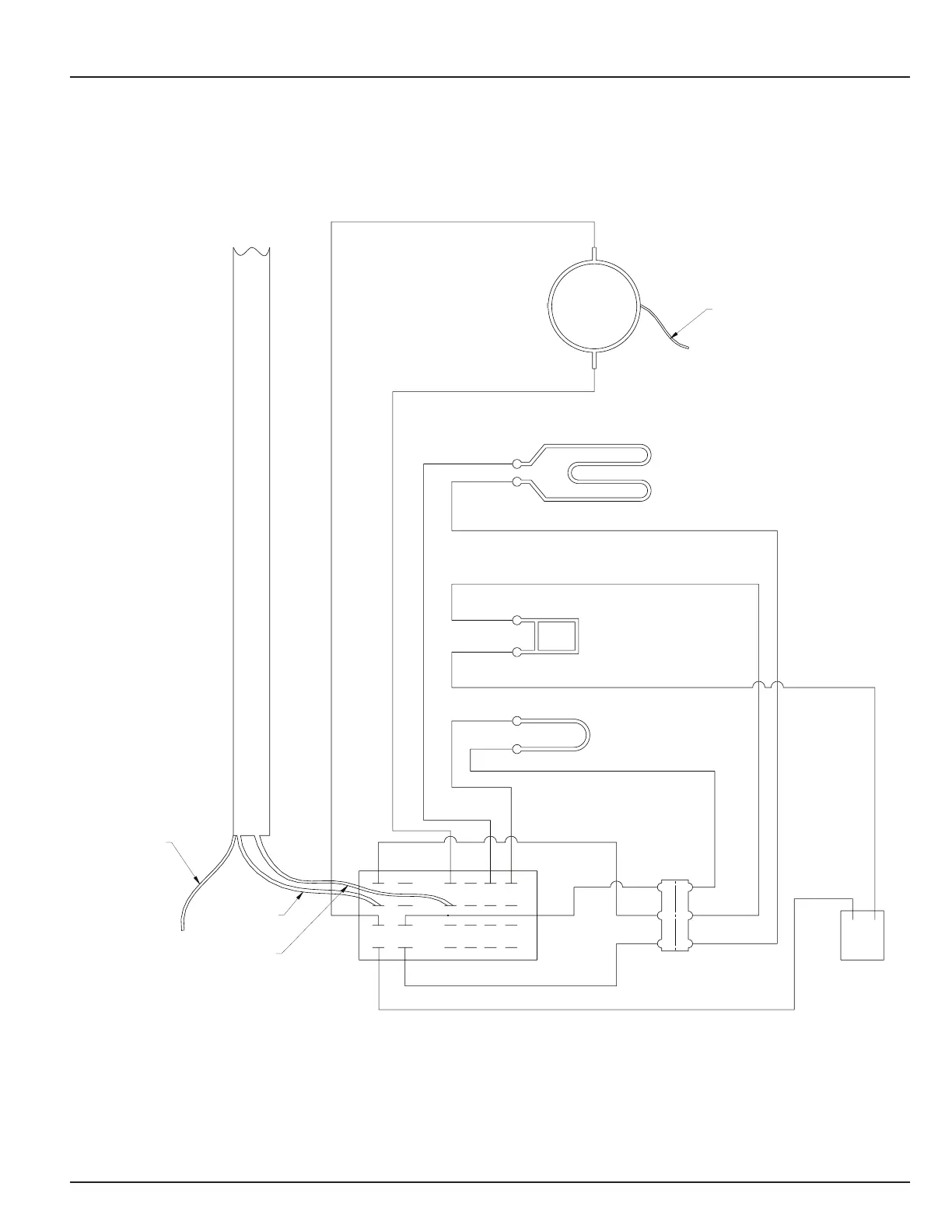

WIRING DIAGRAM 120V AND 220 / 240V
BLACK WIRE
GROUND WIRE
GROUND WIRE
WHITE WIRE
TERMINAL BLOCK
MAIN POWER CORD
1950WATT HEATING
ELEMENT
FAN
MOTOR
B8
T.O.D
650WATT HEATING
ELEMENT
B5
B6
B7
W1
W2
B1
THERMO STAT
4
5
63
2
1
3 WAY SWITCH
B3
B2
B4
