3 Installation
Optrode
￭￭￭￭￭￭￭￭
5
3 Installation
The Optrode's USB cable is used to supply power to the electronics and
the sensor's light source. The actual sensor cable (measuring signal) has a
conventional F plug for connecting to the indicator measuring input (Ind.)
on a titrator.
3.1 Connecting to a Titrando

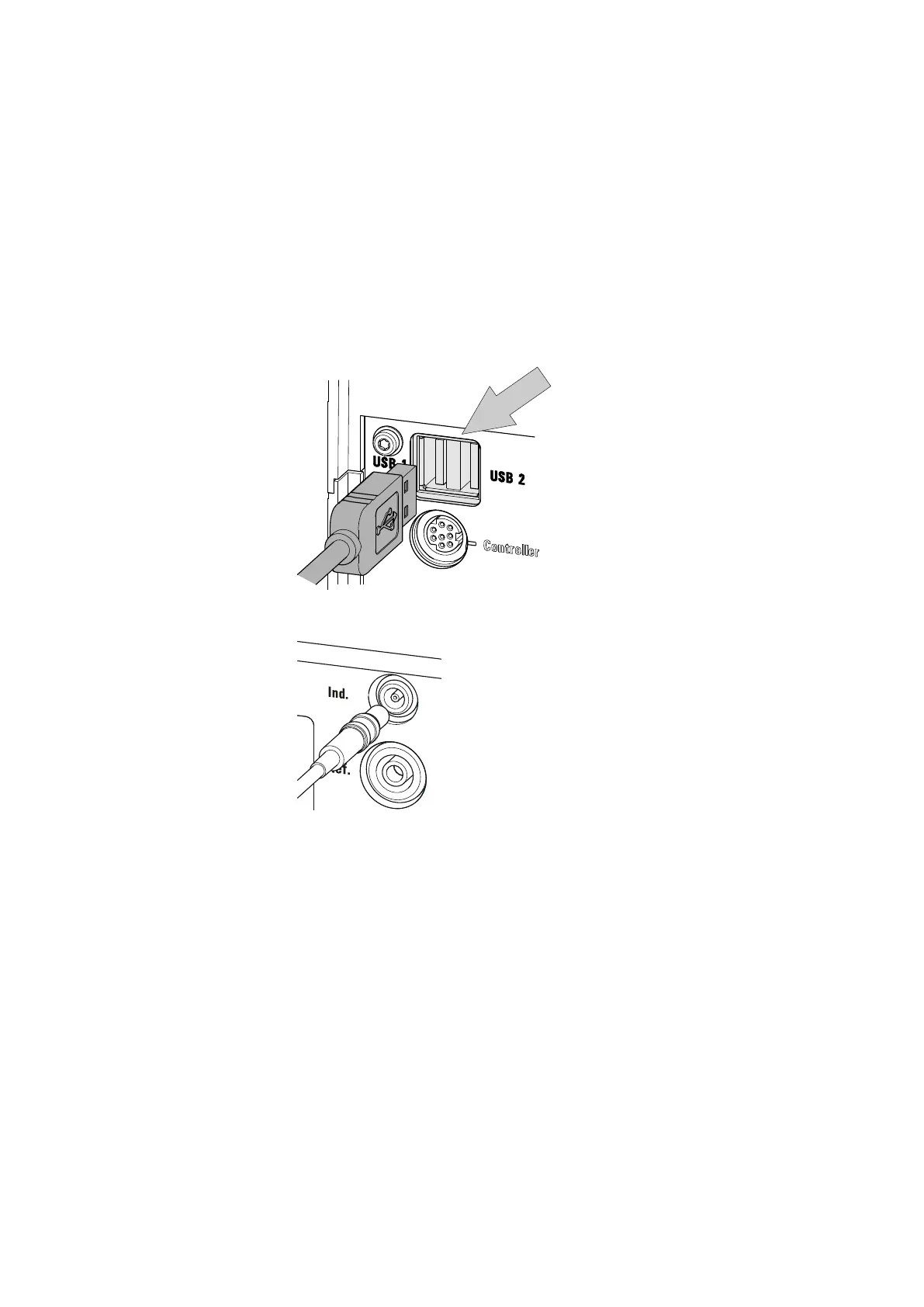

Figure 2
Power supply at the USB connector of a Titrando
Figure 3 Connecting the Optrode to a Titrando
