Metronix ARS 2302 User Manual

Mechanical installation Page 18
4.2 Mounting
The servo positioning controller ARS 2300 FS has attachment lugs on the top and the bottom of the
device. These are used to mount the servo positioning controller vertically to a control cabinet plate.
The lugs are part of the cooling body profile, thereby providing optimum heat transmission to the
control cabinet plate.
Please use M5 screws for the mounting of the servo positioning controller ARS 2302 FS,
ARS 2305 FS and ARS 2310 FS.
R5
R2,6
R2,6
M4 flush head stud
M4 flush head stud
R2,5
5 mm
24 mm
31,75 mm
39,5 mm
58,5 mm
63,5 mm
69 mm
9 mm
12 mm
15 mm
21 mm
28,9 mm
320,8 mm
328,9 mm
334,5 mm
ca. 1 mm

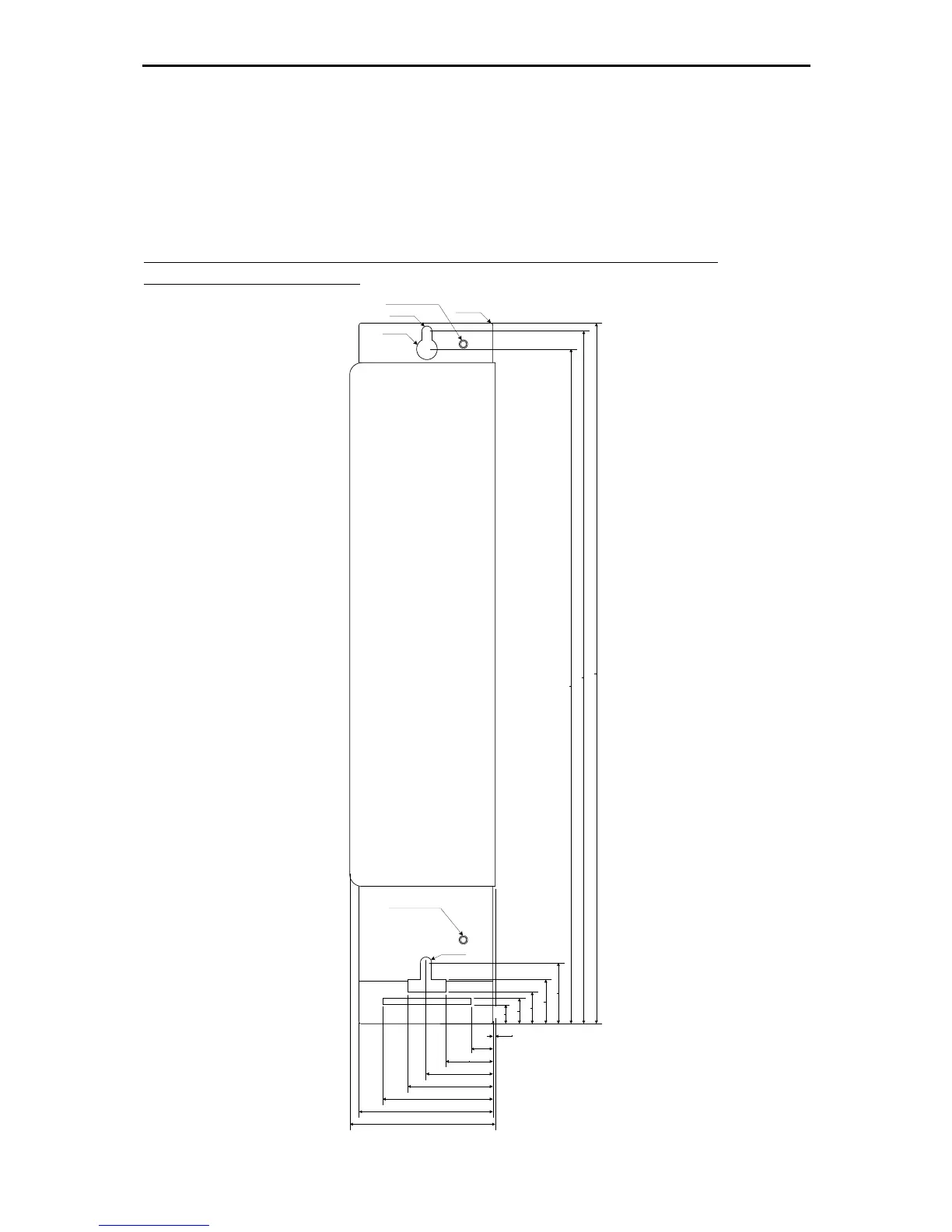

Figure 4: Servo positioning controller ARS 2302 FS, ARS 2305 FS and ARS 2310 FS:
Mounting plate
