Meyer Burger WHITE - Page 11

10

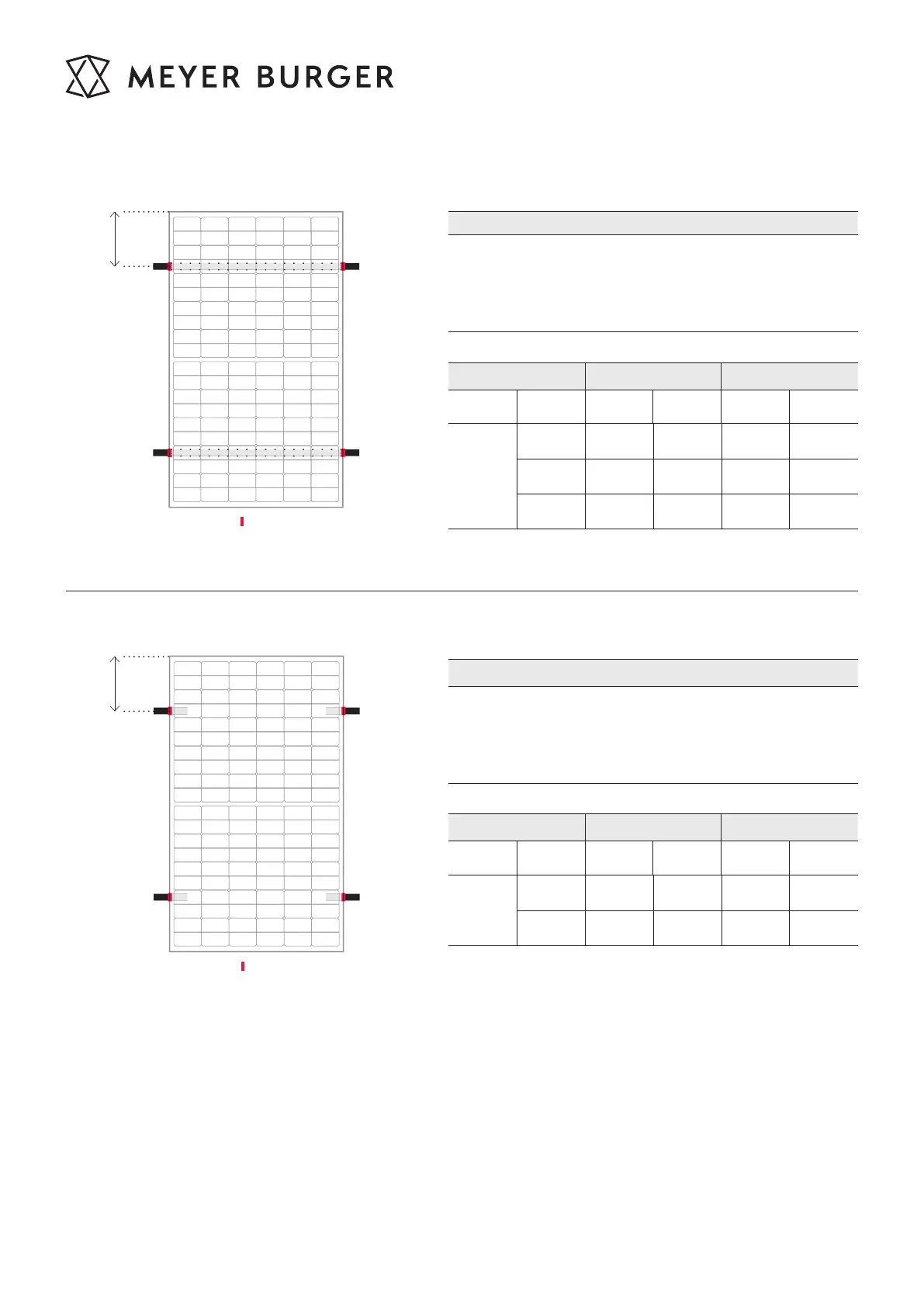

INSTALLATION TYPE CP1
Fasteningwith4moduleclampsonthelongmoduleside,
pointmountingwithcontinuoussubstructurerails
PERMISSIBLE LOADS (PRESSURE, SUCTION)
CP1 Design load Test load (1.5x safety)
Module L [mm]
Pressure
[Pa]
Suction
[Pa]
Pressure
[Pa]
Suction
[Pa]
WHITE,
BLACK,
GLASS
320 4000 2666 6000 4000
200-450 3600 1600 5400 2400
0-550 1600 1600 2400 2400
INSTALLATION TYPE CP1a
Fasteningwith4moduleclampsonthelongmoduleside,
pointmountingwithoutcontinuoussubstructurerails
PERMISSIBLE LOADS (PRESSURE, SUCTION)
CP1a Design load Test load (1.5x safety)
Module L [mm]
Pressure
[Pa]
Suction
[Pa]
Pressure
[Pa]
Suction
[Pa]
WHITE,
BLACK,
GLASS
200-450 3200 1600 4800 2400
0-550 1600 1600 2400 2400
= Clamp point
LL
= Clamp point
