Meyer Burger WHITE - Page 12

11

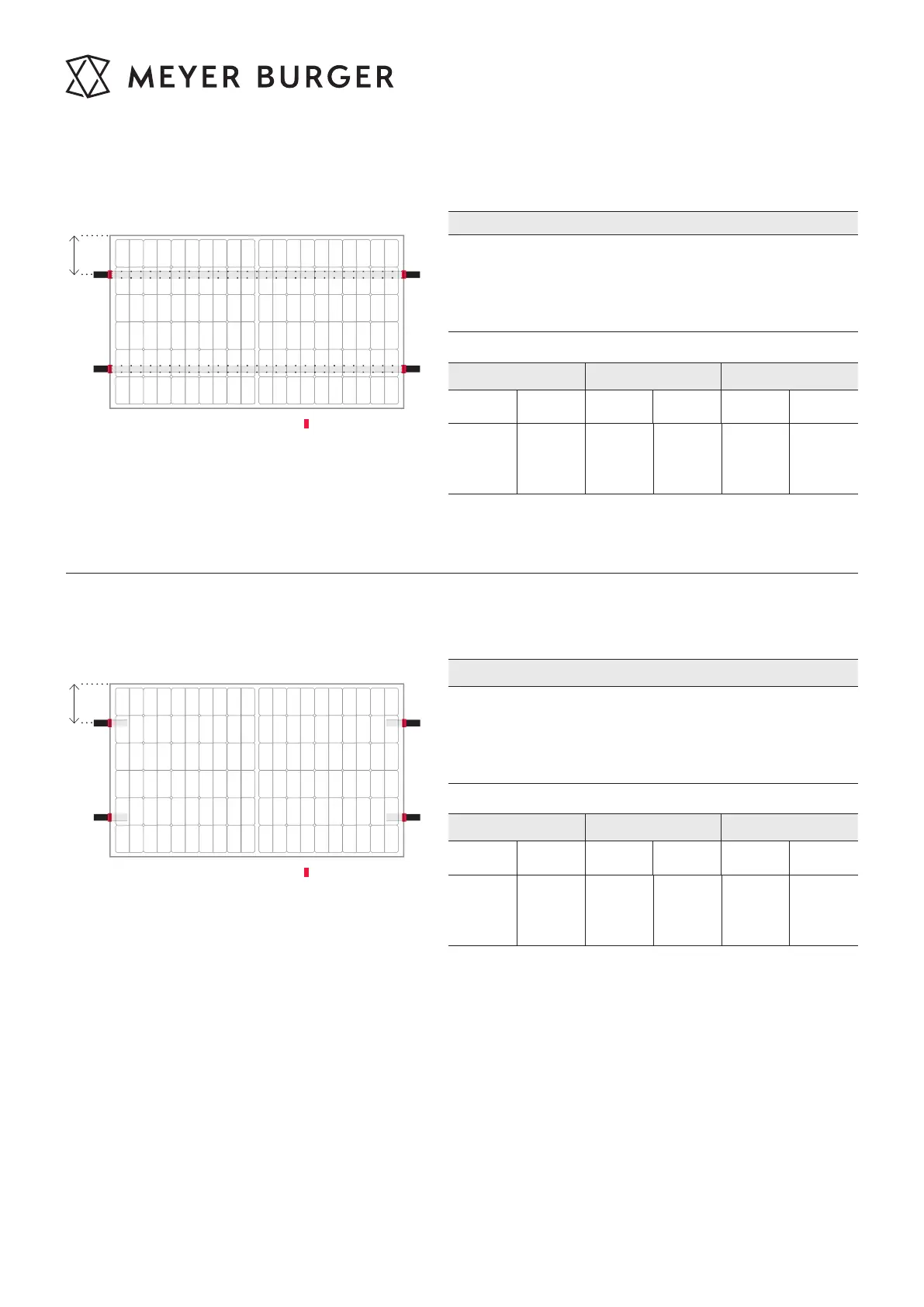

INSTALLATION TYPE CP2
Fasteningwith4moduleclampsontheshortmoduleside,
pointmountingwithcontinuoussubstructurerails
PERMISSIBLE LOADS (PRESSURE, SUCTION)
CP2 Design load Test load (1.5x safety)
Module
W
[mm]
Pressure
[Pa]
Suction
[Pa]
Pressure
[Pa]
Suction
[Pa]
WHITE,
BLACK,
GLASS
160-210 1600 1600 2400 2400
INSTALLATION TYPE CP2a
Fasteningwith4moduleclampsontheshortmoduleside,
pointmountingwithoutcontinuoussubstructurerails
PERMISSIBLE LOADS (PRESSURE, SUCTION)
CP2a Design load Test load (1.5x safety)
Module
W
[mm]
Pressure
[Pa]
Suction
[Pa]
Pressure
[Pa]
Suction
[Pa]
WHITE,
BLACK,
GLASS
0-300 1600 1600 2400 2400
W W
= Clamp point
= Clamp point
