Meyer Burger WHITE - Page 13

12

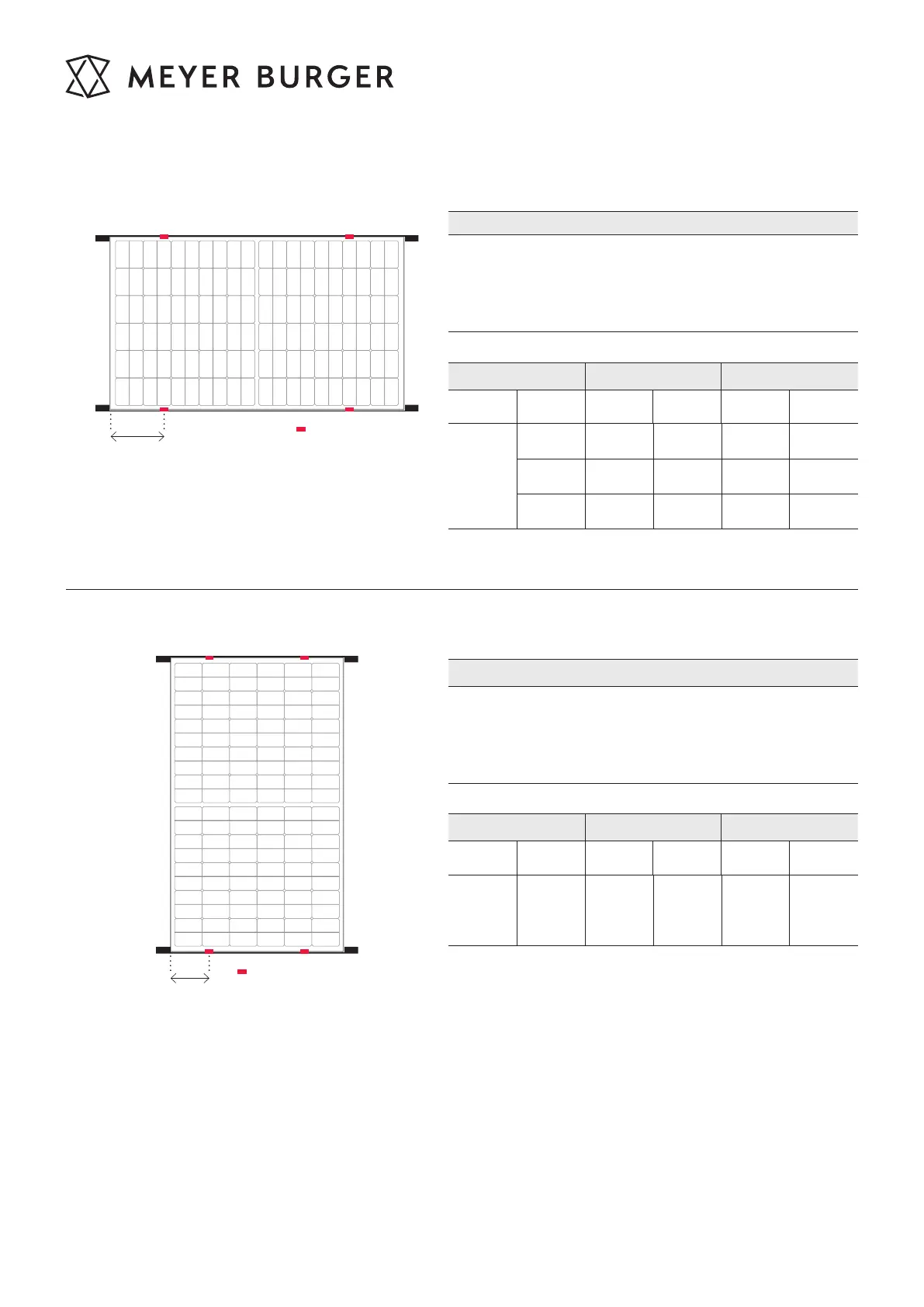

INSTALLATION TYPE CL1
Fasteningwith4moduleclampsonthelongmoduleside,
linemountingalongthelongmoduleside
PERMISSIBLE LOADS (PRESSURE, SUCTION)
CL1 Design load Test load (1.5x safety)
Module
L
[mm]
Pressure
[Pa]
Suction
[Pa]
Pressure
[Pa]
Suction
[Pa]
WHITE,
BLACK,
GLASS
320 3600 2666 5400 4000
200-450 3600 1600 5400 2400
0-550 1600 1600 2400 2400
INSTALLATION TYPE CL2
Fasteningwith4moduleclampsontheshortmoduleside,
linemountingalongtheshortmoduleside
PERMISSIBLE LOADS (PRESSURE, SUCTION)
CL2 Design load Test load (1.5x safety)
Module
W
[mm]
Pressure
[Pa]
Suction
[Pa]
Pressure
[Pa]
Suction
[Pa]
WHITE,
BLACK,
GLASS
0-300 1600 1600 2400 2400
L
W
= Clamp point
= Clamp point
