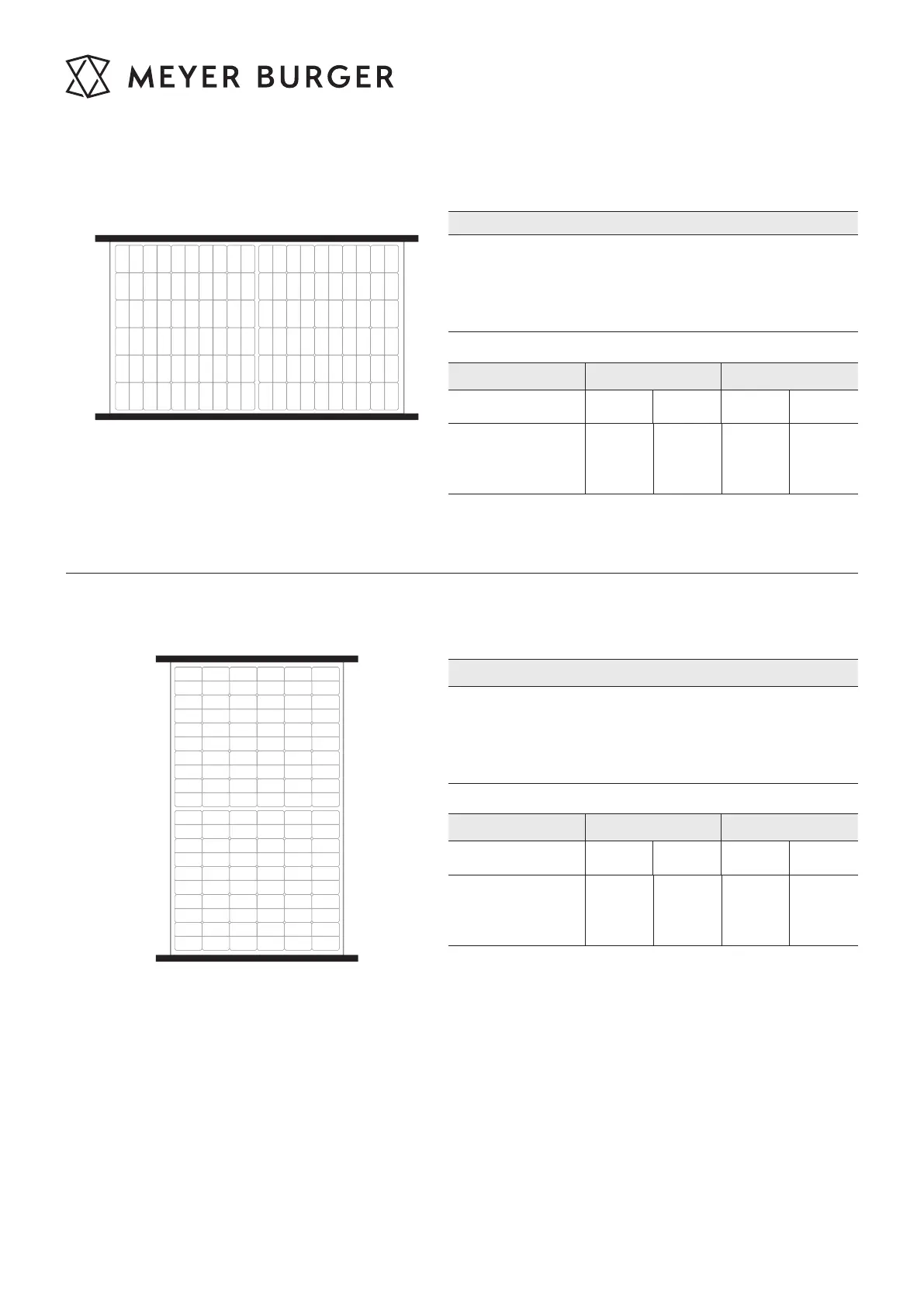

INSTALLATION TYPE IP1
Fasteningvialinemountingwithinsertprolerails
onthelongmoduleside
PERMISSIBLE LOADS (PRESSURE, SUCTION)
IP1 Design load Test load (1.5x safety)
Module
Pressure
[Pa]
Suction
[Pa]
Pressure
[Pa]
Suction
[Pa]
WHITE,
BLACK,
GLASS
3600 2666 5400 4000
INSTALLATION TYPE IP2
Fasteningvialinemountingwithinsertprolerails
ontheshortmoduleside
PERMISSIBLE LOADS (PRESSURE, SUCTION)
IP2 Design load Test load (1.5x safety)
Module
Pressure
[Pa]
Suction
[Pa]
Pressure
[Pa]
Suction
[Pa]
WHITE,
BLACK,
GLASS
1600 1600 2400 2400
