14

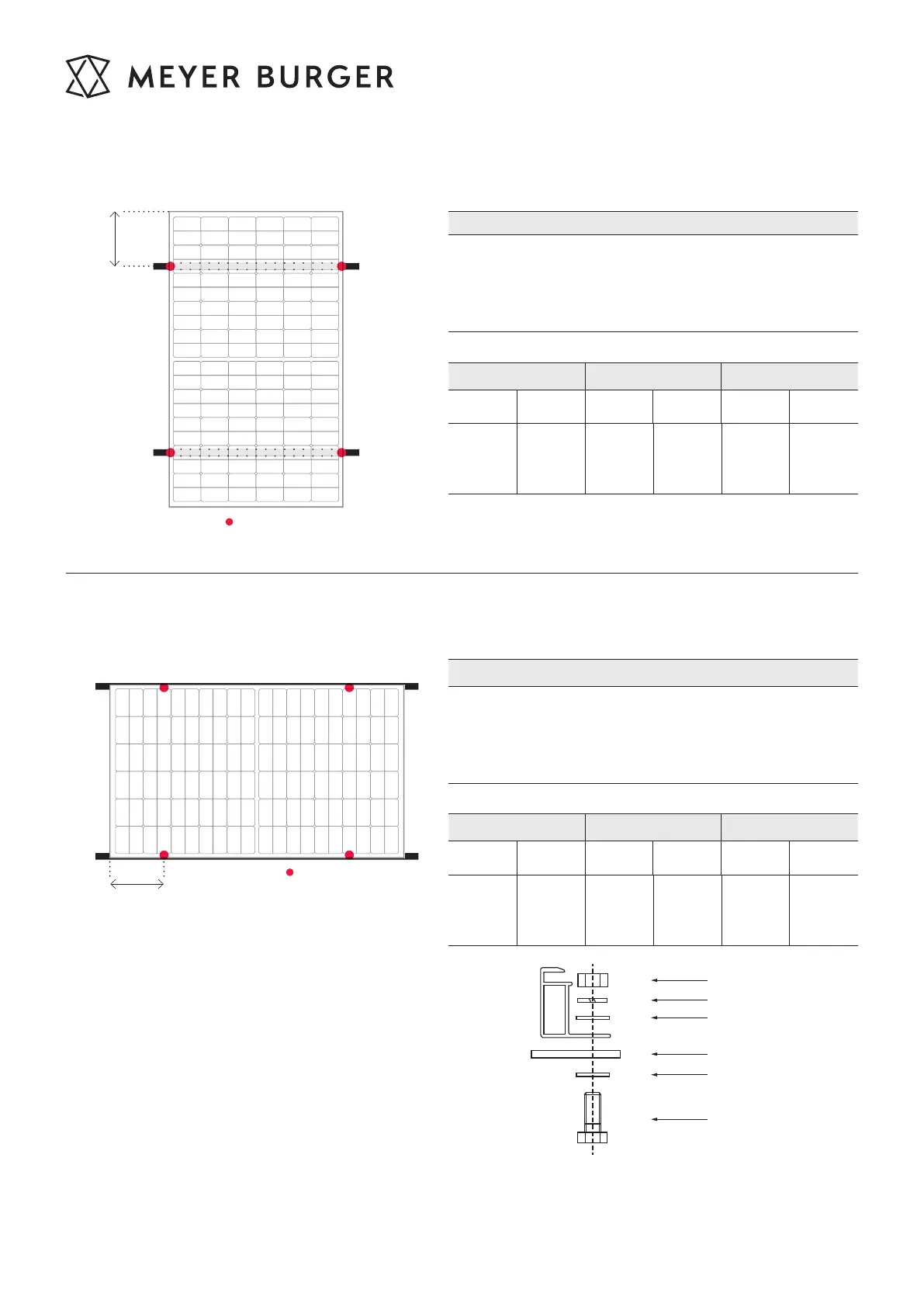

INSTALLATION TYPE MP1
Fasteningtothemountingpointsonthelongmoduleside,
pointmountingwithcontinuoussubstructurerails
PERMISSIBLE LOADS (PRESSURE, SUCTION)
MP1 Design load Test load (1.5x safety)
Module
L
[mm]
Pressure
[Pa]
Suction
[Pa]
Pressure
[Pa]
Suction
[Pa]
WHITE,
BLACK
320 4000 2666 6000 4000
INSTALLATION TYPE MP1a
Fasteningatthemountingpointsonthelongmoduleside,
linemountingalongthelongmoduleside
PERMISSIBLE LOADS (PRESSURE, SUCTION)
MP1a Design load Test load (1.5x safety)
Module
L
[mm]
Pressure
[Pa]
Suction
[Pa]
Pressure
[Pa]
Suction
[Pa]
WHITE,
BLACK
320 3600 1600 5400 2400
RecommendedmountingmethodatthemountingpointsoftheMP1andMP1ainstallationvariants
M8 nut
M8 bolt
Retaining ring
Washer
Washer
Mounting rail
L
L
= Mounting point
= Mounting point
