Meyer's VB280 - Highway Lighting & Wiring

M o d e l V B 2 8 0 51 | P a g e

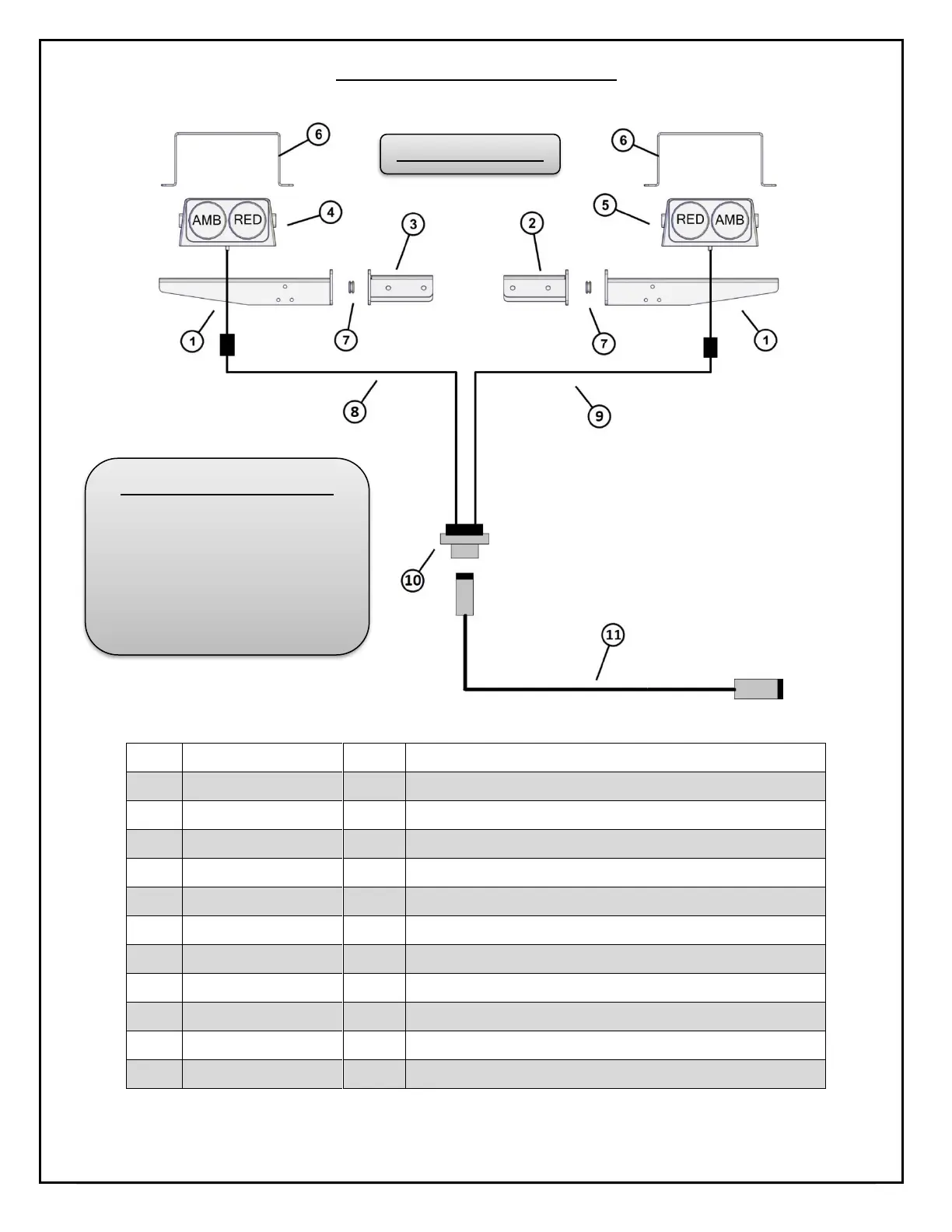

HIGHWAY LIGHTING & WIRING
KEY
PART NO.
QTY.
DESCRIPTION
1
E30534
2
LIGHT MOUNT BEAM, 19-1/2”L
2
E30531R
1
LIGHT BRACKET ADAPTER MOUNT, RH
3
E30531L
1
LIGHT BRACKET ADAPTER MOUNT, LH
4
318L-P
1
DUAL LIGHT w/ 4 PIN SQUARE PLUG, LH SIDE
5
318R-P
1
DUAL LIGHT w/ 4 PIN SQUARE PLUG, RH SIDE
6
E30538
2
LIGHT GUARD, STANDARD
7
E30314
6
GROMMET, RUBBER, 1/4” PT, 9307K71
8
E31112L
1
EXT. CABLE, 4-PIN to PIGTAIL, LH (MS95-4134-01)
9
E31112R
1
EXT. CABLE, 4-PIN to PIGTAIL, RH (MS95-4134-00)
10
E31113
1
SOCKET ASSEMBLY, 7-WAY SAE J560, 670-72A
11
E31114
1
CABLE, 7-WAY, 12’ STRAIGHT, 7MAB122MV
VIEWED FROM REAR
WIRE COLORS - FUNCTIONS
WHITE- GROUND
BROWN- TAIL / RUNNING LIGHTS
RED- STOP LAMPS
GREEN- RIGHT TURN & HAZARD
YELLOW- LEFT TURN & HAZARD
