Meyer Sound MP-4 User Manual

Self-Powered Concert Series
Service Manual
MP-2/4 Amplifier
Doc #: 05.033.040.01
Rev.: A
Date: 08/31/98
Page: 5 of 26
© 1998 Meyer Sound Laboratories, Inc. All rights reserved.
I. MP-2/4 Amplifier System Description:

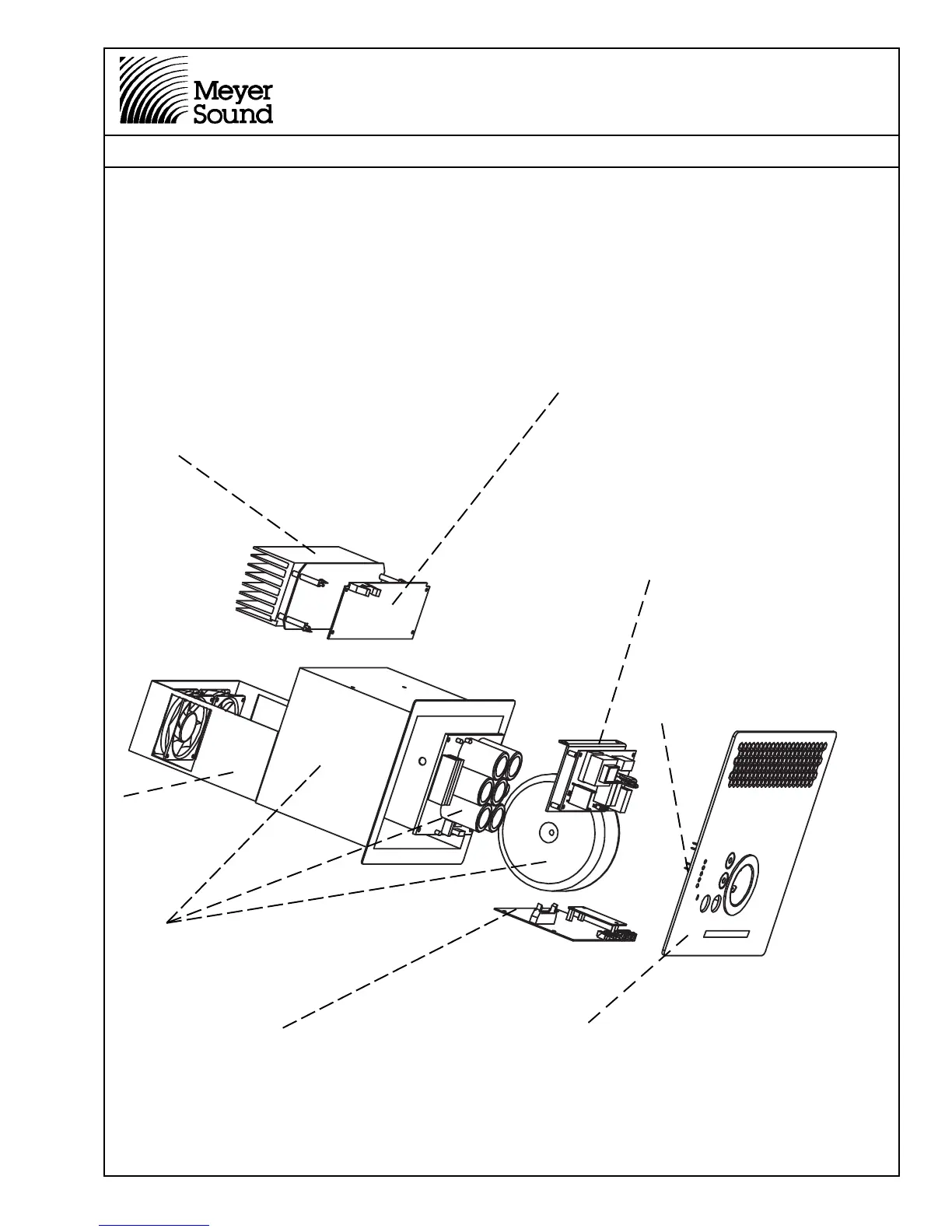

A) MP-2 Exploded View Diagram
The illustration below shows how all of the individual modules for the MP-2 amplifi-
ers interconnect. Please note that some modules are used in MP-4 amplifiers as well. For
current pricing please reference to the Meyer Sound Price List.
MP-2 Amplifier/Heatsink Module
40.033.013.01
MP-2 TPL Control Board
40.033.042.01 MSL-4
40.033.042.04 PSW-4
40.033.042.05 650-P/PSW-2
40.033.042.06 DS-2P
40.033.042.07 CQ-1
40.033.042.08 CQ-2
40.033.042.09 PSM-2
40.033.042.10 SB-1
40.033.042.15 750-P
MP-2/4 Power Supply
Includes: Chassis, Transformer
Circuit Board.
40.033.076.01
MP-2/4 A.C. Mains Board
40.033.022.02
MP-2/4 RMS Communications Board
(Optional) 40.033.071.01
MP-2 User Panel (RMS ready)
(Includes the MP-2/4 XLR Input Board)
40.033.068.01 (L6-20 connector)
40.033.068.10 (IEC-309 connector))
LED Label Kit
40.033.077.01
MP-2/4 Audio Input Board
40.033.058.01
(Not Shown in this view)
MP-2 Amplifier
Chassis
