Self-Powered Concert Series
Service Manual
MP-2/4 Amplifier
Doc #: 05.033.040.01
Rev.: A
Date: 08/31/98
Page: 6 of 26
© 1998 Meyer Sound Laboratories, Inc. All rights reserved.
MP-2/4 Power Supply
Includes: Chassis, Transformer
Circuit Board.
40.033.076.01
MP-2/4 A.C. Mains Board
40.033.022.02
MP-2/4 RMS Communications Board
(Optional) 40.033.071.01
MP-4 User Panel (RMS ready)
(Includes the MP-2/4 XLR Input Board)
40.033.068.02 (L6-20 connector)
40.033.068.11 (IEC-309 connector))
LED Label Kit
40.033.077.01
MP-4 Amplifier/Heatsink Module
Top and Bottom
40.033.013.02
MP-4 TPL Control Board
40.033.042.02 MTS-4 Bottom
40.033.042.03 MTS-4 Top
40.033.042.11 MSL-6 Bottom
40.033.042.12 MSL-6 Top
40.033.042.13 PSW-6 Bottom
40.033.042.14 PSW-6 Top
MP-2/4 Audio Input Board
40.033.058.01
(Not Shown in this view)

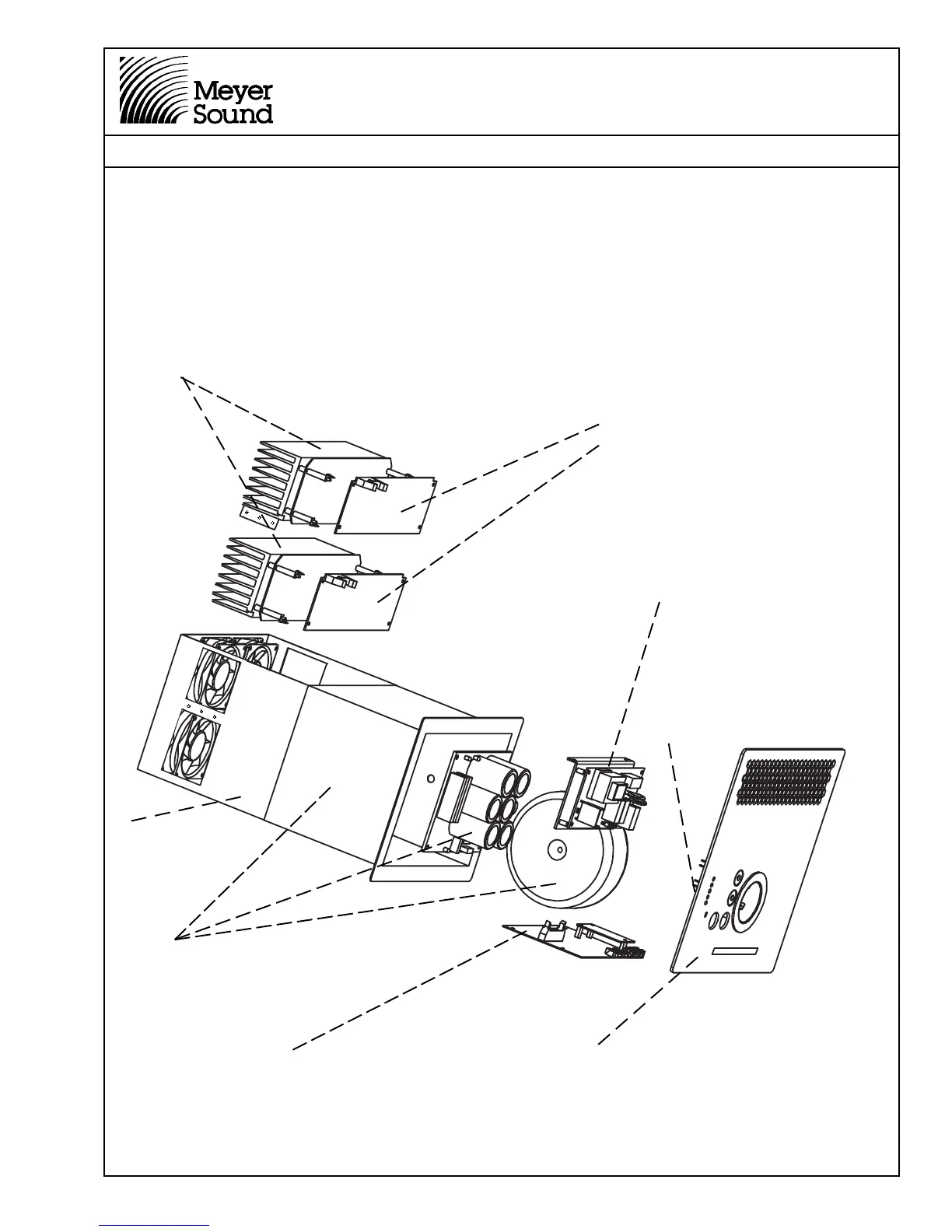

B) MP-4 Exploded View Diagram
The illustration below shows how all of the individual modules for the MP-4 amplifi-
ers interconnect. Please note that some modules are used in MP-2 amplifiers as well. For
current pricing please reference to the Meyer Sound Price List.
MP-4 Amplifier
Chassis
To Next Page
