Meyer SXI 720 Series - Front Grease Hoses

Meyer Manufacturing Corporation - 80 - PB-SXI
FRONT GREASE HOSES
KEY PART NUMBER QTY DESCRIPTION
1 155-02R7-35-1 2 1/8” x 35” Grease Hose Assembly
30-0001 2 1/4”-28 Straight Fitting
2 155-02R7-17-1 2 1/8” x 17” Grease Hose Assembly
30-0001 2 1/4”-28 Straight Fitting
3 155-02R7-28-1 3 1/8” x 28” Grease Hose Assembly
30-0001 3 1/4”-28 Straight Fitting
4 155-02R7-47-1 2 1/8” x 47” Grease Hose Assembly
30-0001 2 1/4”-28 Straight Fitting
1
3
3
2
4
2
4
3
1

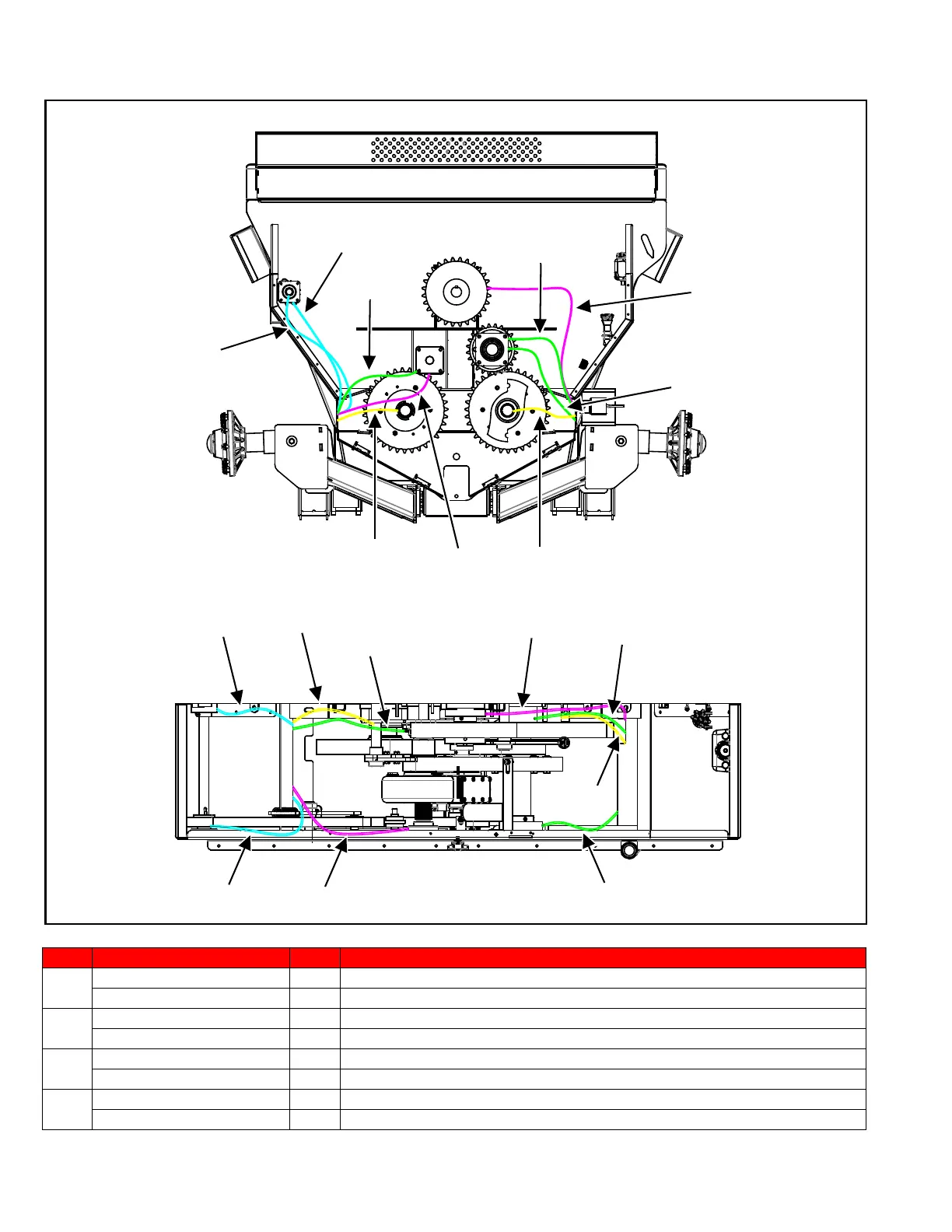

FRONT DRIVE SYSTEM
FRONT VIEW
FRONT DRIVE SYSTEM
TOP VIEW
1
2
3
4
3
2
3
4
1
