Meyer SXI 720 Series - Hydraulic Driven Auger Front Hoses

1-800-325-9103
PB-SXI - 99 - www.meyermfg.com

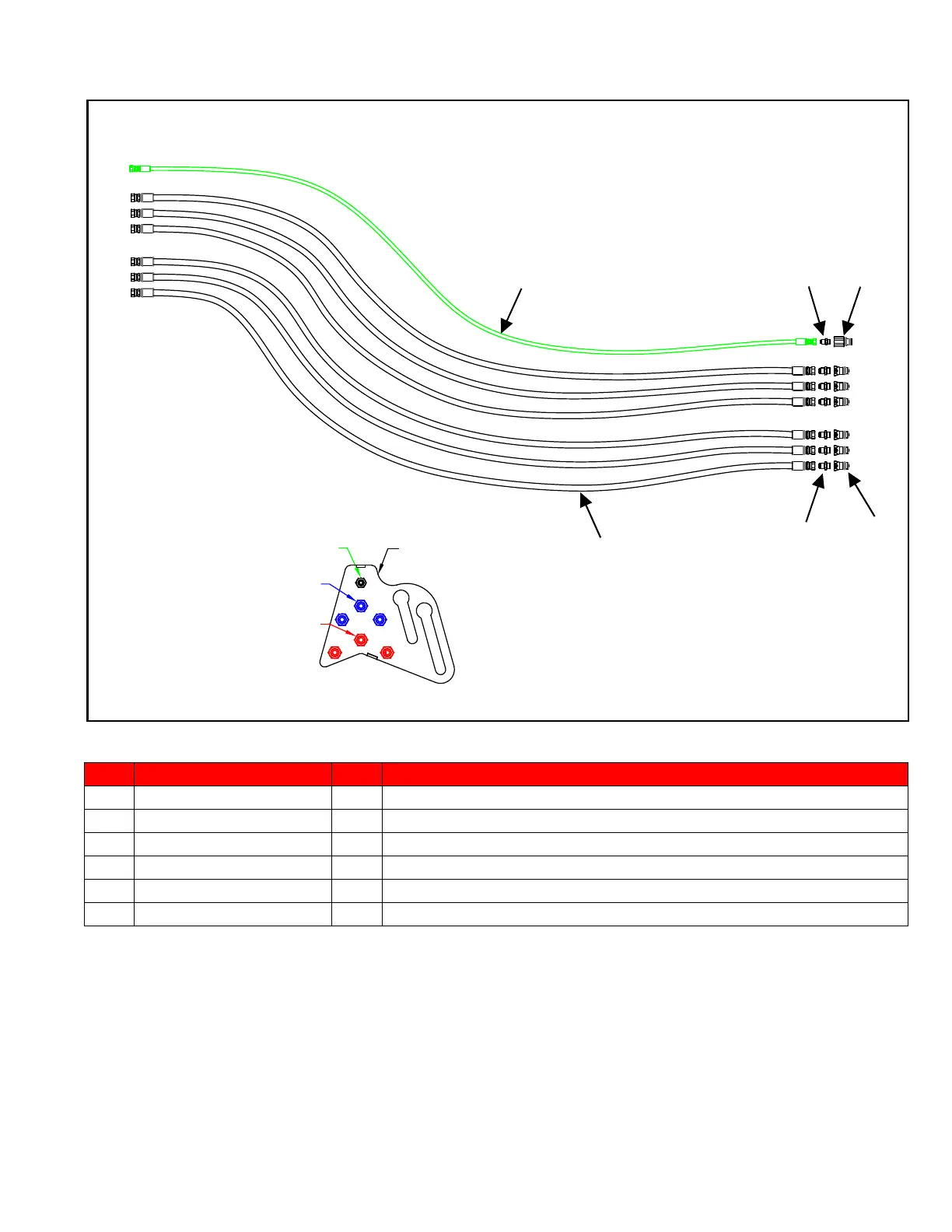

HYDRAULIC DRIVEN AUGER FRONT HOSES
KEY PART NUMBER QTY DESCRIPTION
1 155-6400-8-8 6 Straight Adapter
2 155-8010-15 6 Male Tip 1/2” Body Size
3 55-0346 1 3/8” Male Flat Face Quick Coupler
4 155-6400-06-06 1 Straight Adapter
5 155-08R17-89-1 3 1/2” x 89” Hose
6 155-04R17-90-1 1 1/4” x 90” Hose
Return
Pressure
Case Drain
Bulkhead
1
2
3
4
6
5
Pressure Inlet
Return Outlet
Case Drain
4
1
6
5
2
3
