MF WMF 1100S - Phoenix Mecano IMP10-S100;1

32

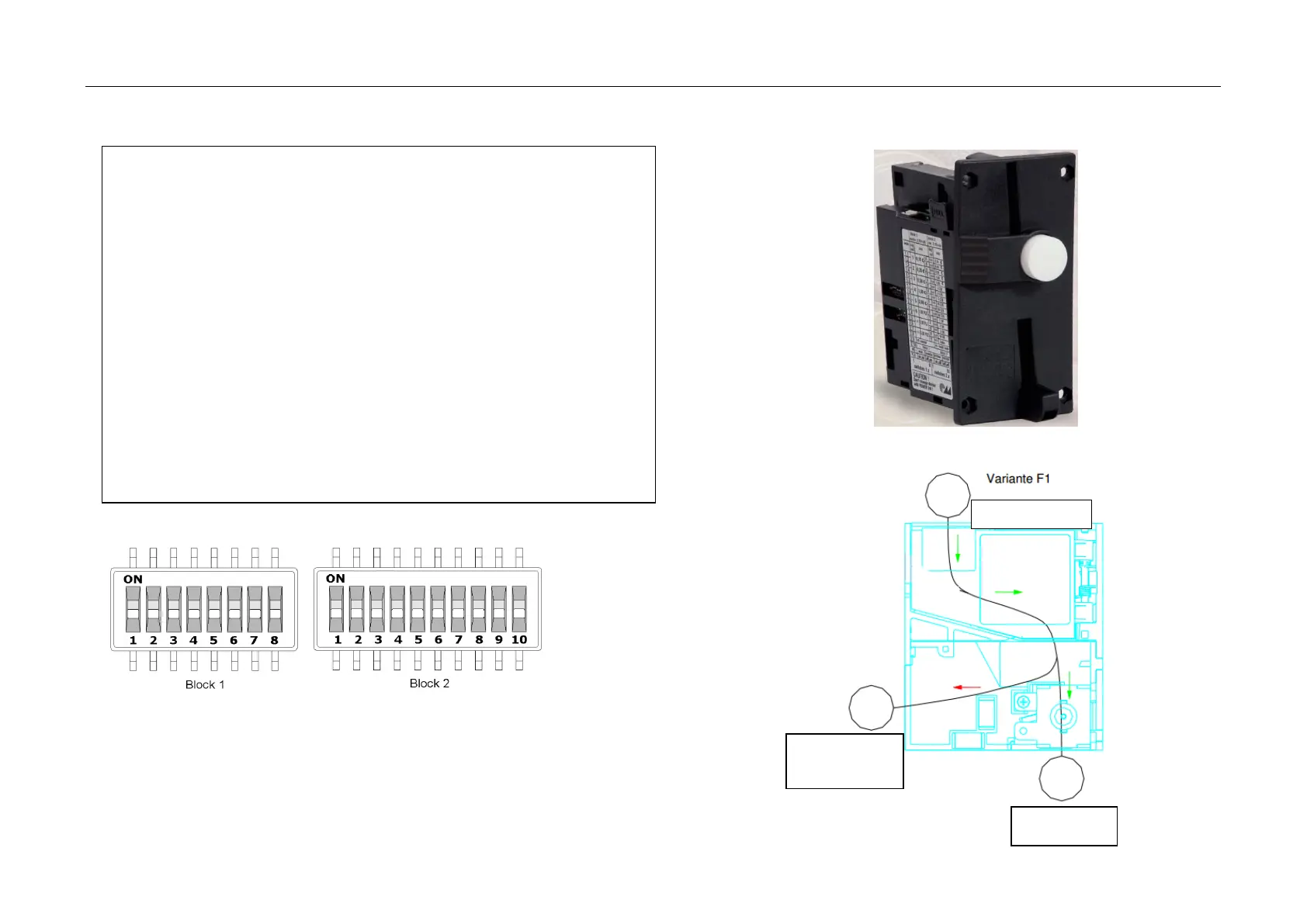

5.2 Phoenix Mecano IMP10-S100/1
Pic.: IMP10-S100/1
DIP switch
The coin checker has two DIP switch blocks. The switches 1.1 to 2.8
serve to release the coins (see chapter 5.2.2), the switch 2.9 sets the coin checker
into the teach mode (see chapter 5.2.4), the switch 2.10 sets the operating mode
(OFF = 8 or ON = 16 coin tubes – standard setting is OFF)
Technical data
Supply voltage: 8 … 28V
Power input (12V): Standby 30mA
Coin checking 400mA
Temperature range: -20°C … +70°C
Processing speed: 3 coins per second
Coin tubes: 8 or 16
Coin dimensions : Diameter 15 … 33mm
Thickness 1,5 … 3,3 mm
Pic.: IMP 10-S100/1
Interface: MDB
Price lines: 99
Coin entry
Not accepted
coin
Accepted coin
