5.2.2 Release / block coins and tokens
5.2.2.1 DIP switch settings in standard mode (switch 2.10 = OFF)
In standard mode the intake web (corresponds to the allowed deviation / tolerance) can be set for every single coin chute separately according to the criteria wide,
medium, narrow and blocked. Responsible for this are two corresponding switches each which can be set according to the following scheme.
The programming of the coffee machine decides, whether a coin chute will be blocked or in use!
Switch „left“
Switch „right“
Meaning
ON
ON
Wide insert web for coin n (n = 1-8)
OFF
ON
Medium insert web for coin n (n = 1-8)
ON
OFF
Narrow insert web for coin n (n = 1-8)
OFF
OFF
Coin blocked for coin n (n = 1-8)
For the standard coin checker the following coin tube allocation will be valid:
Coin chute 1
Token 17 ( WMF Token Ø 17,5mm)
coin tube 2
Token 22 ( WMF Token Ø 22 mm)
Coin chute 3
5 ct
Coin chute 4
10 ct
Coin chute 5
20 ct
Coin chute 6
50 ct
Coin chute 7
1 €
Coin chute 8
2 €

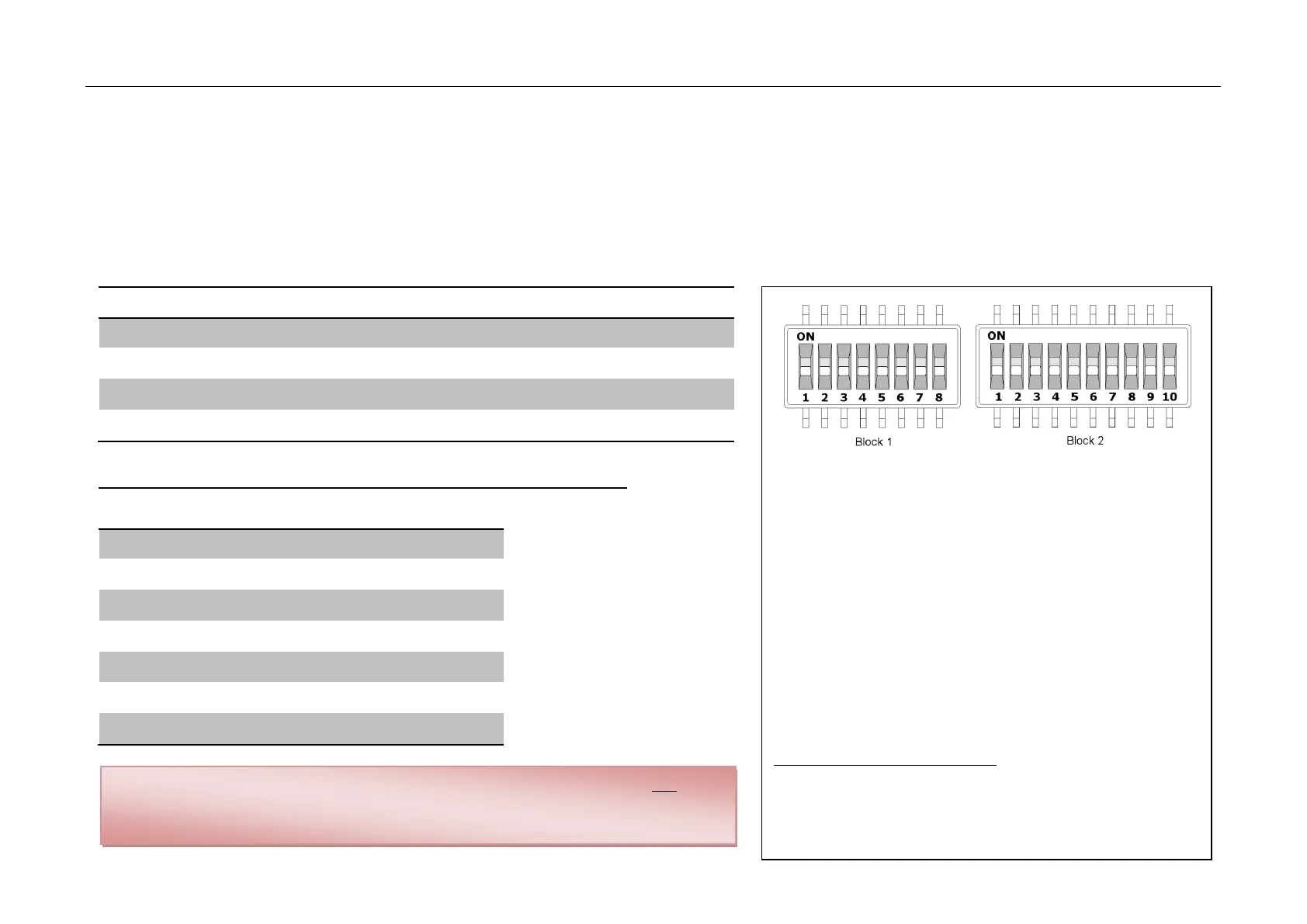

Allocation of the DIP switches:
1.1 + 1.2 coin chute 1
1.3 + 1.4 coin chute 2
1.5 + 1.6 coin chute 3
1.7 + 1.8 coin chute 4
2.1 + 2.2 coin chute 5
2.3 + 2.4 coin chute 6
2.5 + 2.6 coin chute 7
2.7 + 2.8 coin chute 8
Example for a Euro coin checker:
The switches 2.1 + 2.2 set the intake for the 1€ coin. By de-
fault the wide insert web is set.
Attention: The allocation of the coin chute in the machine software does not corre-
spond to the allocation on the label of the coin checker – see chapter 5.2.7
