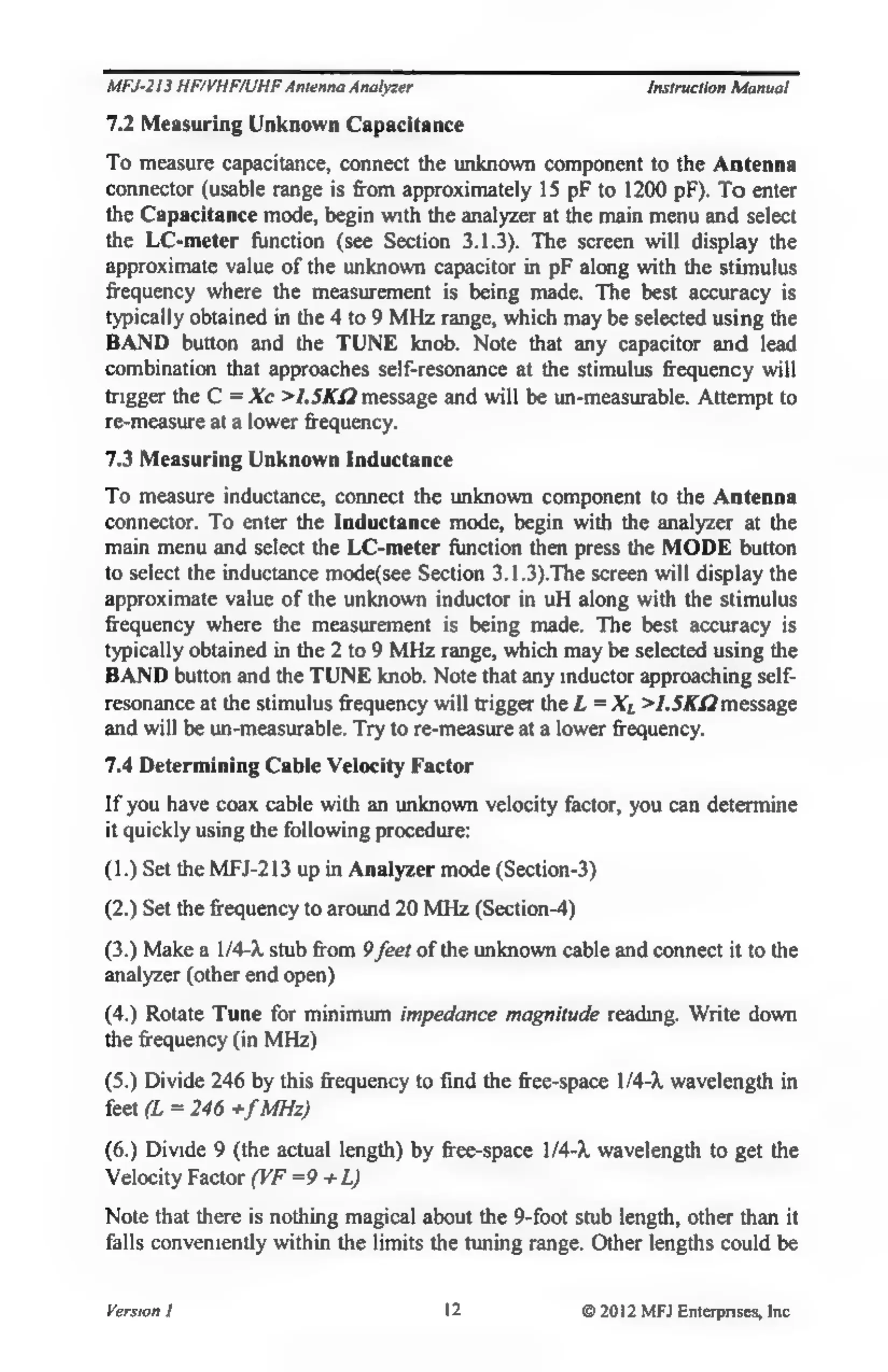

MFJ-213
HF/VHF/UHF
Antenna
Analyzer
Instruction
Manual
7.2
Measuring
Unknown
Capacitance
To
measure
capacitance,
connect
the
unknown
component
to
the
Antenna
connector
(usable
range
is
from
approximately
15
pF
to
1200
pF).
To
enter
the
Capacitance
mode,
begin
with
the
analyzer
at
the
main
menu
and
select
the
LC-meter
function
(see
Section
3.1.3).
The
screen
will
display
the
approximate
value
of
the
unknown
capacitor
in
pF
along
with
the
stimulus
frequency
where
the
measurement
is
being
made.
The
best
accuracy
is
typically
obtained
in
the
4
to
9
MHz
range,
which
may
be
selected
using
the
BAND
button
and
the
TUNE
knob.
Note
that
any
capacitor
and
lead
combination
that
approaches
self-resonance
at
the
stimulus
frequency
will
trigger
the
C
=
Xc
>1.5KQ
message
and
will
be
un-measurable.
Attempt
to
re-measure
at
a
lower
frequency.
7.3
Measuring
Unknown
Inductance
To
measure
inductance,
connect
the
unknown
component
to
the
Antenna
connector.
To
enter
the
Inductance
mode,
begin
with
the
analyzer
at
the
main
menu
and
select
the
LC-meter
function
then
press
the
MODE
button
to
select
the
inductance
mode(see
Section
3.1.3).The
screen
will
display
the
approximate
value
of
the
unknown
inductor
in
uH
along
with
the
stimulus
frequency
where
the
measurement
is
being
made.
The
best
accuracy
is
typically
obtained
in
the
2
to
9
MHz
range,
which
may
be
selected
using
the
BAND
button
and
the
TUNE
knob.
Note
that
any
inductor
approaching
self-
resonance
at
the
stimulus
frequency
will
trigger
the
L
=
X,
>1.5KQ
message
and
will
be
un-measurable.
Try
to
re-measure
at
a
lower
frequency.
7.4
Determining
Cable
Velocity
Factor
If
you
have
coax
cable
with
an
unknown
velocity
factor,
you
can
determine
it
quickly
using
the
following
procedure:
(1.)
Set
the
MFJ-213
up
in
Analyzer
mode
(Section-3)
(2.)
Set the
frequency
to
around
20
MHz
(Section-4)
(3.)
Make
a
1/4-A
stub
from
9
feet
of
the
unknown
cable
and
connect
it
to
the
analyzer
(other
end
open)
(4.)
Rotate
Tune
for
minimum
impedance
magnitude
reading.
Write
down
the
frequency
(in
MHz)
(5.)
Divide
246
by
this
frequency
to
find
the
free-space
1/4-A
wavelength
in
feet
(L
=
246
+f
MHz)
(6.)
Divide
9
(the
actual
length)
by
free-space
1/4-
wavelength
to
get
the
Velocity
Factor
(VF
=9
+L)
Note
that
there
is
nothing
magical
about
the
9-foot
stub
length,
other
than
it
falls
conveniently
within
the
limits
the
tuning
range.
Other
lengths
could
be
